STB 50 Al/Cu screw terminal block 87310 SIMBLOCK blue 81001003

local index:
TES039SIME
Catalog No:
81001003
EAN code:
5907813233081
Manufacturer: SIMET
Length [mm]: 70
Color: Blue
Number of poles: 1
Price:
4,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 168 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

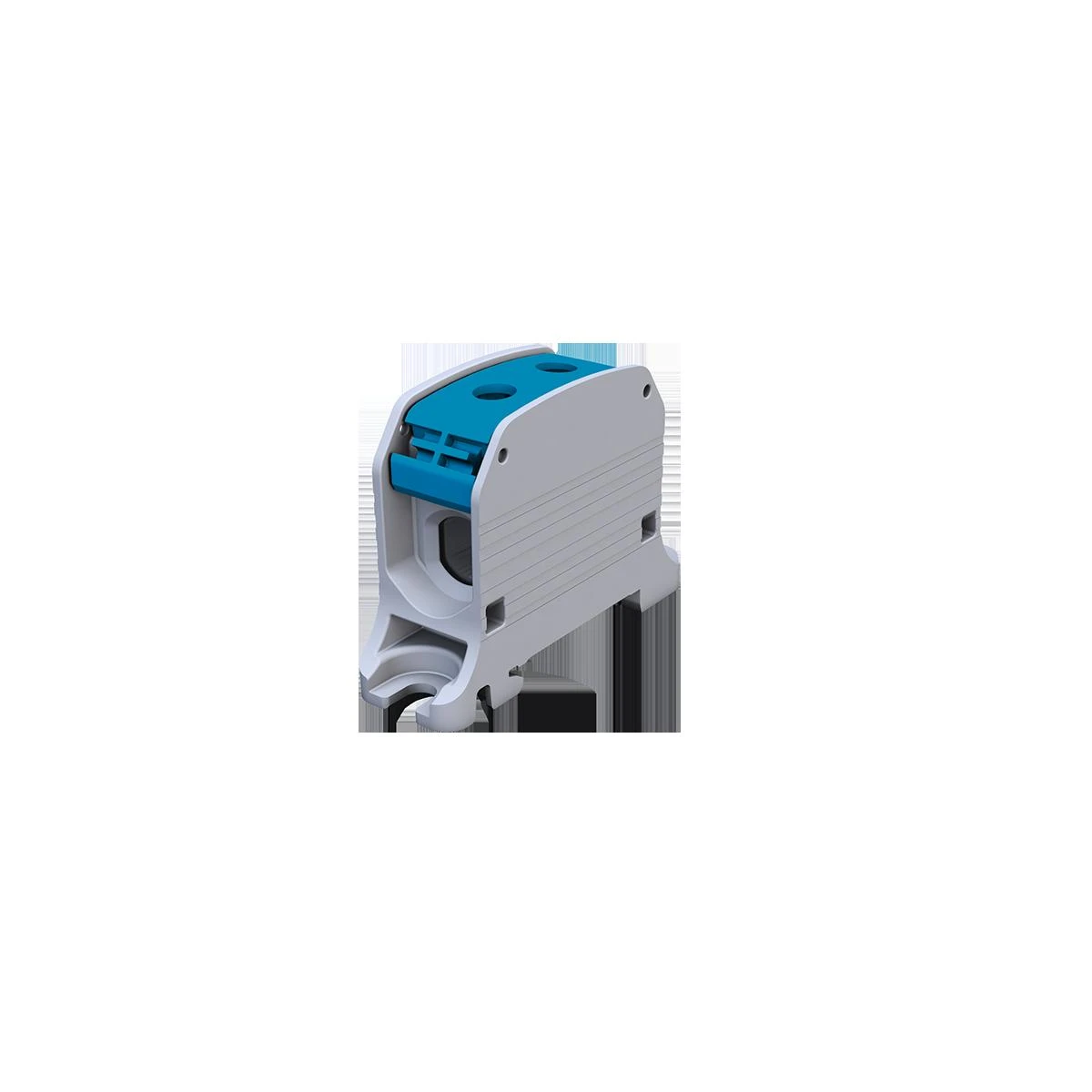

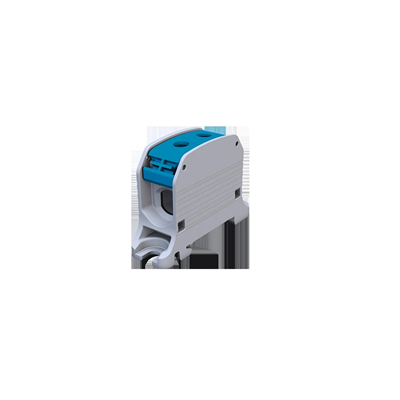

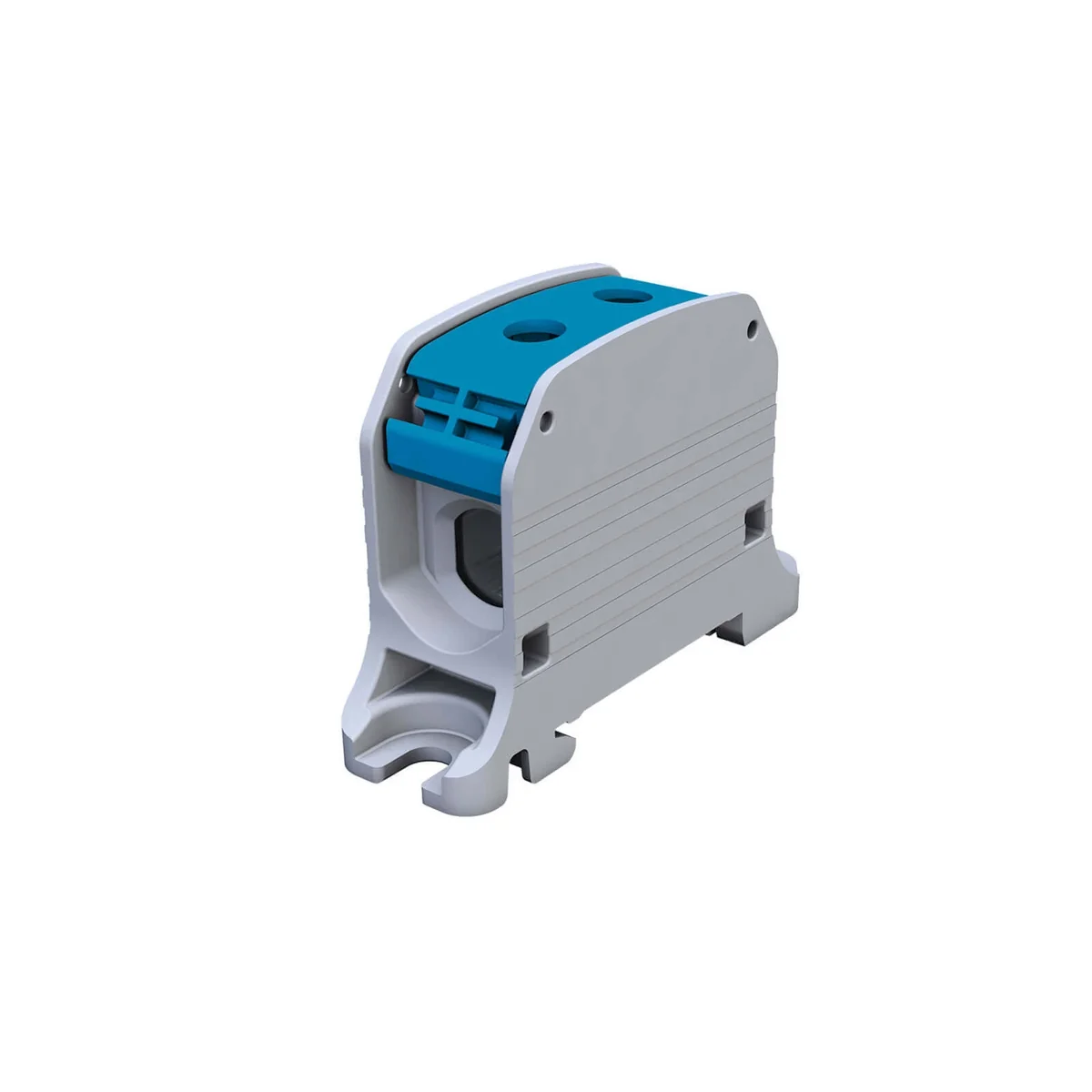

STB 50 Al/Cu screw terminal block 87310 SIMBLOCK from the manufacturer Simet. The product catalog number is 81001003.

  • Rated voltage [V]: 1000 AC/DC.
  • Rated current Cu [A]: 150.
  • Rated current Al [A]: 150.
  • Entry (wire) [mm²]: 2 x (6 -50).
  • Entry (cord with ferrule) [mm²]: 2 x (4 -35).
  • Mounting: TS 35 rail / mounting plate.



SERIES DESCRIPTION

STB series of aluminum threaded connectors they are distinguished by a wide range of applications - they are used in industrial equipment, automation, wind turbines, solar technology and electrotechnical switchboards. Such high functionality provides significant advantages in wire connection technology. All STB series connectors are safe for the installer. STB threaded connectors have aluminum clamps. Thanks to the special coating, these terminals are not only suitable for aluminum conductors, but also for copper conductors.

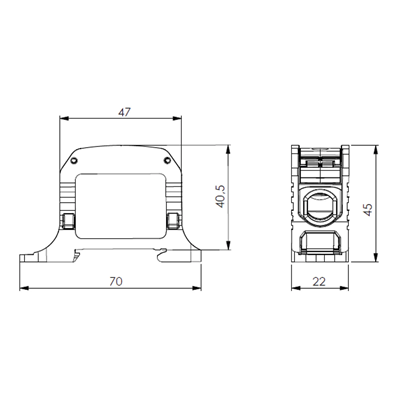

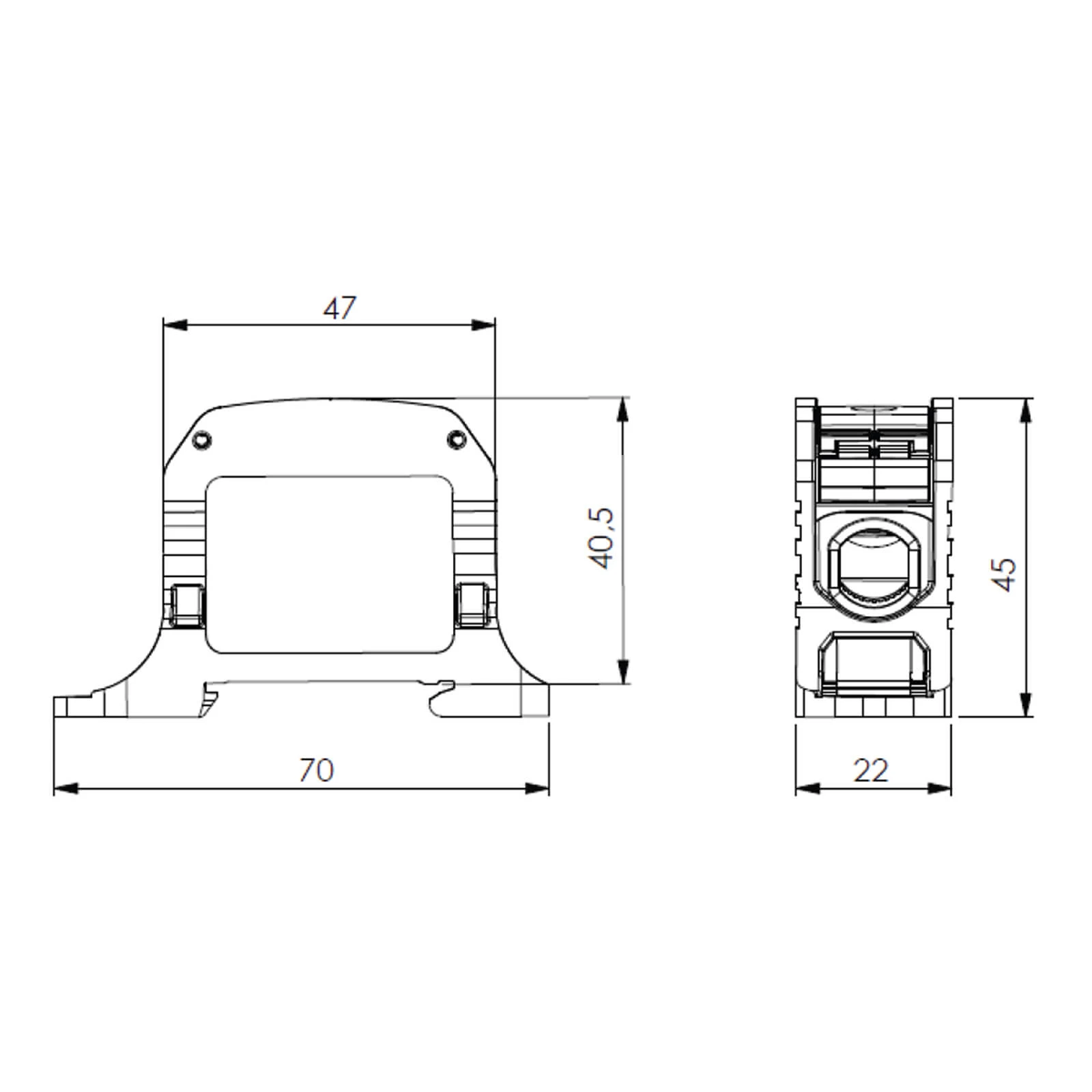

Technical data

  • Length [mm]
    70
  • Number of poles
    1
  • Rated current [A]
    150
  • Height [mm]
    45
  • PKWIU
    27.33.13.0
  • Color
    Blue
  • Rated voltage [V]
    1000
  • Width [mm]
    22
  • cross section [mm²]
    2 x 50
