STB 300 Al/Cu screw terminal block 87910 SIMBLOCK gray 81301002

local index:
TES051SIME
Catalog No:
81301002
EAN code:
5907813232831
Manufacturer: SIMET
Length [mm]: 118
Color: Gray
Number of poles: 1
Price:
29,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 36 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

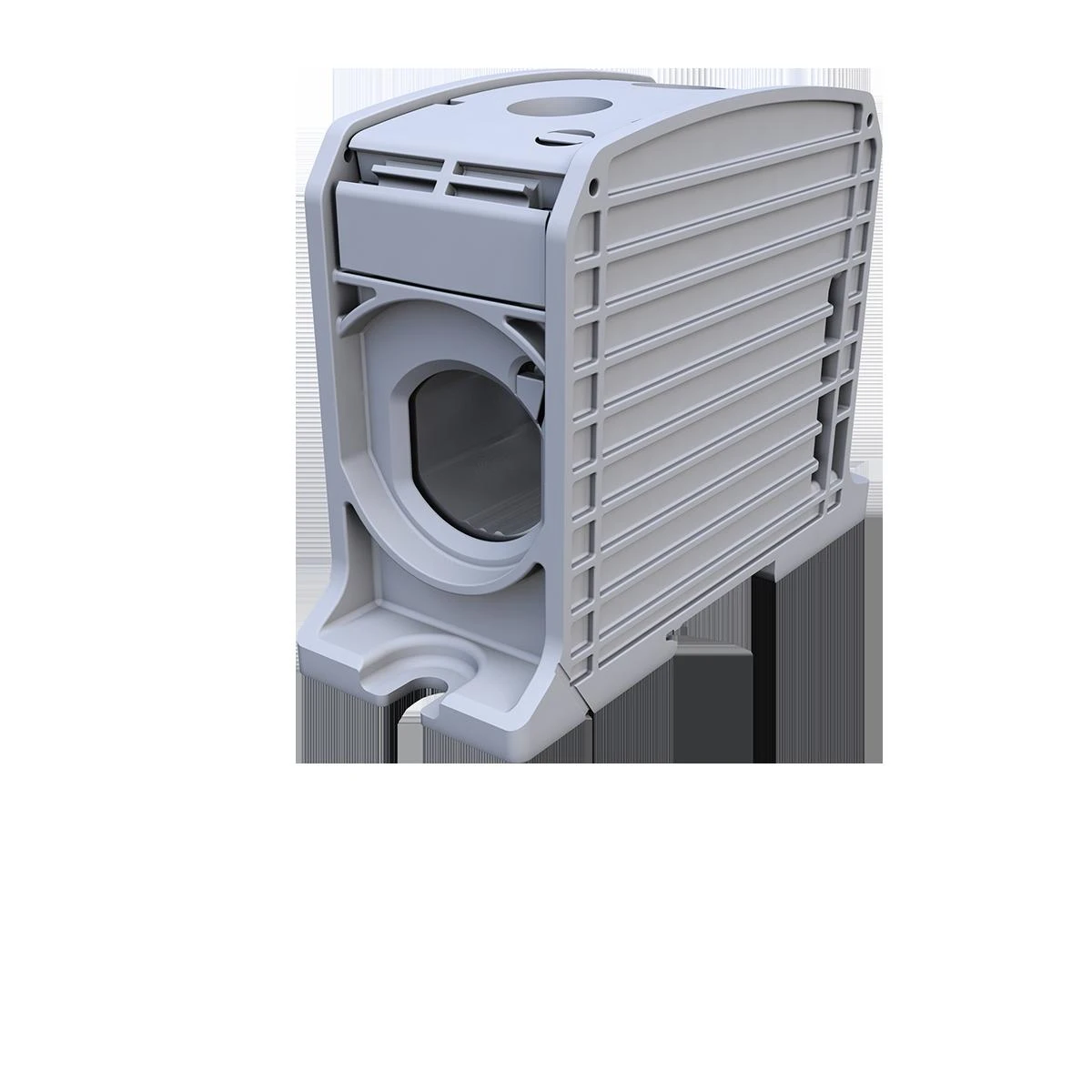

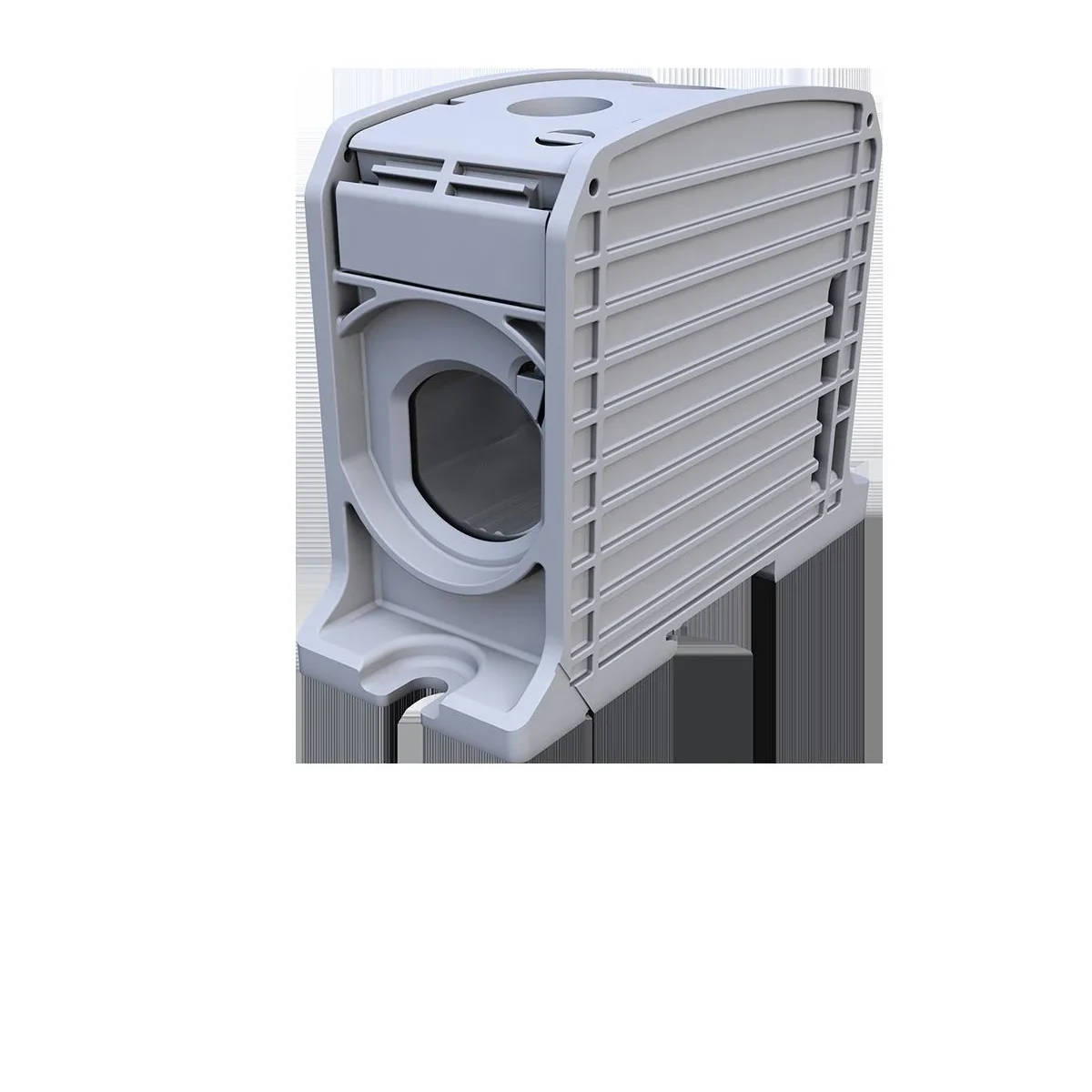

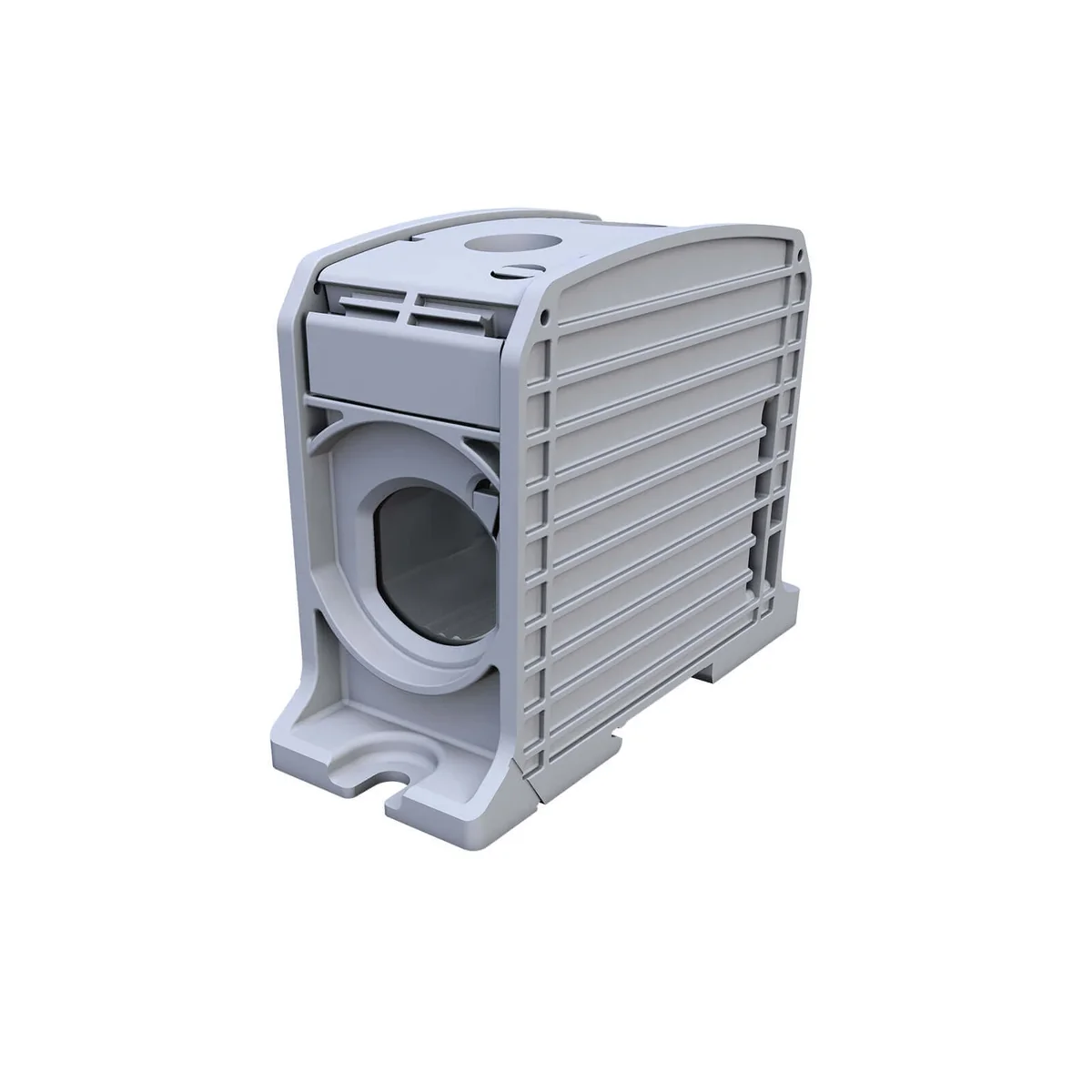

STB 300 Al/Cu 87910 SIMBLOCK threaded rail connector from the manufacturer Simet. The product catalog number is 81301002.

  • Rated voltage [V]: 1000 AC/DC.
  • Rated current Cu [A]: 520.
  • Input (wire) [mm²]: 2 x (150 - 300).
  • Entry (cord with sleeve) [mm²]: 2 x (120 - 240).
  • Mounting: TS 35 rail / mounting plate.< /li>
  • Measuring connector (wire) [mm²]: 1 x (1.5 - 10).
  • Measuring connector (cord with ferrule) [mm²]: 1 x (1, 5 - 6).
  • The connector has an additional space for a measuring connector. A dedicated OSTB 300 anti-dust screen enables trouble-free access to the measuring connector.



SERIES DESCRIPTION

The STB series of aluminum threaded connectors is distinguished by a wide range of applications - they are used in industrial equipment, automation, wind turbines, solar technology and electrotechnical switchboards. Such high functionality provides significant advantages in wire connection technology. All STB series connectors are safe for the installer. STB threaded connectors have aluminum clamps. Thanks to the special coating, these terminals are not only suitable for aluminum conductors, but also for copper conductors.

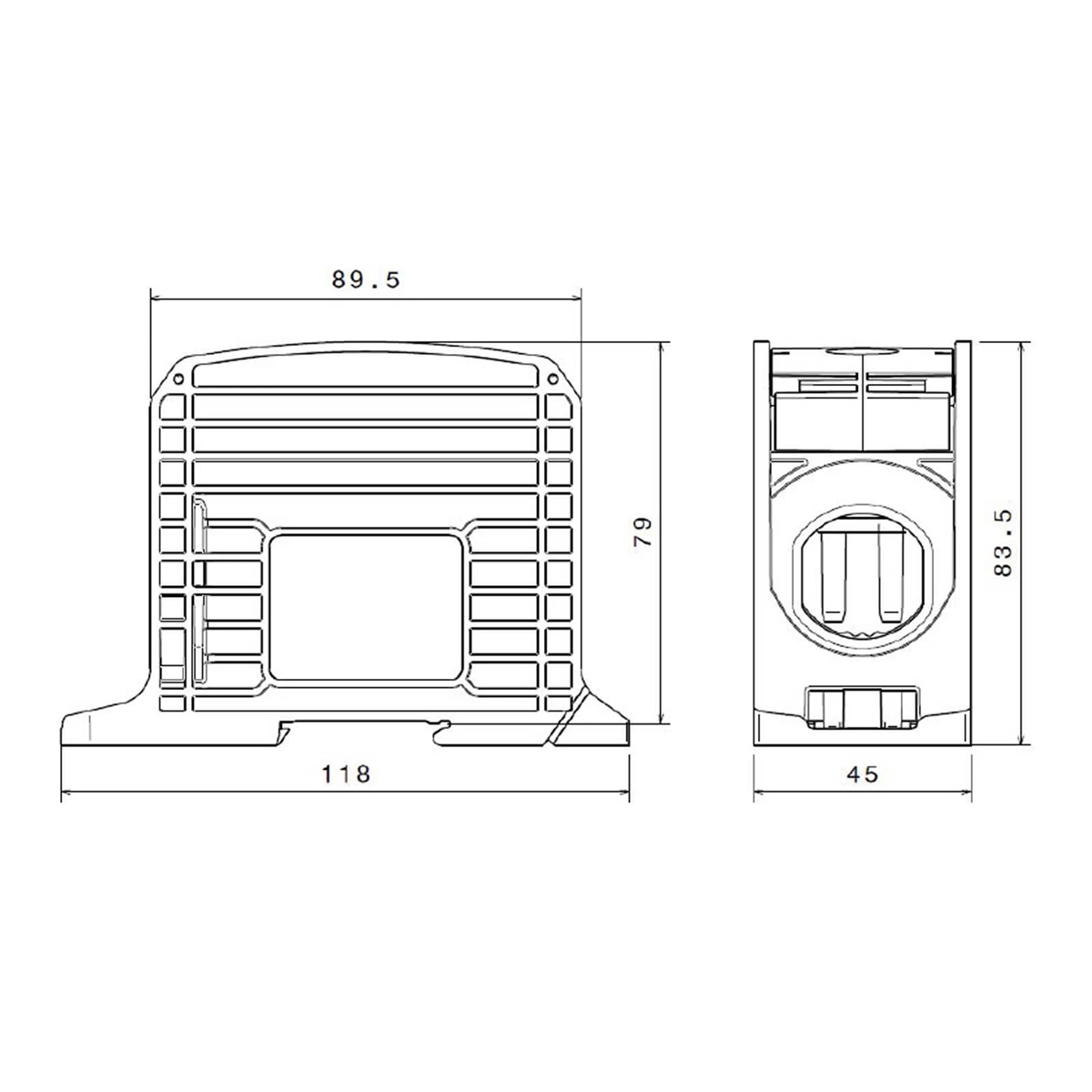

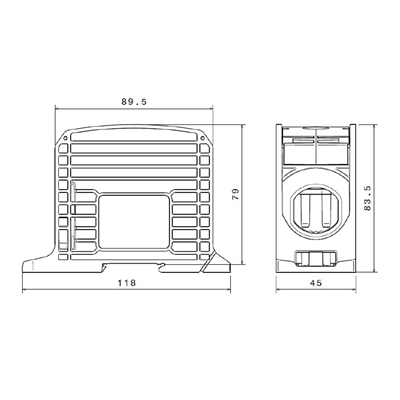

Technical data

  • Length [mm]
    118
  • Number of poles
    1
  • Rated current [A]
    520
  • Height [mm]
    83.5
  • PKWIU
    27.33.13.0
  • Color
    Gray
  • Rated voltage [V]
    1000
  • Width [mm]
    45
  • cross section [mm²]
    2 x 300
