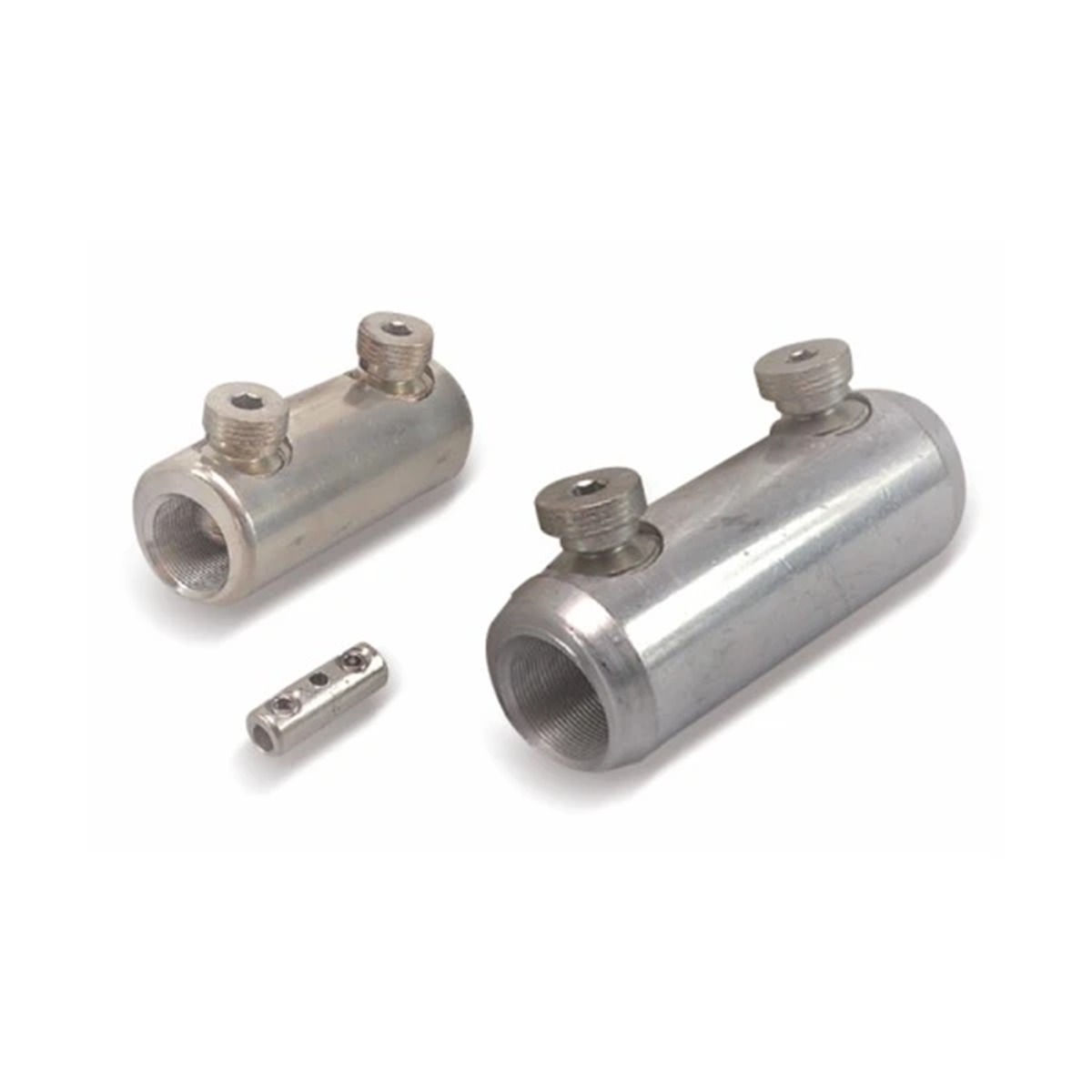

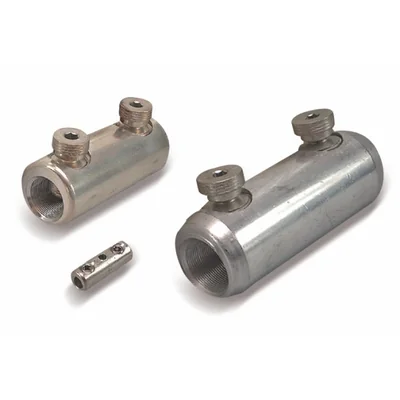

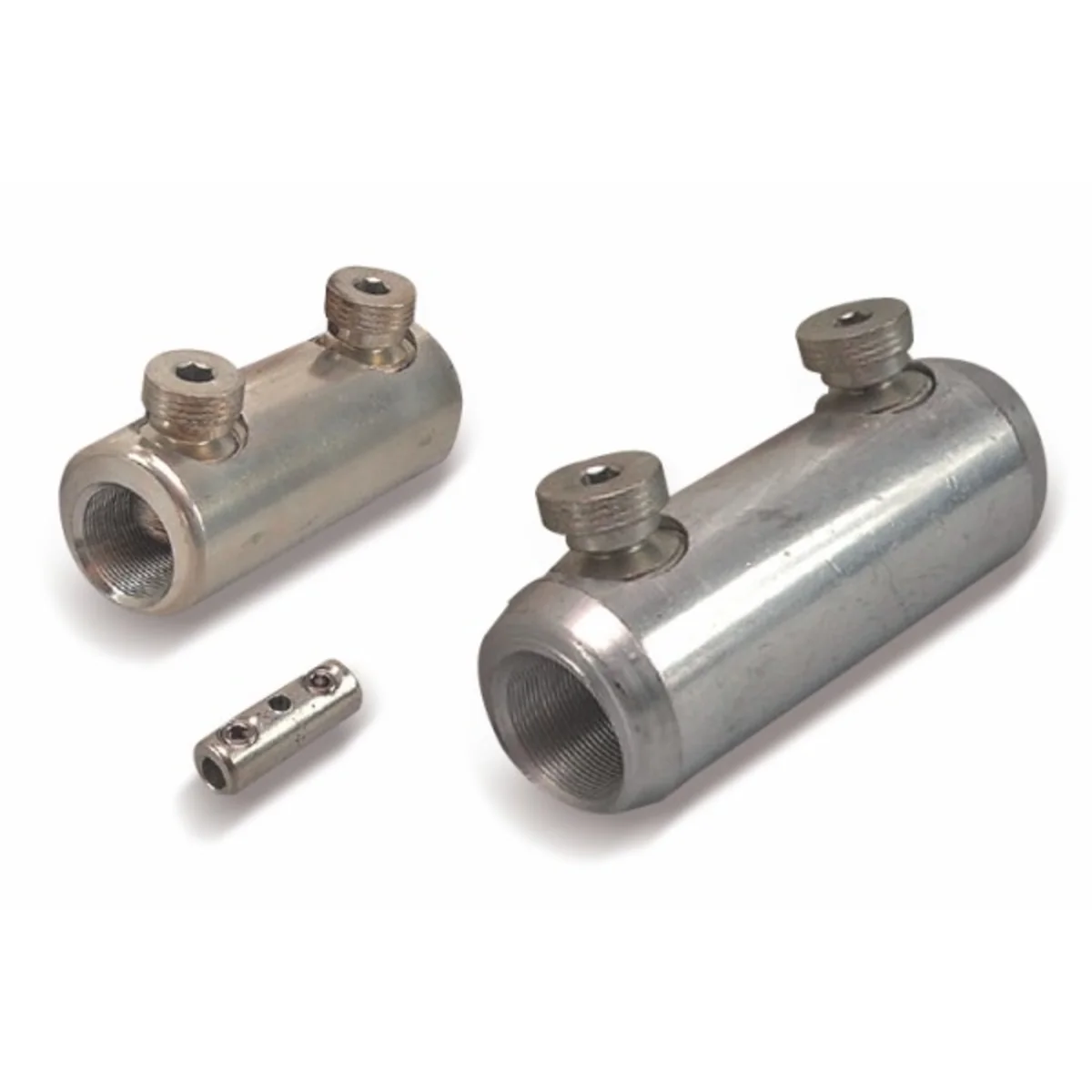

SPSR-16-95-SN aluminum screw terminal block (for 16-50mm2 RE, 16-95mm2 RM, 50-95mm2 SE, 35-75mm2 SM) SPSR-16-95SN

local index:
TEG041BORP
Catalog No:
SPSR-16-95SN
EAN code:
5901924535980
Manufacturer: TRYTYT
Length [mm]: 55
Insulation: NO
Material: Aluminum
Price:
20,79 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Screw cable connectors are offered in two variants with regular or shear bolts. Connectors made of copper or aluminum enable connecting cable cores where it is necessary to connect wires, e.g. in a repair joint with a screw clamp. In contrast to press connections, it is not required to have a manual or hydraulic press to permanently terminate the strand. Only an Allen key is required to make the connection. The use of pipe connectors increases the safety of the connection and its durability. It is important to remember that this type of connection cannot be mechanically loaded.

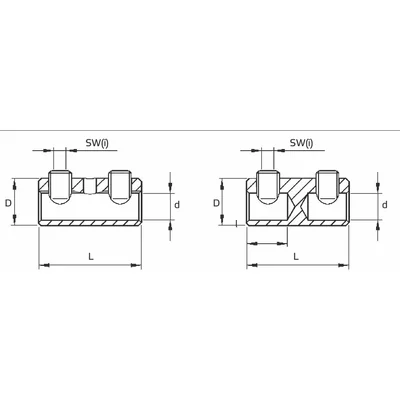

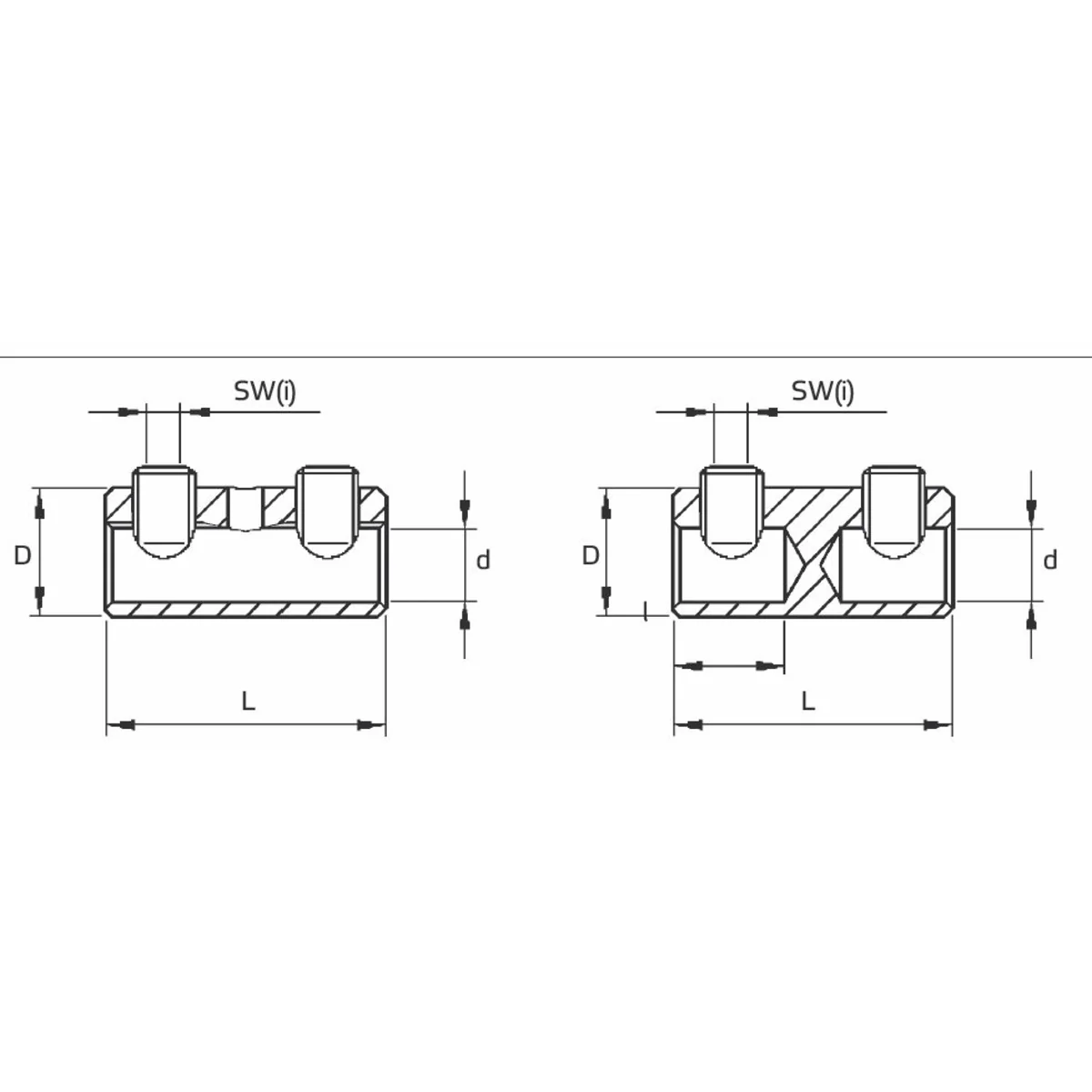

Technical data

  • Length [mm]
    55
  • Material
    Aluminum
  • Outer diameter [mm]
    25
  • Coverage
    Tin plated
  • Insulation
    NO
  • Inner diameter [mm]
    14.4
  • Number of bolts/screws
    2
  • PKWIU
    27.33.13.0
