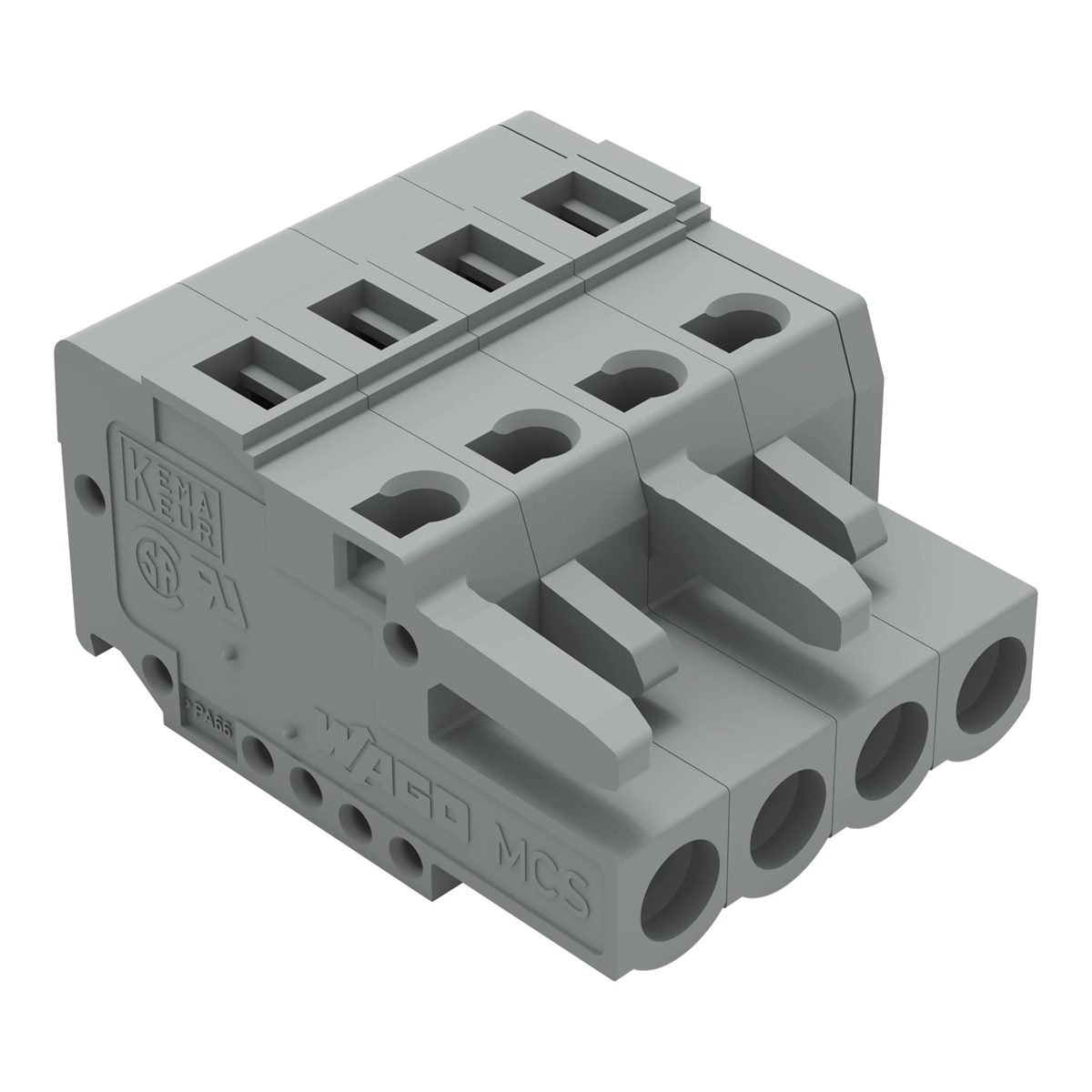

Spring plug, pitch 5mm, 4-way 231-104/026-000
local index:
TEB816WAGO
Catalog No:
231-104/026-000
EAN code:
4044918338394
Click on the photo to enlarge
Manufacturer:
WAGO ELWAG
Number of sockets:
4
Number of tracks:
4
Color:
Gray
See full description
Price:
296,68 €
gross / pkg.
(including VAT 23%)
2,97 € gross/pcs.
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to cart
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
Spring-cage plug 4-pole 5 mm/0.197 in pitch, 2-pin coding possible.
Technical data
Number of sockets
4
Color
Gray
Series
231
Weight [g]
7.319
Number of connectors
4
Number of tracks
4
Number of potentials
4
Pieces in the package
100
Accurate color
Gray
Other technical data
Type of connection
Printed circuit board to cable
Number of poles
4
Modular spacing contacts
5 mm
Angle contact/conductor connection
180° (horizontal)
Rated voltage
320 V
Over voltage category
III
Connectable conductor cross section fine-strand without cable end sleeve
0.08 ... 2.5 mm²
Connectable conductor cross section solid-core
0.08 ... 2.5 mm²
Type of electric connection
Spring clamp connection
Material of contact surface
Tin
Material insulation body
Thermoplastic
Coating housing
Nie dotyczy
Inflammability class of insulation material according to with UL94
V0
Operating temperature
-60 ... 85 °C
Contact type
Bus
Number of plug-in contact rows
1
Modular spacing connections
5 mm
Rated current In
16 A
Rated surge voltage
4 kV
Pollution degree
2
Connectable conductor cross section fine-strand with cable end sleeve
0.25 ... 1.5 mm²
Connectable conductor cross section multi-wired
0.08 ... 2.5 mm²
Connectable cable type
Tubular cable
Material contact
Other copper alloys
Housing material
Plastic
Housing colour
Grey
With protective conductor
No
Degree of protection (IP), mounted
IP20
Bulk packaging
A kind of package
Karton
Quantity
1 pkg.
Weight (kg)
0,872
Volume (m3)
0,003
Width (m)
0,256
Length (m)
0,318
Depth (m)
0,040
