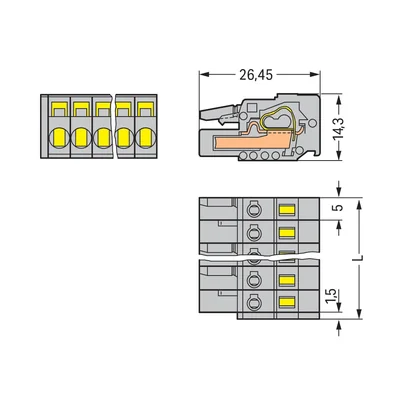

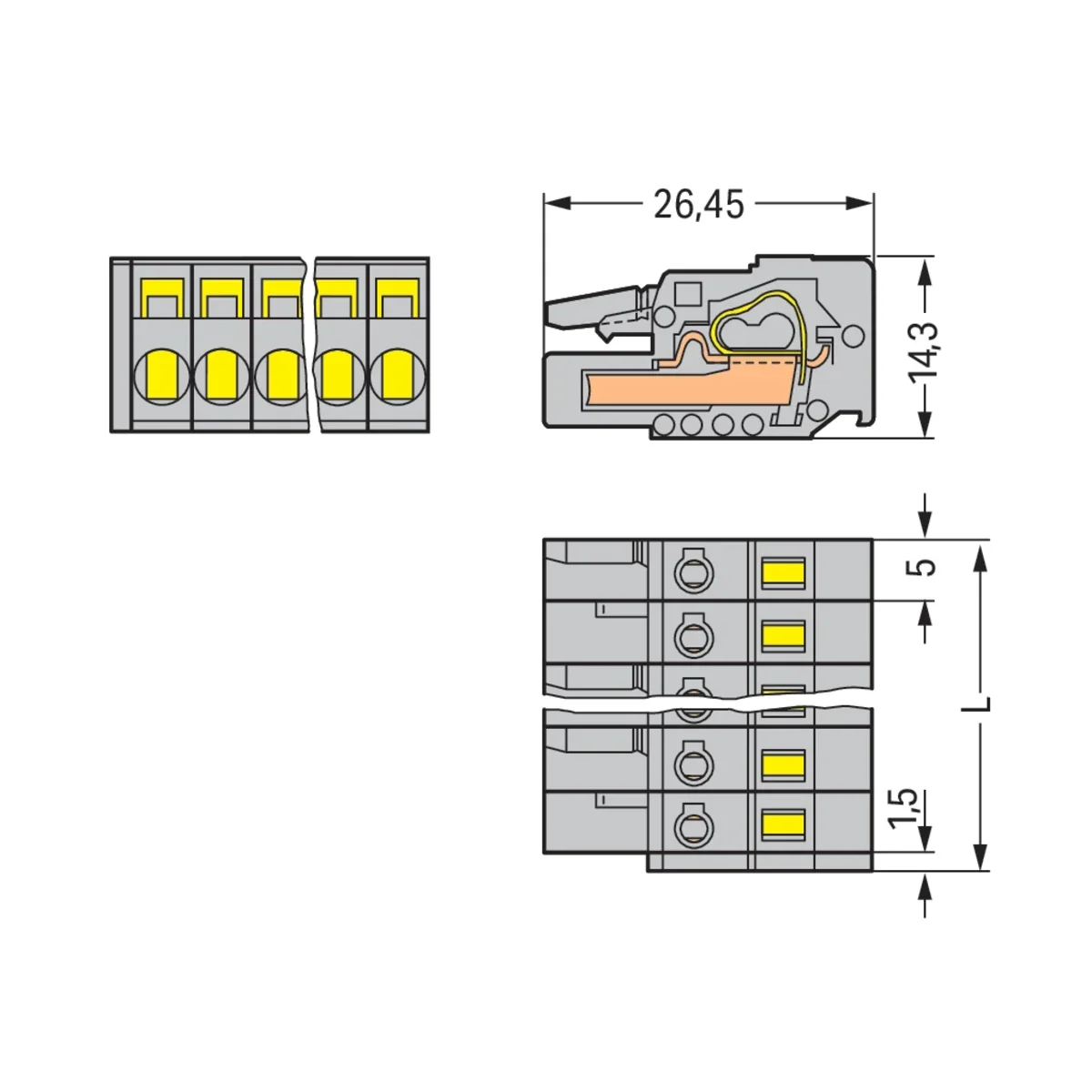

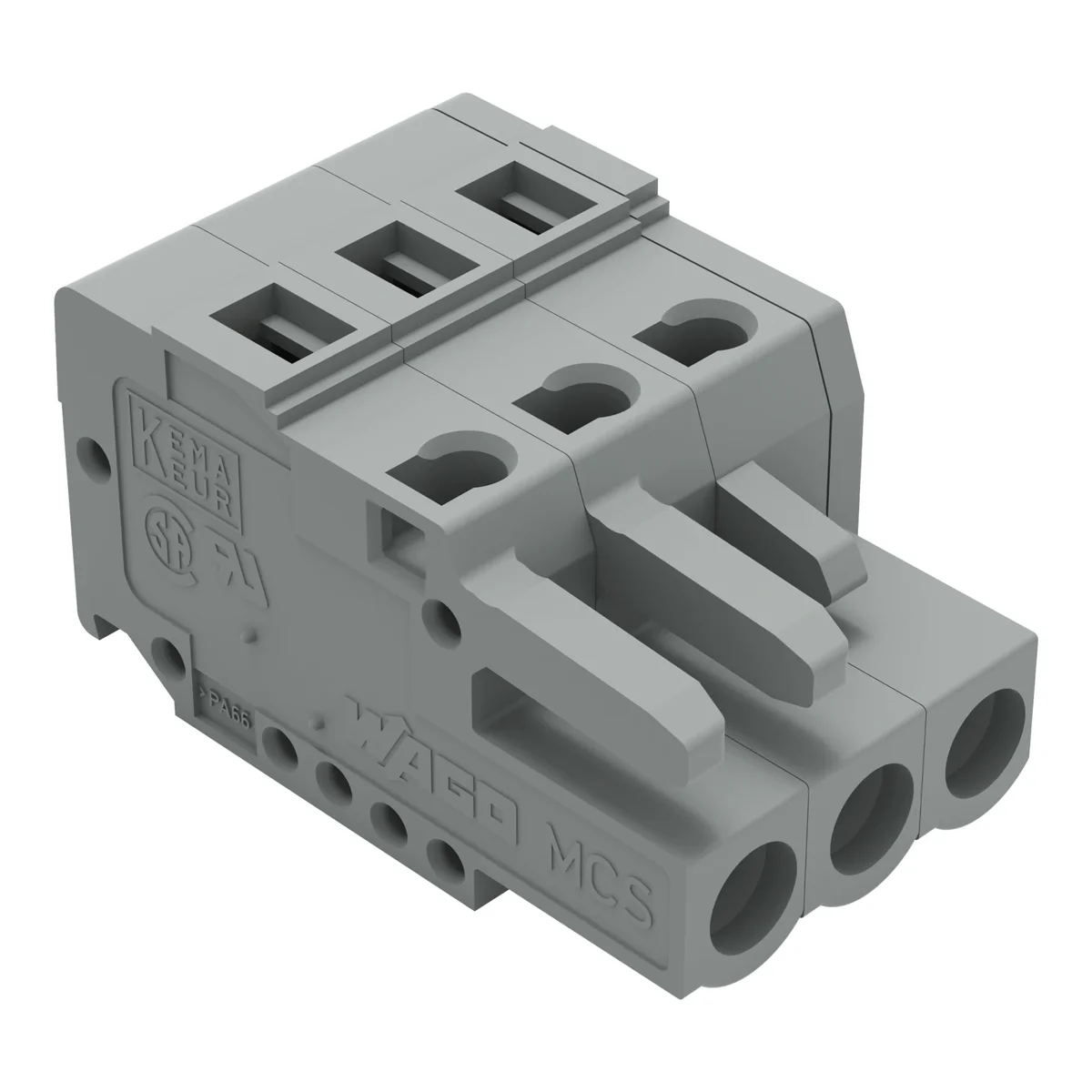

Spring plug, pitch 5mm, 3-way 231-103/026-000
local index:
TEB822WAGO
Catalog No:
231-103/026-000
EAN code:
4044918337854
Price:
229,96 €
gross / pkg.
(including VAT 23%)
2,30 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Spring-cage plug 3-pole 5 mm/0.197 in pitch, only 1 pin coding possible.
Technical data
-
Number of sockets3
-
ColorGray
-
Series231
-
Weight [g]5.57
-
Number of tracks3
-
Number of potentials3
-
Pieces in the package100
-
Number of connectors3
Other technical data
-
Type of connectionPrinted circuit board to cable
-
Number of poles3
-
Modular spacing contacts5 mm
-
Angle contact/conductor connection180° (horizontal)
-
Rated voltage320 V
-
Over voltage categoryIII
-
Connectable conductor cross section fine-strand without cable end sleeve0.08 ... 2.5 mm²
-
Connectable conductor cross section solid-core0.08 ... 2.5 mm²
-
Type of electric connectionSpring clamp connection
-
Material of contact surfaceTin
-
Material insulation bodyThermoplastic
-
Coating housingNie dotyczy
-
Inflammability class of insulation material according to with UL94V0
-
Operating temperature-60 ... 85 °C
-
Contact typeBus
-
Number of plug-in contact rows1
-
Modular spacing connections5 mm
-
Rated current In16 A
-
Rated surge voltage4 kV
-
Pollution degree2
-
Connectable conductor cross section fine-strand with cable end sleeve0.25 ... 1.5 mm²
-
Connectable conductor cross section multi-wired0.08 ... 2.5 mm²
-
Connectable cable typeTubular cable
-
Material contactOther copper alloys
-
Housing materialPlastic
-
Housing colourGrey
-
With protective conductorNo
-
Degree of protection (IP), mountedIP20
Manufacturer details
-
ManufacturerWAGO GmbH & Co. KG
-
Address32423 Minden Hansastraße 27 Niemcy
-
E-mail
Bulk packaging
| A kind of package | Karton |
| Quantity | 1 pkg. |
| Weight (kg) | 0,697 |
| Volume (m3) | 0,003 |
| Width (m) | 0,256 |
| Length (m) | 0,318 |
| Depth (m) | 0,040 |
