Connecting cables and wires
Connectors
Screwless connectors

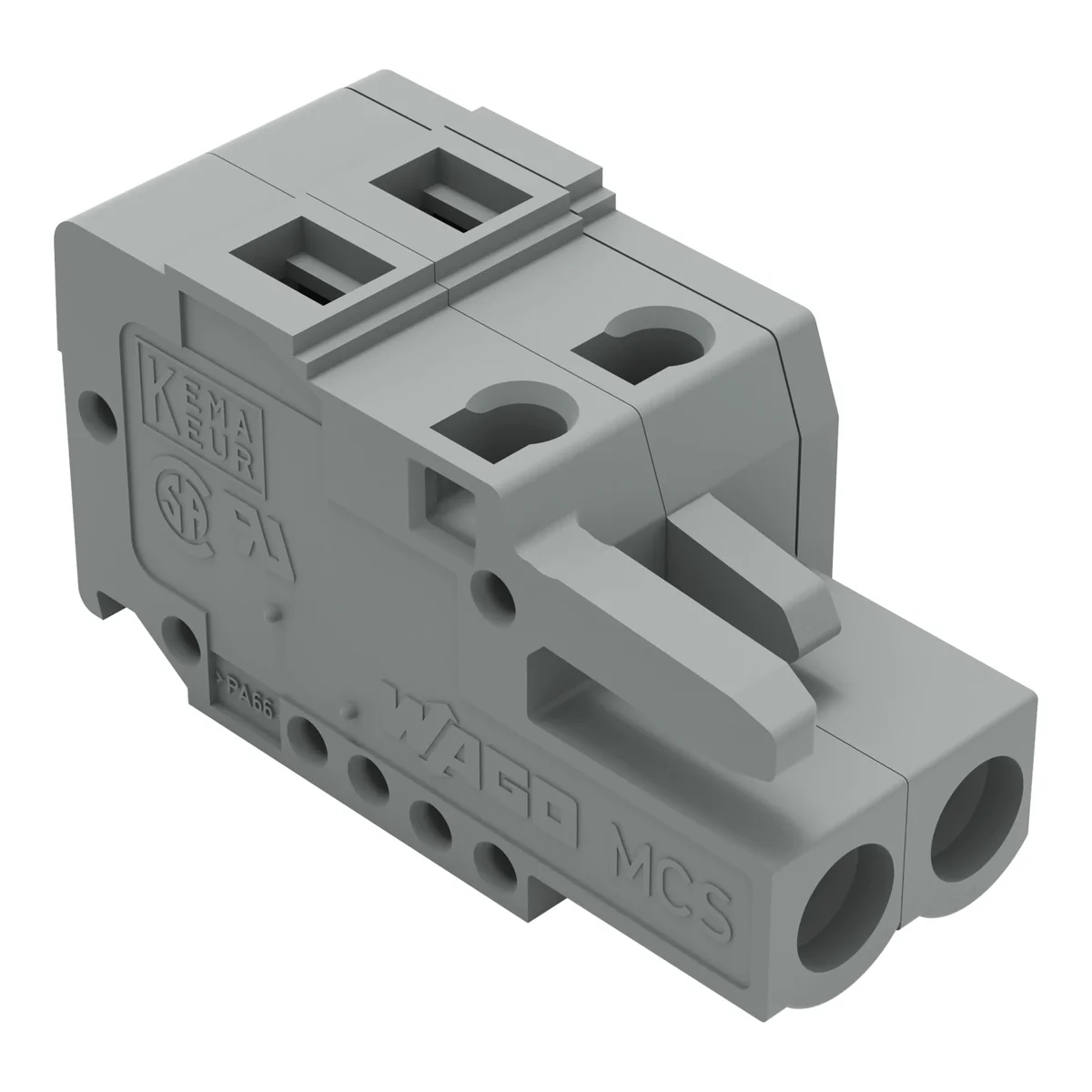

Spring plug, pitch 5mm, 2-track 231-102/026-000
local index:
TEB820WAGO
Catalog No:
231-102/026-000
EAN code:
4044918337168
Click on the photo to enlarge
Manufacturer:
WAGO ELWAG
Number of sockets:
2
Number of tracks:
2
Color:
Gray
See full description
Price:
1,60 €
gross / pcs.
(including VAT 23%)
419,95 € gross/kg.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Manufacturer details
Bulk packaging
Product description
Spring-cage plug 2-pole pitch 5 mm/0.197 in Only 1 pin coding possible.
Technical data
Number of sockets
2
Color
Gray
Series
231
Accurate color
Gray
Number of tracks
2
Number of potentials
2
Weight [g]
3.81
Number of connectors
2
Other technical data
Type of connection
Printed circuit board to cable
Number of poles
2
Modular spacing contacts
5 mm
Angle contact/conductor connection
180° (horizontal)
Rated voltage
320 V
Over voltage category
III
Connectable conductor cross section fine-strand without cable end sleeve
0.08 ... 2.5 mm²
Connectable conductor cross section solid-core
0.08 ... 2.5 mm²
Type of electric connection
Spring clamp connection
Material of contact surface
Tin
Material insulation body
Thermoplastic
Coating housing
Nie dotyczy
Inflammability class of insulation material according to with UL94
V0
Operating temperature
-60 ... 85 °C
Contact type
Bus
Number of plug-in contact rows
1
Modular spacing connections
5 mm
Rated current In
16 A
Rated surge voltage
4 kV
Pollution degree
2
Connectable conductor cross section fine-strand with cable end sleeve
0.25 ... 1.5 mm²
Connectable conductor cross section multi-wired
0.08 ... 2.5 mm²
Connectable cable type
Tubular cable
Material contact
Other copper alloys
Housing material
Plastic
Housing colour
Grey
With protective conductor
No
Degree of protection (IP), mounted
IP20
Manufacturer details
Manufacturer
WAGO ELWAG Sp. z o.o.
Address
50-506 Wrocław Piękna 58A
E-mail
wago.elwag@wago.com
WWW
https://wago.elwag@wago.com
Tax identification number
8961025689
GLN
4017332000000
Bulk packaging
A kind of package
Karton
Quantity
100 pcs.
Weight (kg)
0,453
Volume (m3)
0,002
Width (m)
0,172
Length (m)
0,254
Depth (m)
0,040
