Solar plug EPIC SOLAR 4 F 4-6mm2 44428263

Lokaler Index:
ANA065LAPP
Katalognummer:
44428263
EAN-Code:
4064727050324
Hersteller: LAPP KABEL
Protection class: II
Level of security: IP67
Degree of contamination: 3
Preis:
24,97 zł
gross / stk.
(inklusive MwSt 23%)
Nicht auf Lager
Auf Bestellung
Zur Angebotsanfrage hinzufügen
Drucken

Produktbeschreibung

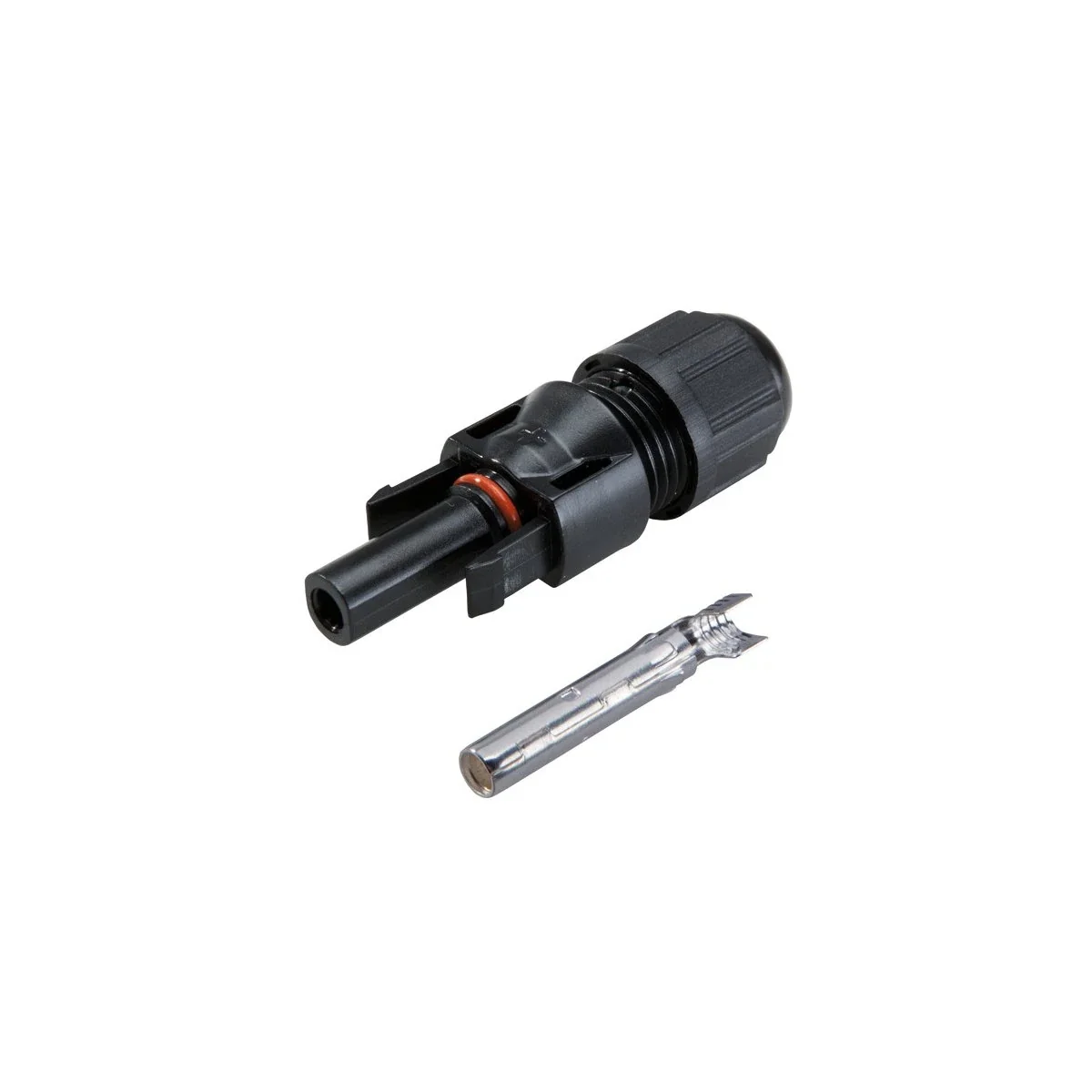

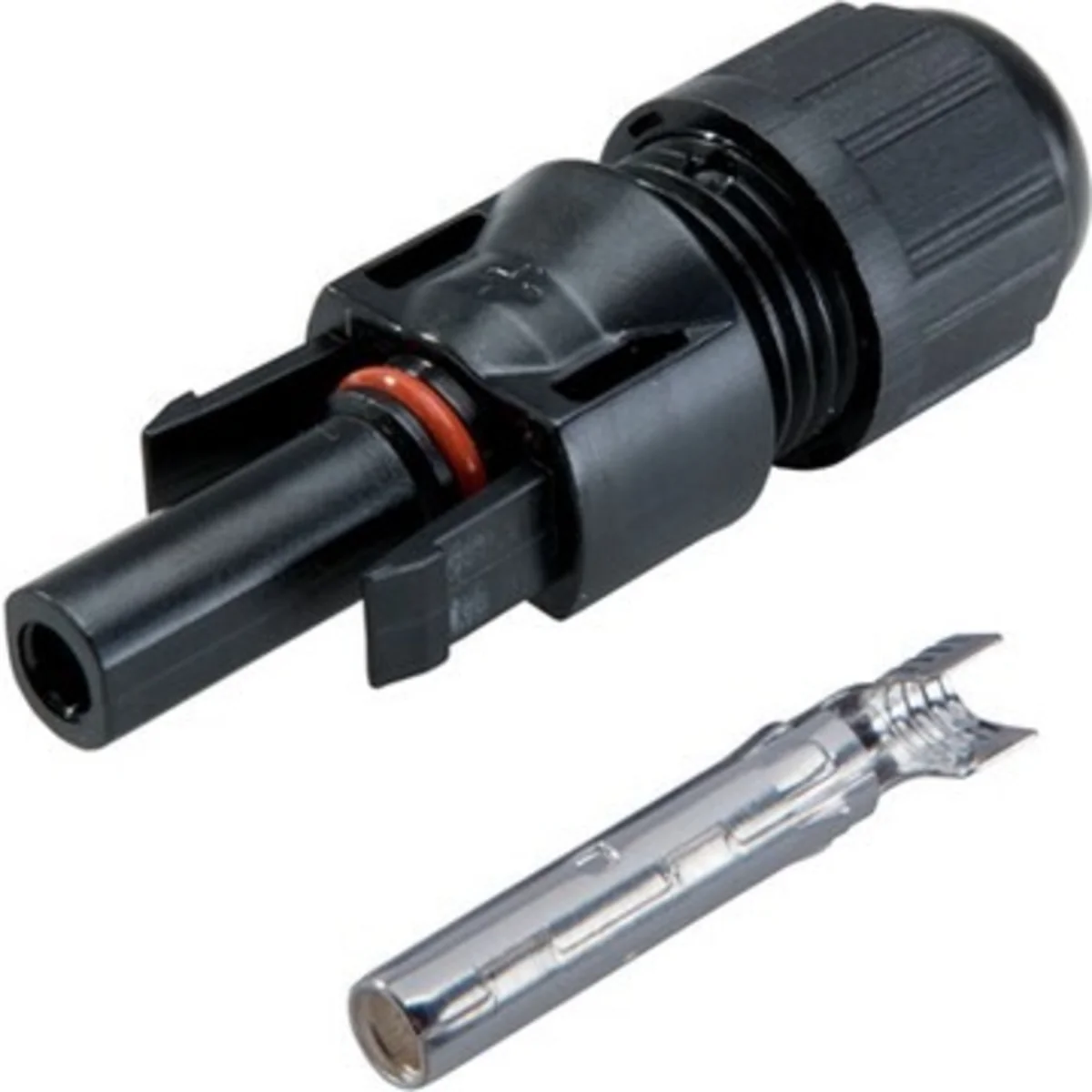

EPIC® SOLAR 4 Fis a solar plug in the 4 mm variant with double protection system, suitable for photovoltaic systems and trackeró in solar systems.

  • 4mm connector system with double latch
  • Free solar connector

Benefits:

  • Low contact resistance for efficient power transmission
  • Crimp terminal for secure on-site assembly

Scope of application:

  • Installation photovoltaics
  • Crystalline thin-film technology
  • Solar Tracker

Technische Daten

  • Protection class
    II
  • Degree of contamination
    3
  • Clamping range [mm]
    5.2-7.1
  • Level of security
    IP67
  • Operating temperature range [°C]
    -40...105
  • cross section [mm²]
    4.0-6.0

Weitere technische Daten

  • Contact type
    Bus
  • Rated current In
    30 A
  • Pollution degree
    3
  • Housing material
    Plastic
  • With status indication
    No
  • Type of housing
    Straight
  • Ambient temperature
    -40 ... 105 °C
  • Material of contact surface
    Tin
  • Min. number of insertion cycles
    100

Hersteller-Details

  • Hersteller
    Lapp Kabel Sp. z o.o.
  • Adresse
    55-040 Kobierzyce ul. Profesjonalna 1 Biskupice Podgórne 1
  • Steueridentifikationsnummer
    8971621588

Großpackungen

Eine Art Paket Pakiet Pakiet
Menge 100 stk. 100 stk.
Gewicht (kg) 0,900 0,900
Breite (m) 0,180 0,180
Länge (m) 0,193 0,193
Tiefe (m) 0,140 0,140
