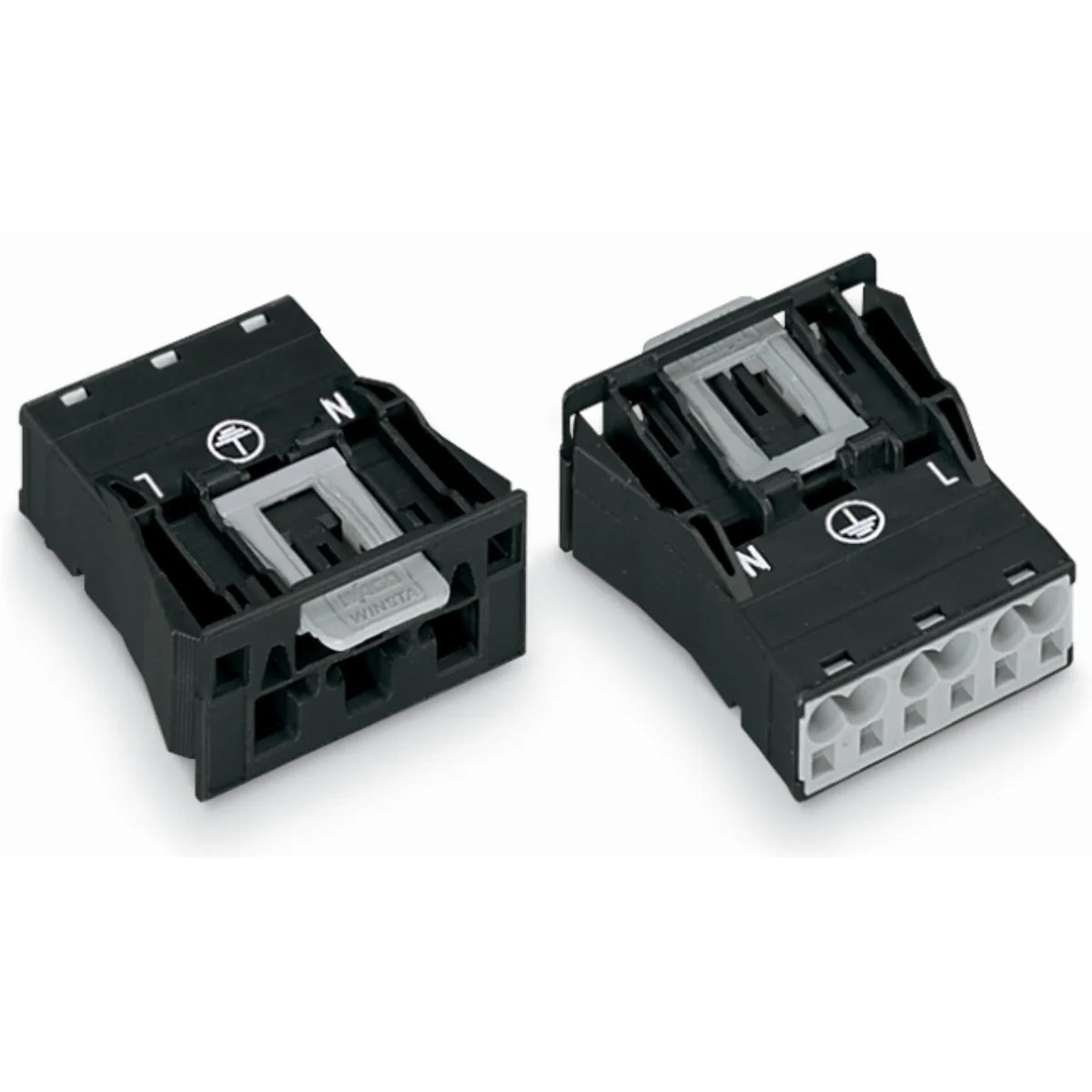

Snap-IN plug 3-pole 4mm2 black 770-713
local index:
TEB536WAGO
Catalog No:
770-713
EAN code:
4044918254199
Price:
2,02 €
gross / pcs.
(including VAT 23%)
The lowest price from 30 days before the reduction:
2,84 € gross
-0,82 €
Price history for this product
1. 2,02 € gross / pcs.
2. The lowest price from 30 days before the reduction:
2,84 €
-0,82 €
3. Base price:
2,95 €
1. How much does this product cost today
2. The lowest price from 30 days before the reduction
3. The base price of the product
Base price:
2,95 € gross
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
- Miswire protection, no maintenance
- Push-in CAGE CLAMP® for plug-in installation of solid conductors without tools
- 2 terminals per pole for potential multiplication or bridging
- Additional individual coding possible
Technical data
-
Depth [mm]36
-
ColorBlack
-
MaterialPolyamide 66
-
Rated voltage [V]250
-
Nominal cross-section [mm²]4
-
Wire connection techniquePush-in CAGE CLAMP
-
Rated impulse voltage [kV]4
-
Number of terminals6
-
Number of potentials3
-
Contact materialCopper/Copper alloy with refined surface
-
Rated current [A]25
-

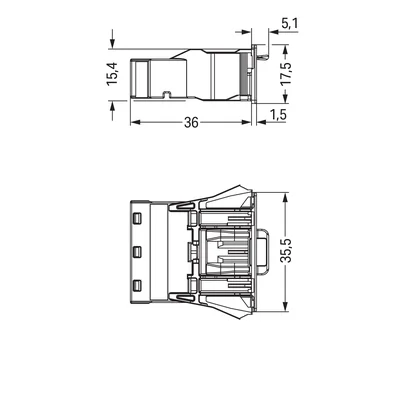

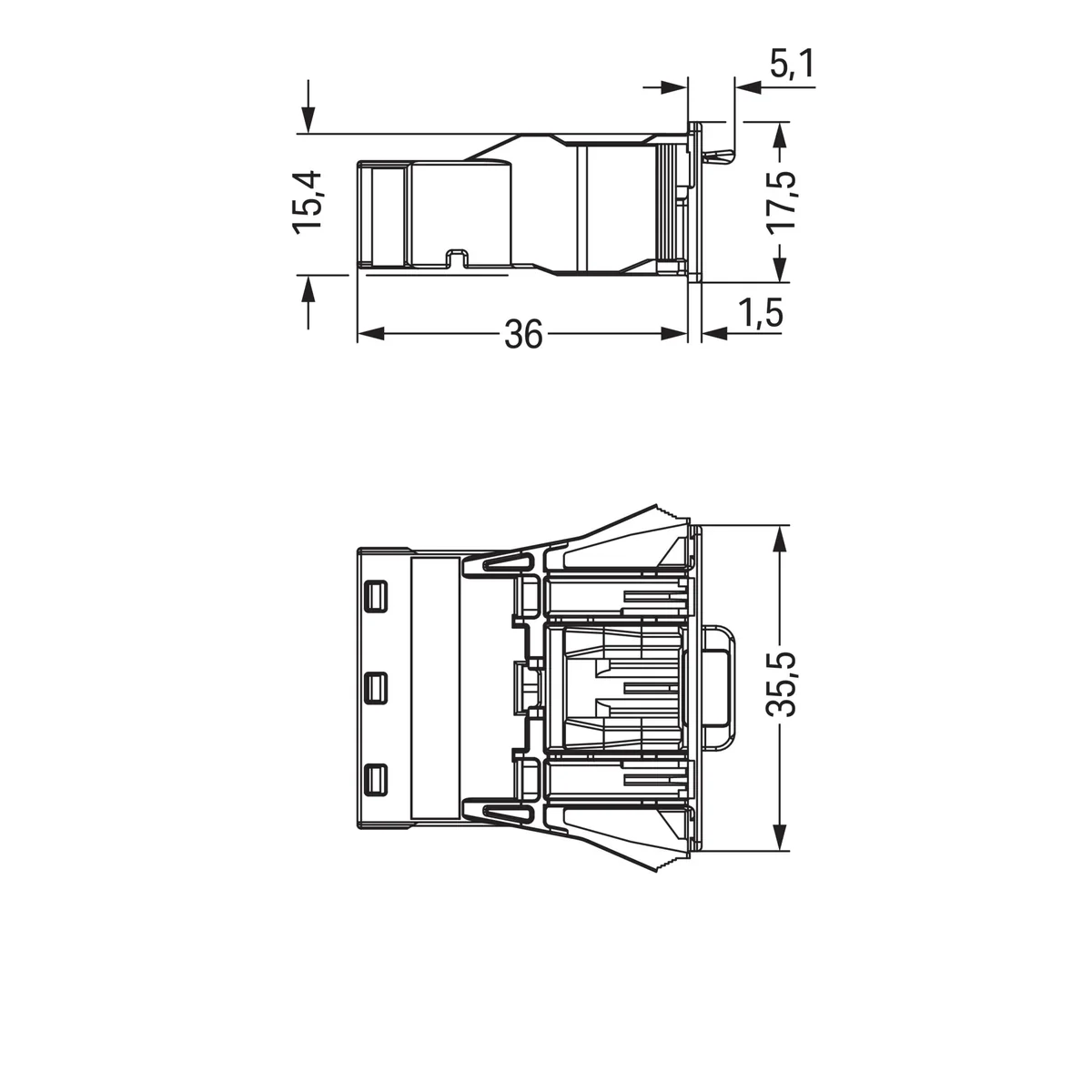

Width [mm]35.5
-
Height [mm]17.5
Other technical data
-
Rated voltage250 V
-
Number of poles3
-
Connection typeSpring clamp connection
-
Built-in versionBuilt-in part/plug-in connection
-
Angle of inclination0 ... 0 °
-
Connection cross section (fine-strand)0.5 ... 4 mm²
-
Number of connections per pole2
-
Mechanical codingYes
-
Colour of the separate adapter pieceWithout adapter piece
-
Type of lockingIntegrated in plug-in connector
-
Max. continuous temperature resistance strain relief105 °C
-
Halogen freeYes
-
Surface treatment contactsOther
-
Continuity resistance3 mΩ
-
Length36 mm
-
Width35.5 mm
-
Rated current25 A
-
Degree of protection (IP)IP20
-
ModelPlug
-
Insert directionStraight
-
Connection size threadNo thread connection
-
Connection cross section (solid-core)0.5 ... 4 mm²
-
Pole codificationL, N, PE
-
Colour coding/contact insertBlack
-
Housing colourBlack
-
Max. continuous temperature resistance contact part85 °C
-
Housing materialPolyamide (PA)
-
Contact materialOther
-
Pollution degree3
-
Rated surge voltage4 kV
-
Height17.5 mm
Manufacturer details
-
ManufacturerWAGO ELWAG SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
-
Address50-506 UL. PIĘKNA 58A
-
E-mail
-
Tax identification number8961025689
Bulk packaging
| A kind of package | Karton | Karton |
| Quantity | 100 pcs. | 100 pcs. |
| Weight (kg) | 1,301 | 1,301 |
| Volume (m3) | 0,006 | 0,006 |
| Width (m) | 0,140 | 0,140 |
| Length (m) | 0,228 | 0,228 |
| Depth (m) | 0,180 | 0,180 |
