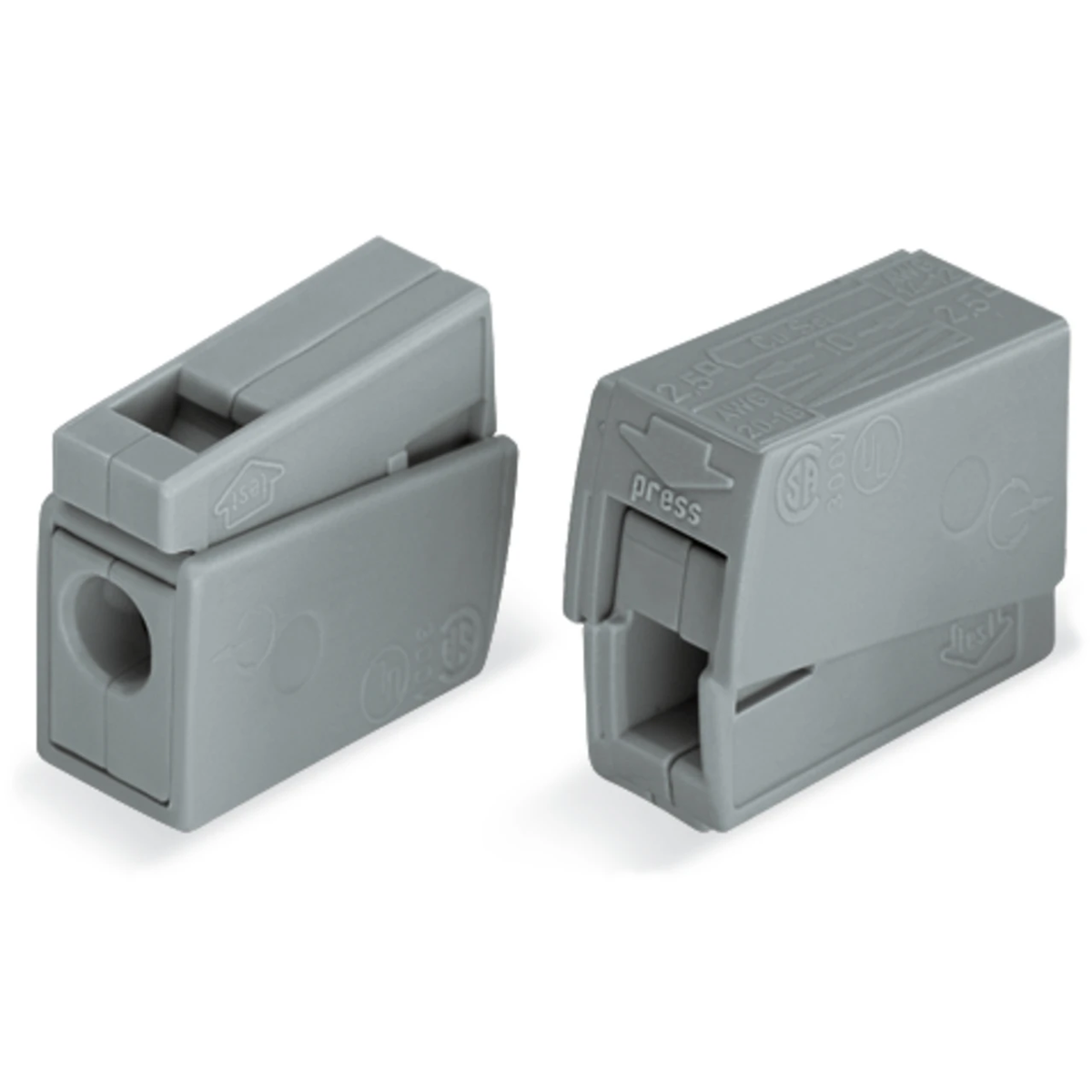

Single lighting connector 224-101
local index:
TEO785WAGO
Catalog No:
224-101
EAN code:
4044918583817
Price:
103,91 zł
gross / pkg.
(including VAT 23%)
1,04 zł gross/pcs.
Pickup in 1h
Delivery in 3h
Quantity pkg.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Lighting connector standard execution for a long-term permissible temperature of 105°C
Technical data
-
ColorGray
-
Gauge [AWG]14 - 20
-
Clamp typeCAGE CLAMP
-
Dirt zone2
-
Weight [g]2.033
-
Accurate colorGray
-
Rated current [A]24
-
Cable typeE
-
Series224
-
Pieces in the package100
-
Rated impulse voltage [kV]4
Other technical data
-
Number of clamp positions2
-
With operation leverNo
-
TransparentNo
-
Nominal voltage400 V
-
Suitable for flexible conductorsYes
-
Conductor cross section solid (solid, stranded)1 ... 2.5 mm²
-
Nominal cross section1 ... 2.5 mm²
-
ColourGrey
-
Suitable for solid conductorsYes
-
Nominal current24 A
-
Suitable for multi-wire conductorsNo
Manufacturer details
-
ManufacturerWAGO GmbH & Co. KG
-
Address32423 Minden Hansastraße 27 Niemcy
-
E-mail
Bulk packaging
| A kind of package | Karton |
| Quantity | 10 pkg. |
| Weight (kg) | 2,087 |
| Volume (m3) | 0,000 |
| Width (m) | 0,170 |
| Length (m) | 0,310 |
| Depth (m) | 0,110 |
