SET AAP11 6/1.5/12C Through rail connector, catalog number 2506090000 2506090000

Name: SET AAP11 6/1.5/12C Through rail connector, catalog number 2506090000
Brand: WEIDMULLER
SKU: TEB067WEID
Price: 100.48 PLN
Availability: BackOrder

Índice local:

TEB067WEID

Número de catálogo:

2506090000

Código EAN:

4050118520873

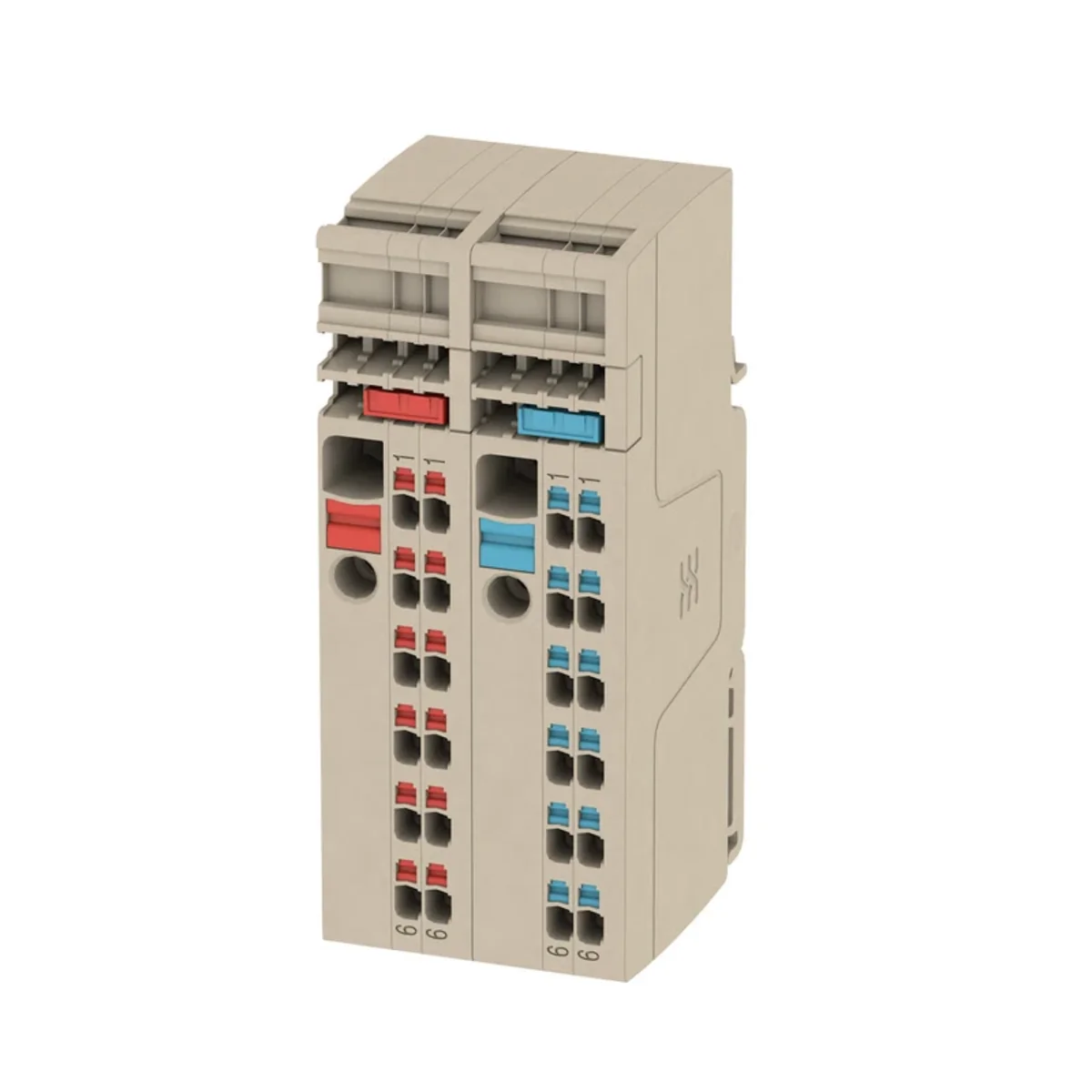

SET AAP11 6/1.5/12C Through rail connector, catalog number 2506090000

Haga clic en la foto para ampliar

Fabricante: WEIDMULLER

Precio:

100,48 zł

gross / uds.

(IVA incluido 23%)

2 semanas

Por encargo

Cantidad uds.

(múltiple:

1

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Datos técnicos Detalles del fabricante

Datos técnicos

Otros datos técnicos

Drill hole distance centrically

0 mm
Connectable conductor cross section fine-strand without cable end sleeve

6 ... 0.5 mm²
Connectable conductor cross section solid-core

6 ... 0.5 mm²
Rated current In

35 A
Type of electrical connection 1

Plug-in connection
Number of poles

6
Mounting method

DIN rail (top hat rail) 35 mm
Halogen free

Yes
Height

85.5 mm
Closing plate required

No

Explosion-tested version 'Ex e'

Yes
Connectable conductor cross section fine-strand with cable end sleeve

6 ... 0.5 mm²
Connectable conductor cross section multi-wired

6 ... 0.5 mm²
Rated voltage

500 V
Type of electrical connection 2

Plug-in connection
Number of clamp positions per pole

6
Operating temperature

130 ... -60 °C
Width

35 mm
Depth

47 mm
Transparent

No
