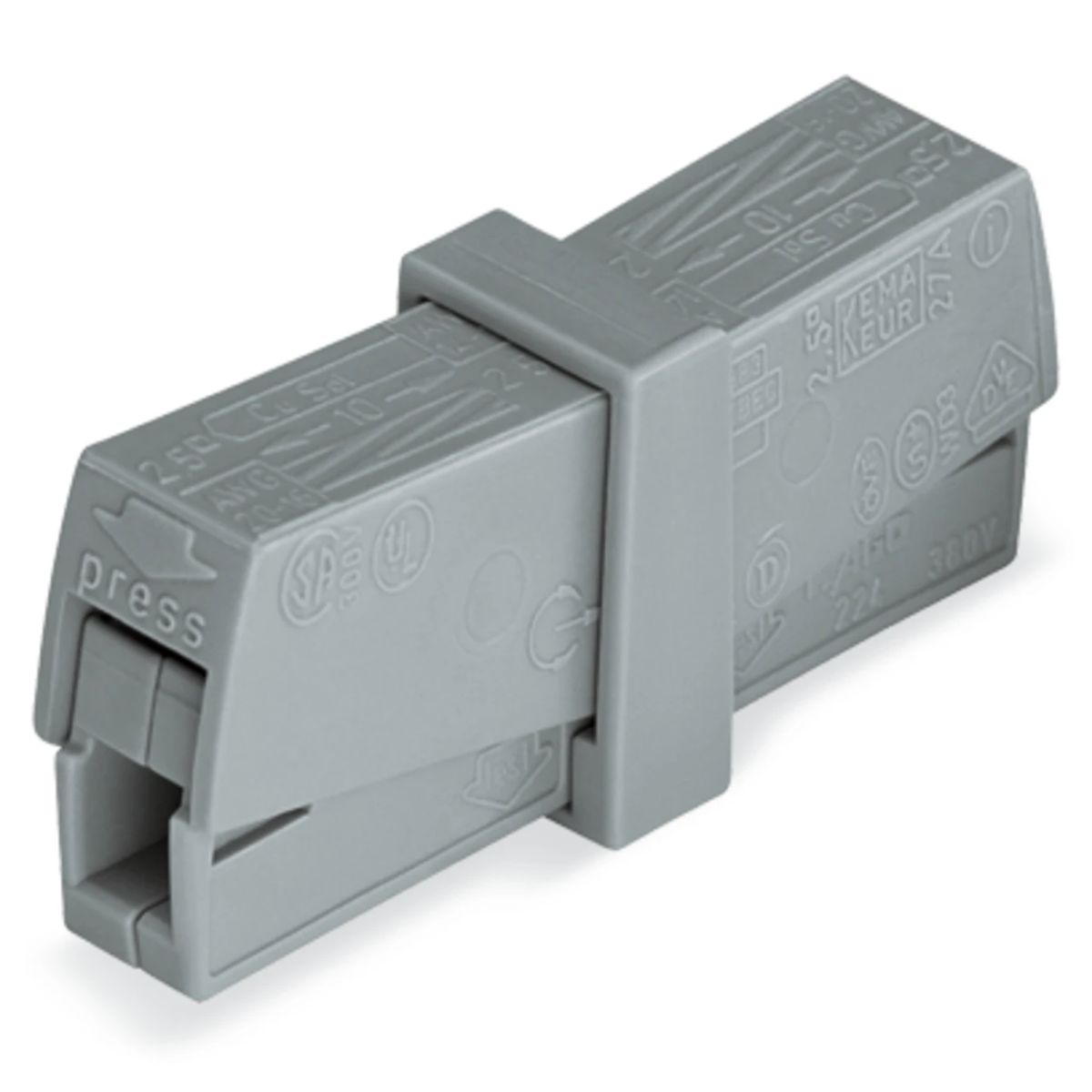

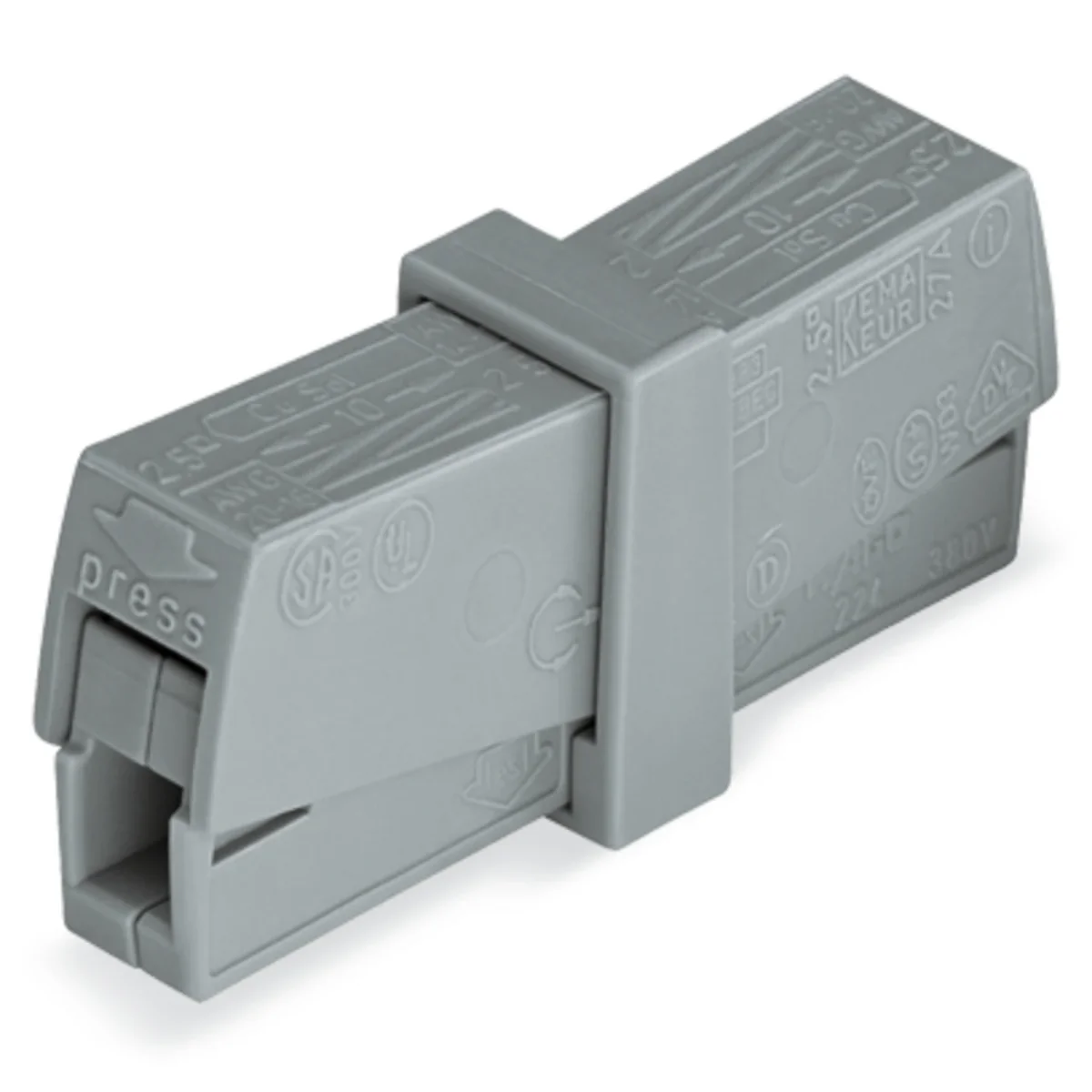

Service coupler 224-201

local index:
TEO788WAGO
Catalog No:
224-201
EAN code:
4044918818407
Manufacturer: WAGO ELWAG
Color: Gray
Rated current [A]: 24
Gauge [AWG]: 20 - 16
Price:
33,23 €
gross / pkg.
(including VAT 23%)
0,66 € gross/pcs.
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Product description

Wago Elwag - service coupler.

Technical data

  • Color
    Gray
  • Gauge [AWG]
    20 - 16
  • Clamp type
    CAGE CLAMP
  • Dirt zone
    2
  • Weight [g]
    4.4
  • Accurate color
    Gray
  • Rated current [A]
    24
  • Cable type
    E+f
  • Series
    224
  • Pieces in the package
    50
  • Rated impulse voltage [kV]
    4

Other technical data

  • Model
    Złączka serwisowa
  • Minimalny przekrój przewodu (strona oświetleniowa)
    0.5 mm²
  • Colour
    Grey
  • Minimalny przekrój przewodu (strona instalacyjna)
    0.5 mm²
  • Max. cable cross section
    2.5 mm²

Manufacturer details

  • Manufacturer
    WAGO GmbH & Co. KG
  • Address
    32423 Minden Hansastraße 27 Niemcy

Bulk packaging

A kind of package Karton
Quantity 1 pkg.
Weight (kg) 0,268
Volume (m3) 0,001
Width (m) 0,094
Length (m) 0,222
Depth (m) 0,048
