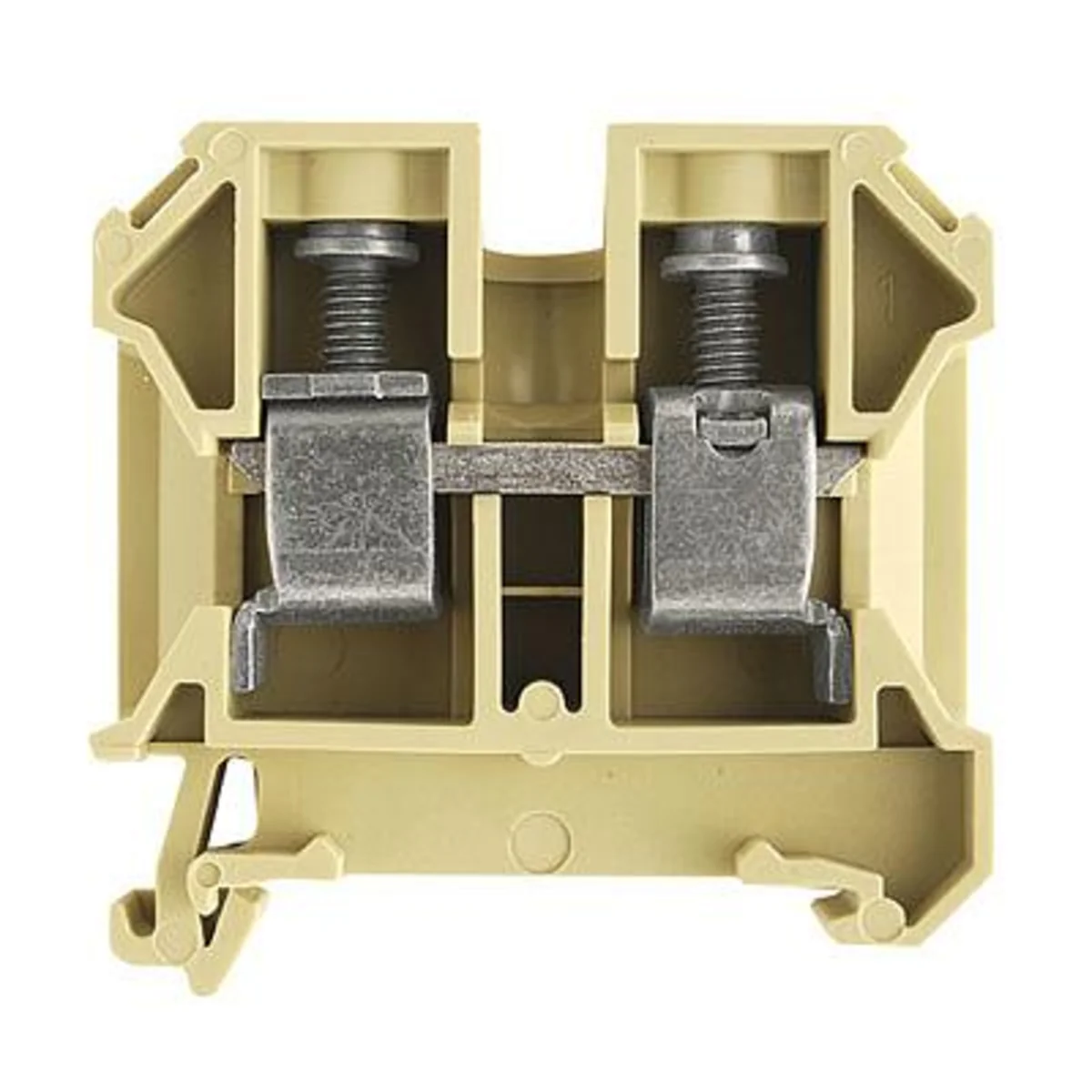

SAK 16/35 nipple 0380660000

local index:
TES099WEID
Catalog No:
0380660000
EAN code:
4008190118204
Manufacturer: WEIDMULLER
Installation: On the TH-35 rail
Cable section [mm2]: 16
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
0,91 €
gross / pcs.
(including VAT 23%)
Last lowest price: 2,35 € gross
Base price: 2,35 € gross -61%
Delivery in 3h
Accessible 7 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

SAK 16/35 nipple

Technical data

  • Installation
    On the TH-35 rail
  • Cable section [mm2]
    16

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    4 ... 16 mm²
  • Connectable conductor cross section solid-core
    2.5 ... 16 mm²
  • Rated current In
    76 A
  • Type of electrical connection 1
    Screw connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    -50 ... 100 °C
  • Width/grid dimension
    12 mm
  • Length
    50 mm
  • Closing plate required
    Yes
  • Internally connected stages
    No
  • Connectable conductor cross section fine-strand with cable end sleeve
    4 ... 16 mm²
  • Connectable conductor cross section multi-wired
    4 ... 16 mm²
  • Rated voltage
    1000 V
  • Connection position
    Sideways
  • Number of clamp positions per level
    2
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V2
  • Wysokość przy najniższym sposobie montażu
    57.5 mm
  • Explosion-tested version 'Ex e'
    No
  • Colour
    Multi-coloured
