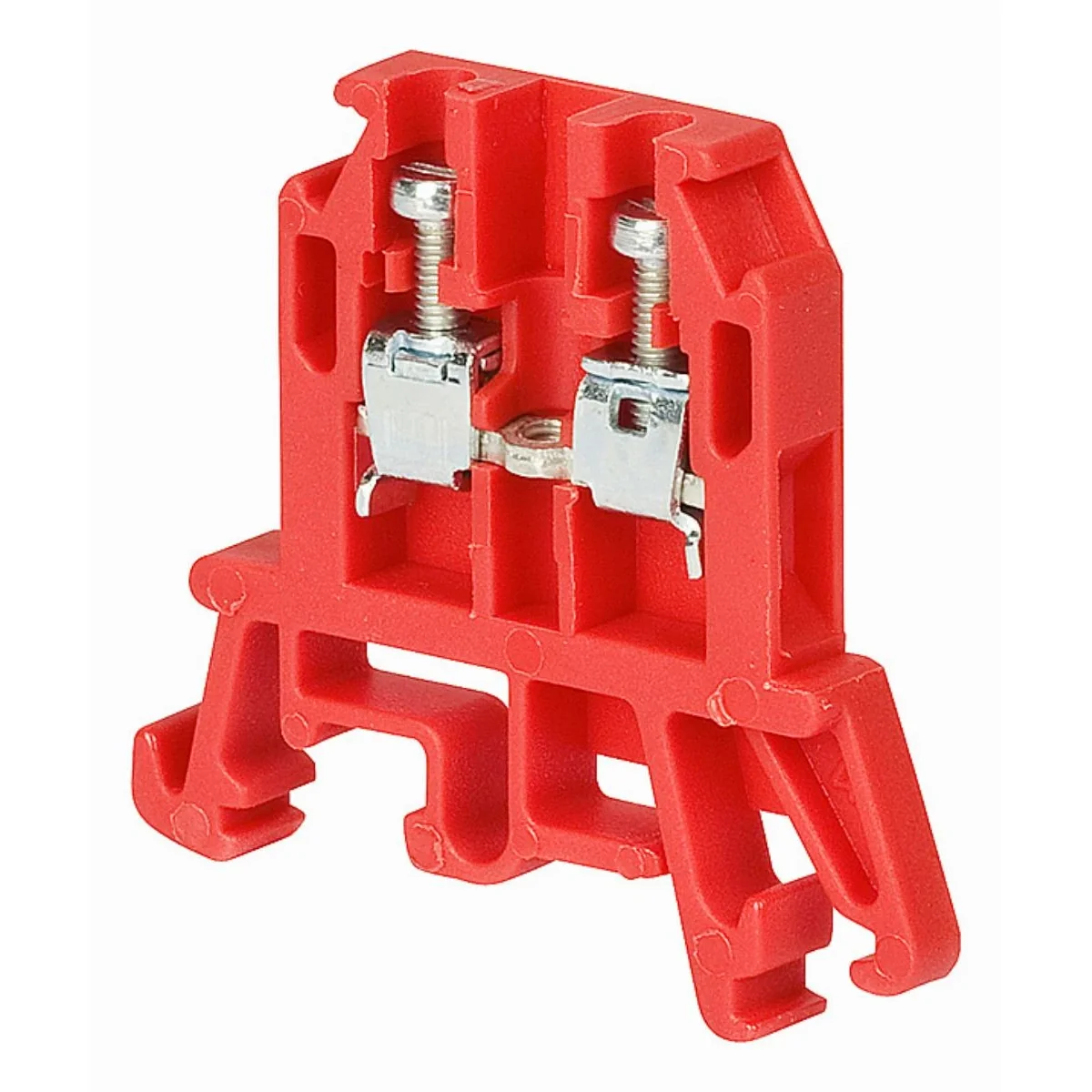

Red connector ZUG-G2.5 A11-0077
local index:
TES202POKO
Catalog No:
A11-0077
EAN code:
5902626101558
Price:
1,01 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Red connector ZUG-G2.5
Technical data
-
ColorRed
-
PKWIU27.12.40.0
-
Accurate colorRed
Other technical data
-
Connectable conductor cross section fine-strand without cable end sleeve0.5 ... 2.5 mm²
-
Connectable conductor cross section solid-core0.5 ... 2.5 mm²
-
Rated current In24 A
-
Type of electrical connection 1Screw connection
-
Connection positionAtop
-
Number of clamp positions per level2
-
Material insulation bodyThermoplastic
-
Inflammability class of insulation material according to with UL94V2
-
Wysokość przy najniższym sposobie montażu42 mm
-
Explosion-tested version 'Ex e'No
-
ColourRed
-
Connectable conductor cross section fine-strand with cable end sleeve0.5 ... 2.5 mm²
-
Connectable conductor cross section multi-wired0.5 ... 2.5 mm²
-
Rated voltage690 V
-
Type of electrical connection 2Screw connection
-
Number of levels1
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Operating temperature-25 ... 100 °C
-
Width/grid dimension5.2 mm
-
Length42 mm
-
Closing plate requiredYes
-
Internally connected stagesNo
Manufacturer details
-
ManufacturerPOKÓJ S.E.
-
Address91-202 Łódź Warecka 1 Polska
-
