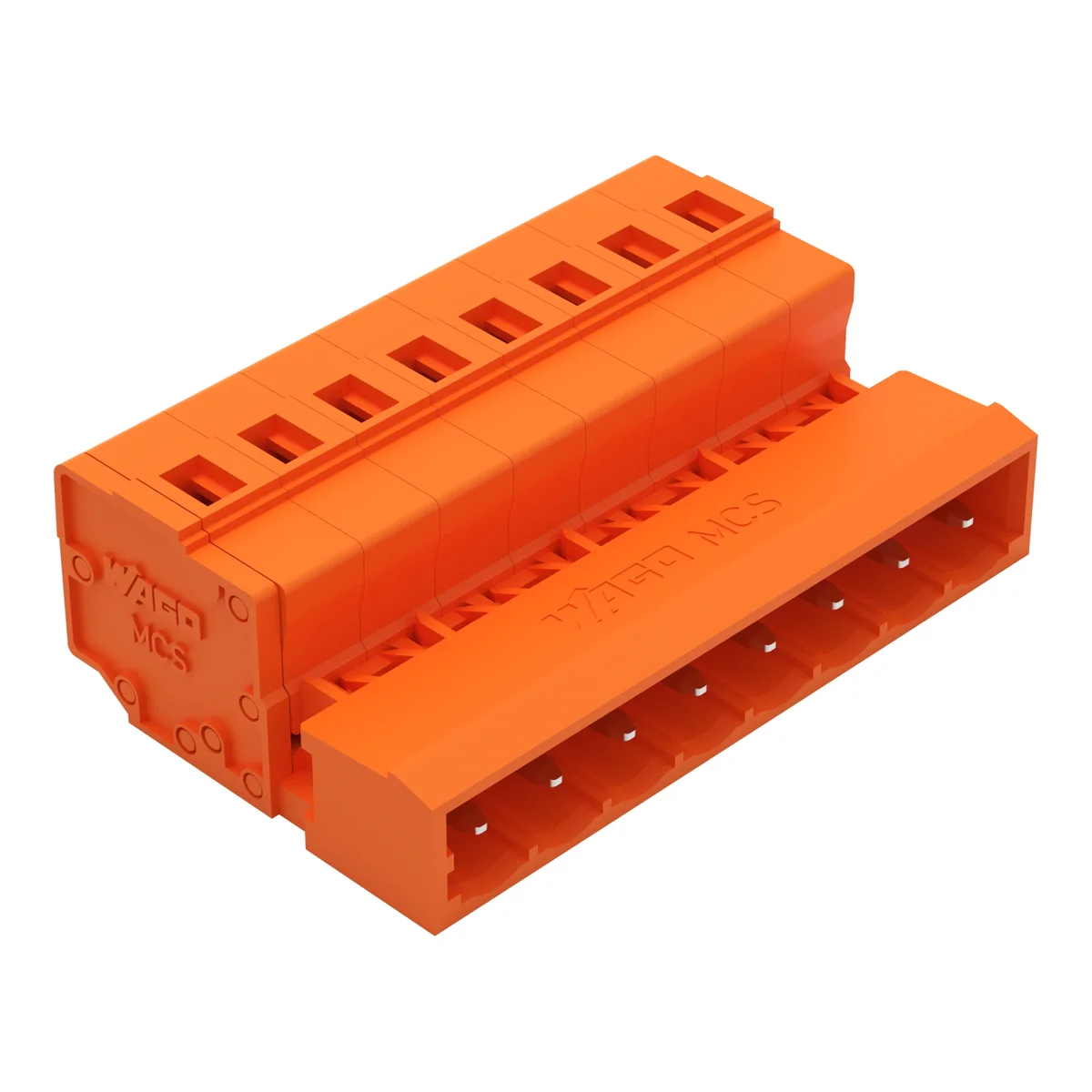

Name: Raster pin socket 5.08mm 8-way
Brand: WAGO ELWAG
SKU: TEB147WAGO
Price: 316.71 PLN

Type of connection

Printed circuit board to cable
Number of poles

8
Modular spacing contacts

5.08 mm
Angle contact/conductor connection

180° (horizontal)
Rated voltage

320 V
Over voltage category

III
Connectable conductor cross section fine-strand without cable end sleeve

0.08 ... 2.5 mm²
Connectable conductor cross section solid-core

0.08 ... 2.5 mm²
Type of electric connection

Spring clamp connection
Material of contact surface

Tin
Material insulation body

Thermoplastic
Coating housing

Nie dotyczy
Inflammability class of insulation material according to with UL94

V0
Operating temperature

-60 ... 100 °C

Contact type

Pin
Number of plug-in contact rows

1
Modular spacing connections

5.08 mm
Rated current In

12 A
Rated surge voltage

4 kV
Pollution degree

2
Connectable conductor cross section fine-strand with cable end sleeve

0.25 ... 1.5 mm²
Connectable conductor cross section multi-wired

0.08 ... 2.5 mm²
Connectable cable type

Tubular cable
Material contact

Other copper alloys
Housing material

Plastic
Housing colour

Orange
With protective conductor

No
Degree of protection (IP), mounted

IP10
