Rail connector ZUG-2.5 A11-A132 white 40pcs. A11-A132
local index:
TES173POKO
Catalog No:
A11-A132
EAN code:
5907570312173
Price:
42,55 €
gross / pkg.
(including VAT 23%)
1,06 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

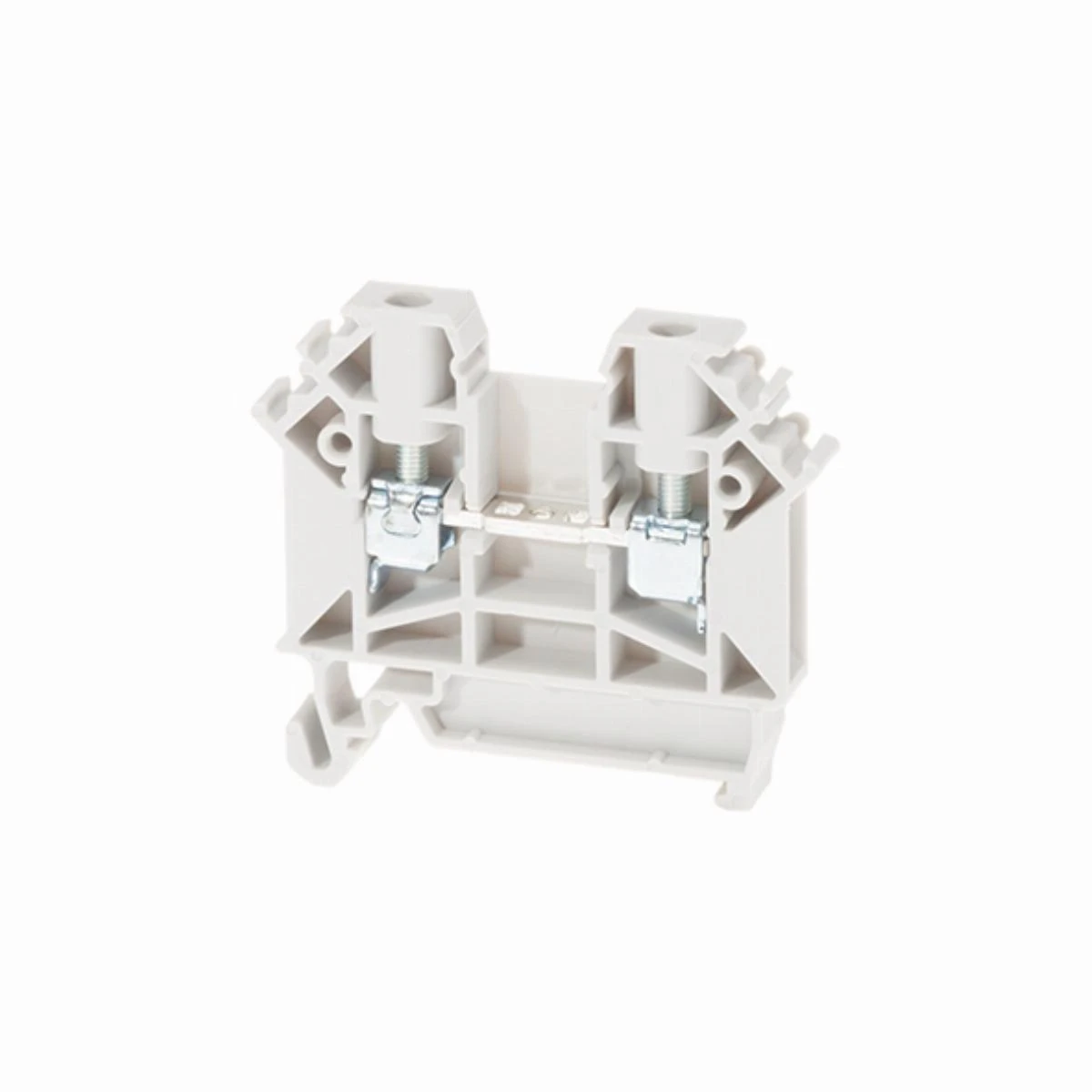

ZUG-2.5 A11-A132 rail terminal block. Single pole, 2 terminals, white, TS35 screw terminal.
Technical data
-
Number of tracks1
-
ColorWhite
-
Rated voltage [kV]1
-
Width [mm]5.2
-
Working temperature [°C]-25 - +120
-
Height [mm]40.6
-
PKWIU27.12.40.0
-
Number of terminals2
-
MaterialPolyamide
-
Rated current [A]24
-
Pieces in the package40
-
Connector typerail
-
Wire cross-section [mm²]0.5 - 4
Other technical data
-
Connectable conductor cross section fine-strand without cable end sleeve0.5 ... 2.5 mm²
-
Connectable conductor cross section solid-core0.5 ... 4 mm²
-
Rated current In24 A
-
Type of electrical connection 1Screw connection
-
Connection positionAtop
-
Number of clamp positions per level2
-
Material insulation bodyThermoplastic
-
Inflammability class of insulation material according to with UL94V0
-
Wysokość przy najniższym sposobie montażu40.6 mm
-
Explosion-tested version 'Ex e'No
-
ColourWhite
-
Connectable conductor cross section fine-strand with cable end sleeve0.5 ... 2.5 mm²
-
Connectable conductor cross section multi-wired0.5 ... 2.5 mm²
-
Rated voltage1000 V
-
Type of electrical connection 2Screw connection
-
Number of levels1
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Operating temperature-25 ... 120 °C
-
Width/grid dimension5.2 mm
-
Length45.4 mm
-
Closing plate requiredYes
-
Internally connected stagesNo
Manufacturer details
-
ManufacturerPOKÓJ S.E.
-
Address91-202 Łódź Warecka 1 Polska
-
