PV socket MC4 female 18048683

local index:
TEB003HELU
Catalog No:
18048683
Manufacturer: HELUKABEL
Overvoltage category: CAT III
Color: Black
Maximum voltage [V]: 1000
Price:
2,44 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 548 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

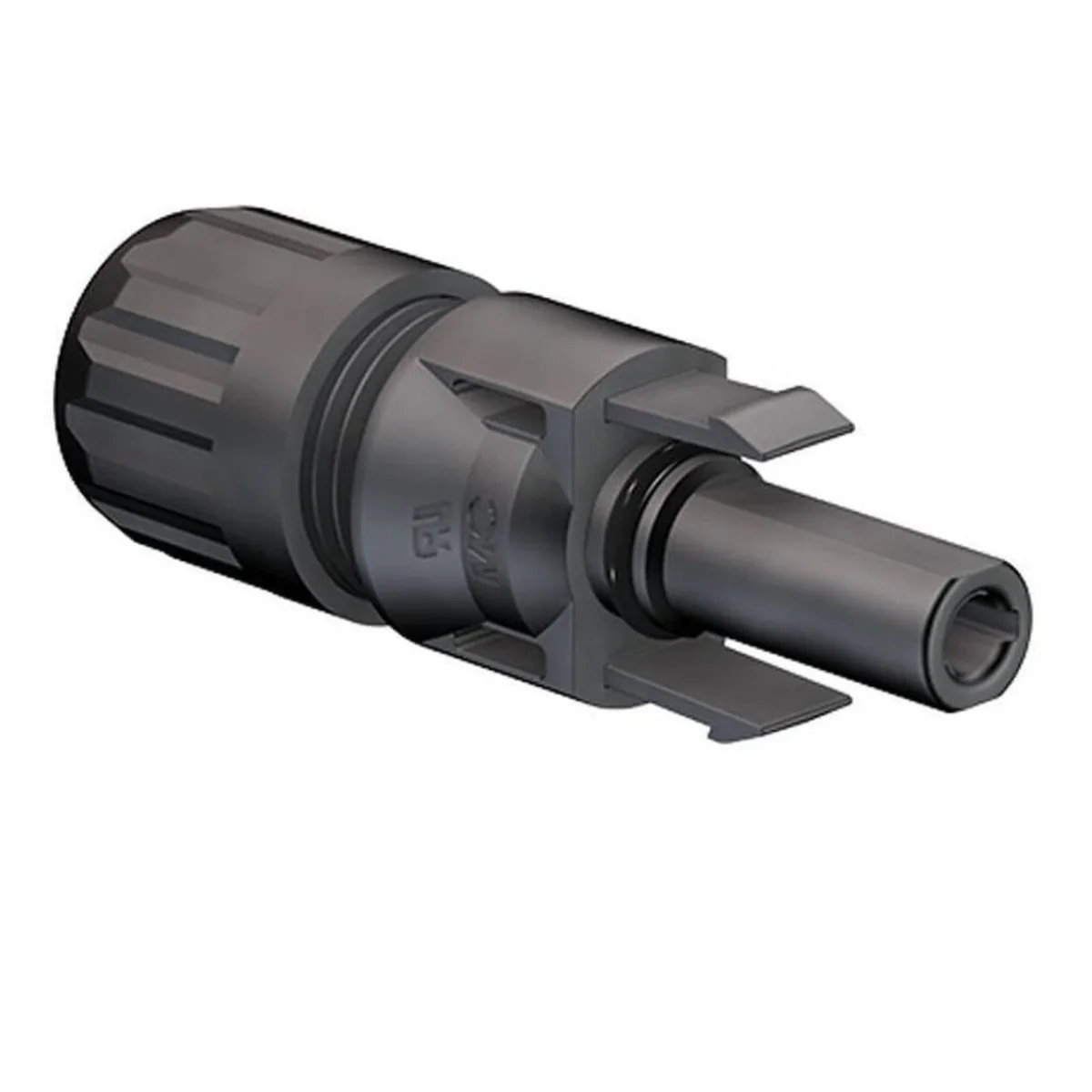

PV MC4 female socket for 4 and 6 mm cables from 5.5 - 7.4 mm. The socket is attached to the ends of solar cables. This allows you to protect the cable against external conditions and facilitates the installation of photovoltaic installations. The socket allows for crimping cables with cross-sections: 4 mm, 6 mm and 5.5 mm to 7.4 mm. The plugs are made of the highest quality plastic, which ensures their long service life and resistance to all kinds of weather conditions.

Technical data

  • Overvoltage category
    CAT III
  • Maximum voltage [V]
    1000
  • Voltage test [kV]
    12 16
  • Cable diameter [mm]
    5.5-7.4
  • Wire cross-section [mm²]
    4-6
  • PKWIU
    27.32.13.0
  • Color
    Black
  • Material
    Plastic
  • Level of security
    IP65
  • Working temperature [°C]
    From -40 to 85
  • Flammability class
    UL94-VO
