SIMET

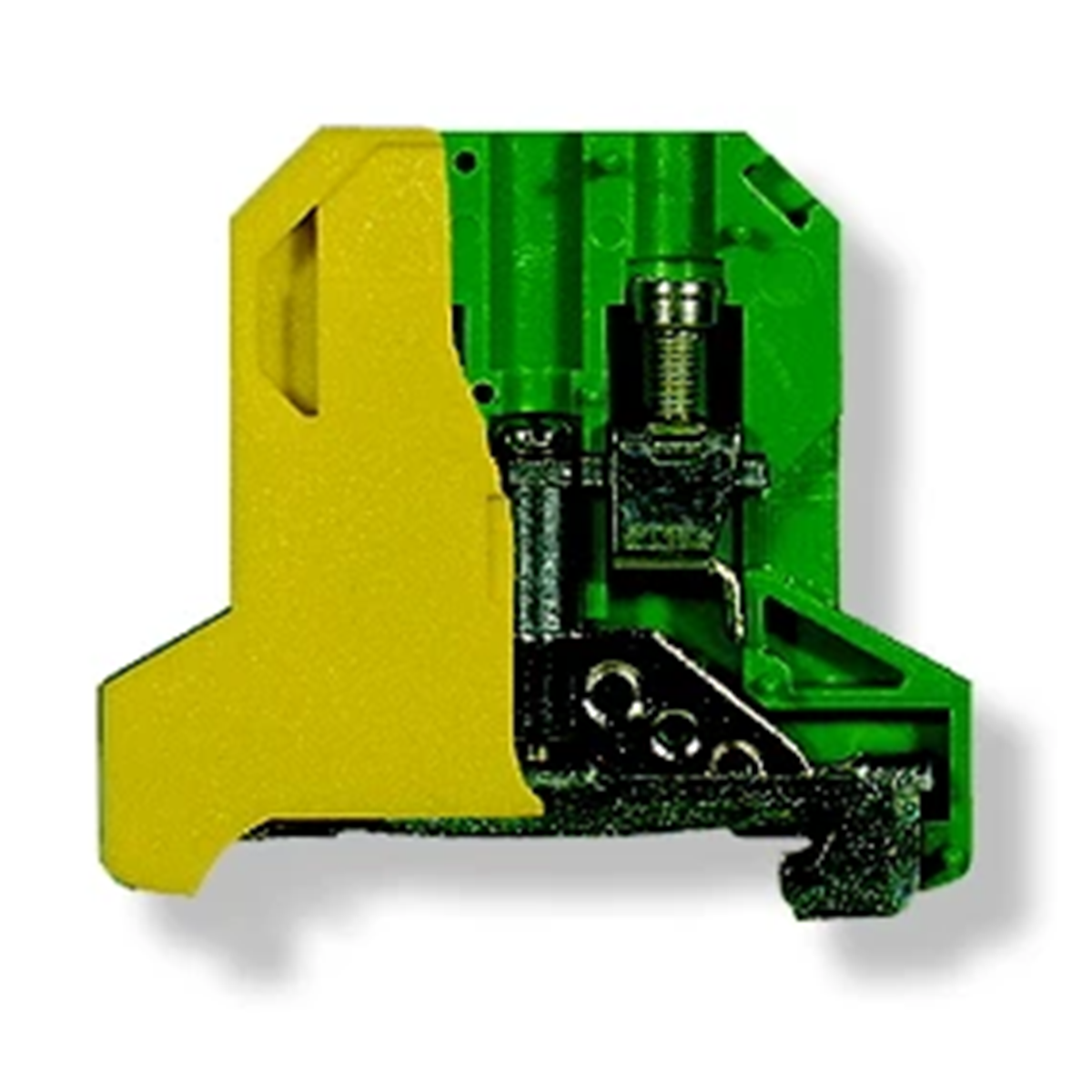

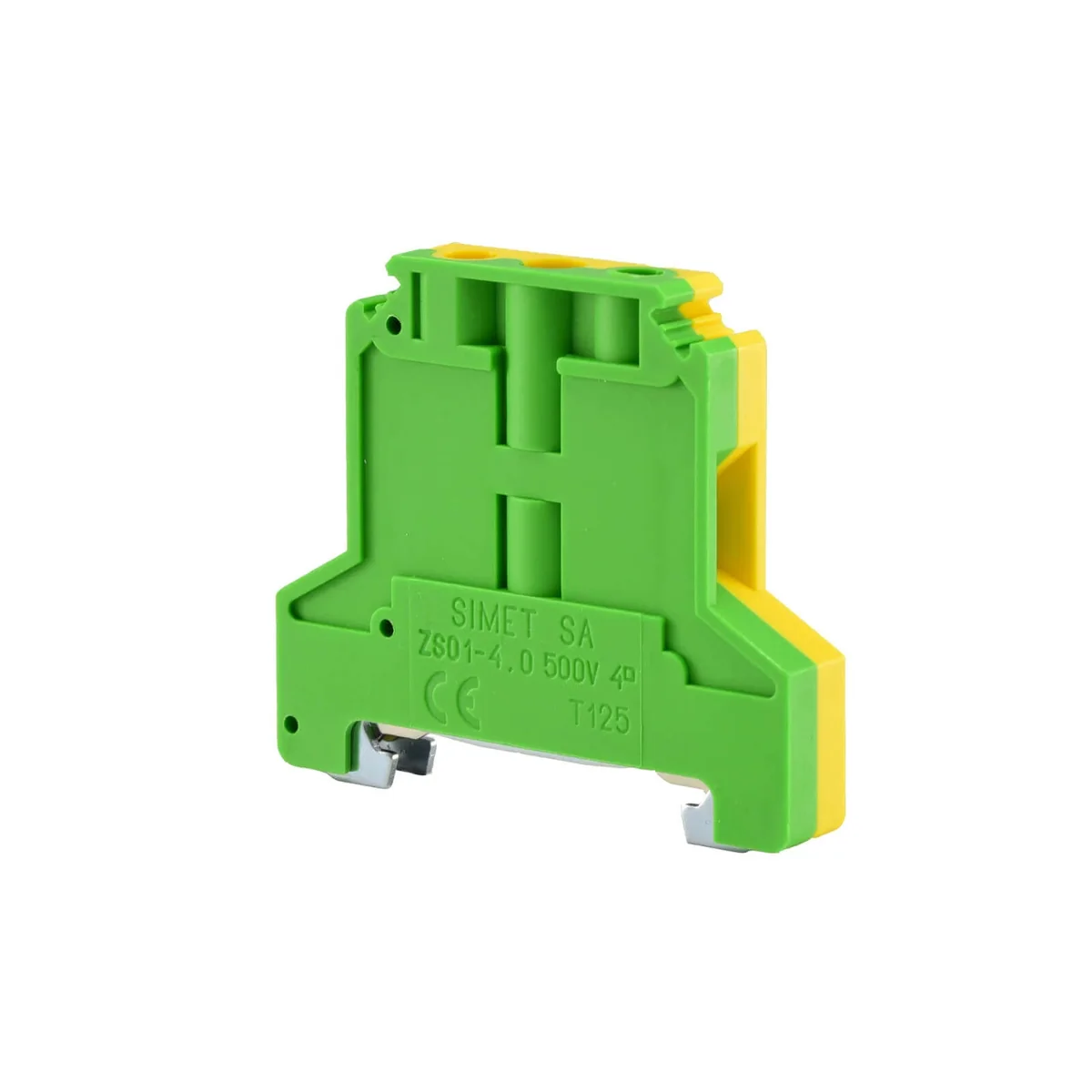

Protective threaded rail connector 4 mm2 TS 35 1 track 50 pcs. 14313319

local index:
TEG745SIME
Catalog No:
14313319
EAN code:
5907813209017
Price:
182,73 €
gross / pkg.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,47 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pkg.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Protective screw terminal block, 4 mm2, TS 35, 1 track

Technical data

  • Color
    Yellow-green
  • Nominal cross-section [mm²]
    4
  • Libra
    21.2
  • Rated current [A]
    32
  • Pieces in the package
    50
  • Accurate color
    Yellow-green

Other technical data

  • PEN function possible
    yes
  • Current measuring range, DC
    12 ... 24 A
  • Colour
    Green/yellow
  • Type of electrical connection 2
    Screw connection
  • Operating temperature
    -25 ... 125 °C
  • Number of clamp positions per level
    2
  • Inflammability class of insulation material according to with UL94
    V0
  • Connectable conductor cross section fine-strand without cable end sleeve
    0,5 ... 4 mm²
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    0,5 ... 4 mm²
  • Length
    58 mm
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Sideways
  • Number of levels
    1
  • Material insulation body
    Thermoplastic
  • Width/grid dimension
    9 mm
  • Wysokość przy najniższym sposobie montażu
    50 mm
  • Connectable conductor cross section solid-core
    0,5 ... 6 mm²
  • Closing plate required
    no
