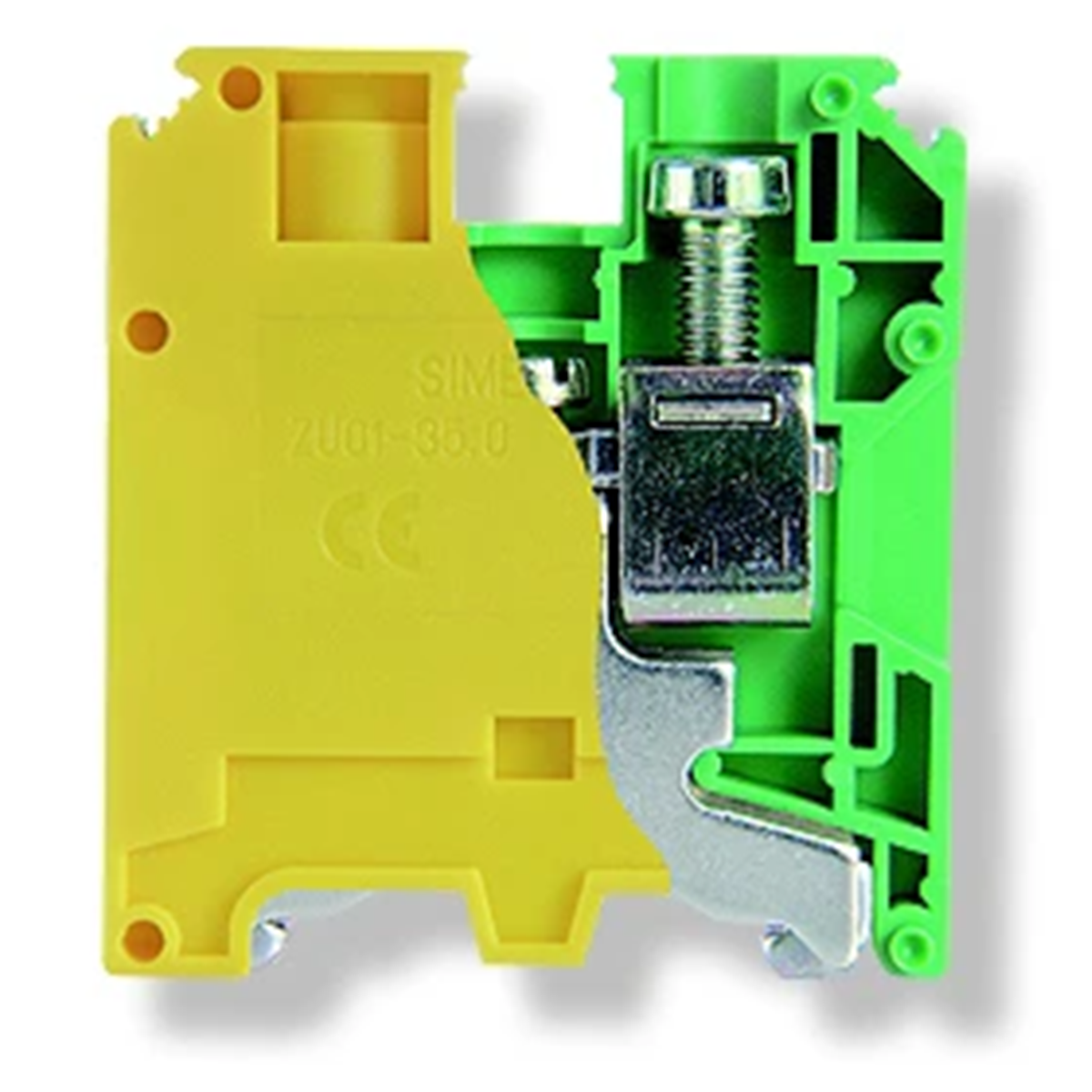

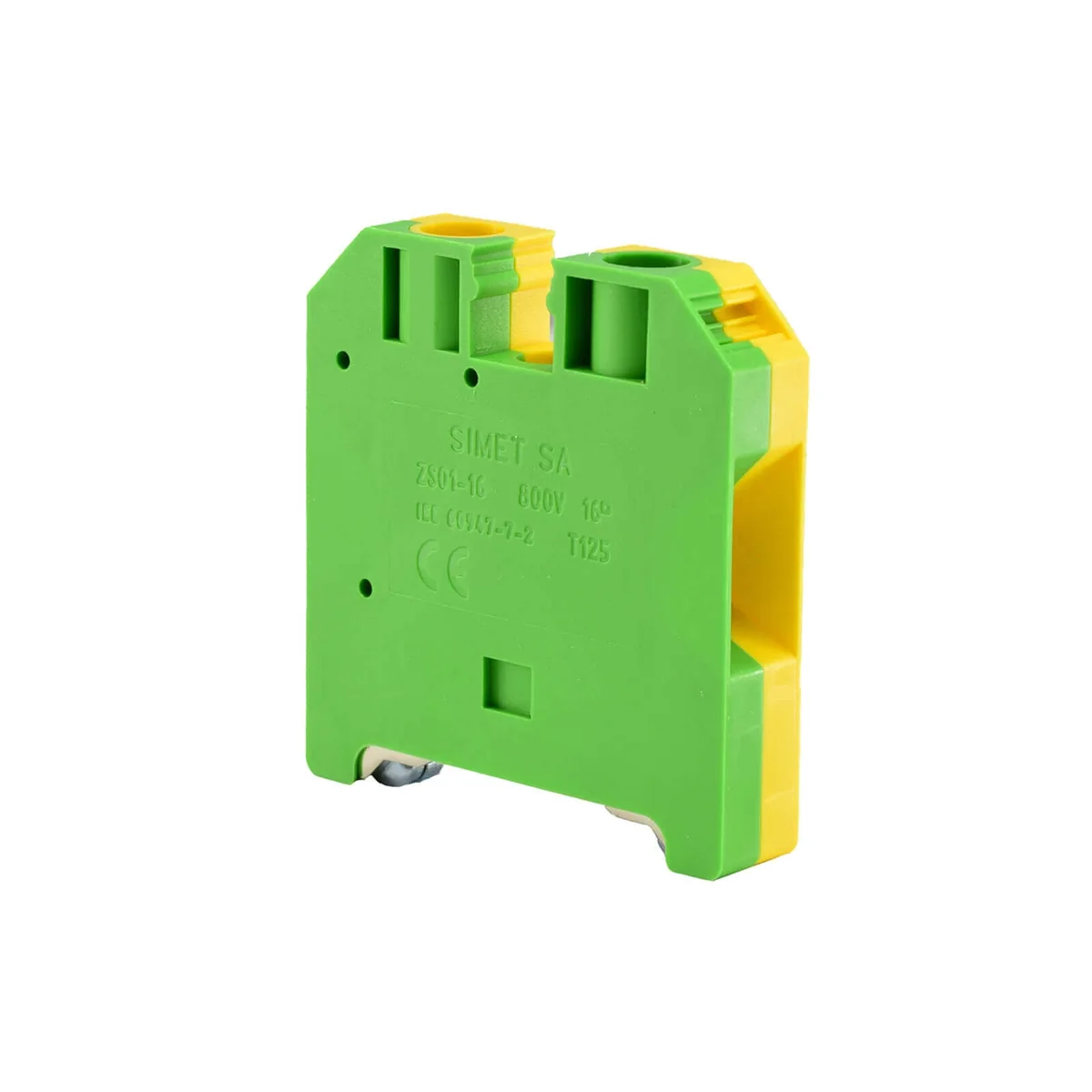

Protective threaded rail connector 16.0mm² TS-35 yellow-green 20pcs. 14603319

local index:
TEG090SIME
Catalog No:
14603319
EAN code:
5907813212710
Manufacturer: SIMET
Pieces in the package: 20
Price:
131,75 €
gross / pkg.
(including VAT 23%)
6,59 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Protective threaded rail connector 16.0mm² TS-35 yellow-green 20pcs.

Technical data

  • Pieces in the package
    20
  • PKWIU
    27.33.13.0

Other technical data

  • PEN function possible
    Yes
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Sideways
  • Number of levels
    1
  • Material insulation body
    Thermoplastic
  • Width/grid dimension
    12 mm
  • Wysokość przy najniższym sposobie montażu
    55 mm
  • Connectable conductor cross section solid-core
    4 ... 16 mm²
  • Closing plate required
    No
  • Length
    56 mm
  • Colour
    Green/yellow
  • Type of electrical connection 2
    Screw connection
  • Operating temperature
    -25 ... 125 °C
  • Number of clamp positions per level
    2
  • Inflammability class of insulation material according to with UL94
    V0
  • Connectable conductor cross section fine-strand without cable end sleeve
    2,5 ... 10 mm²
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    2,5 ... 10 mm²
