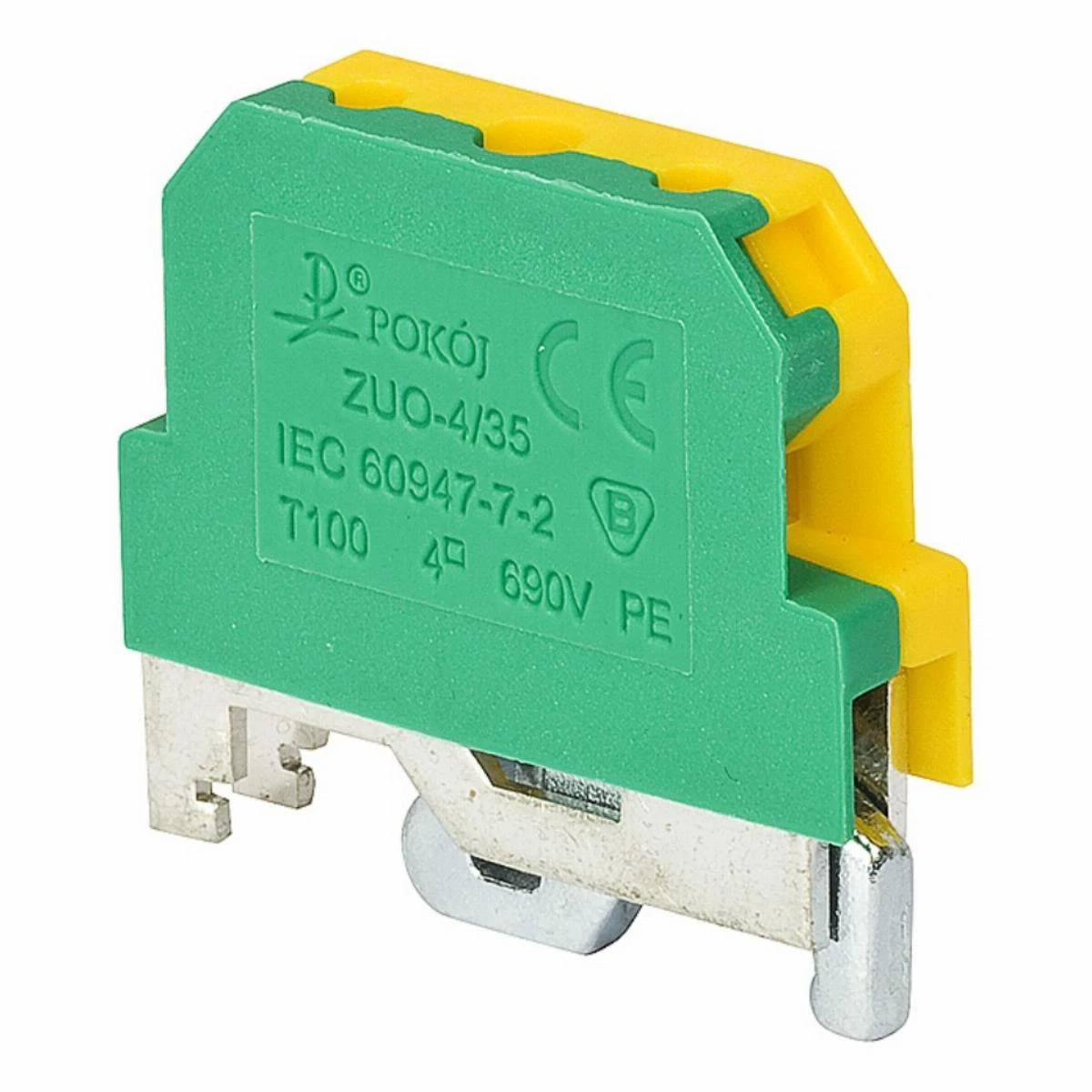

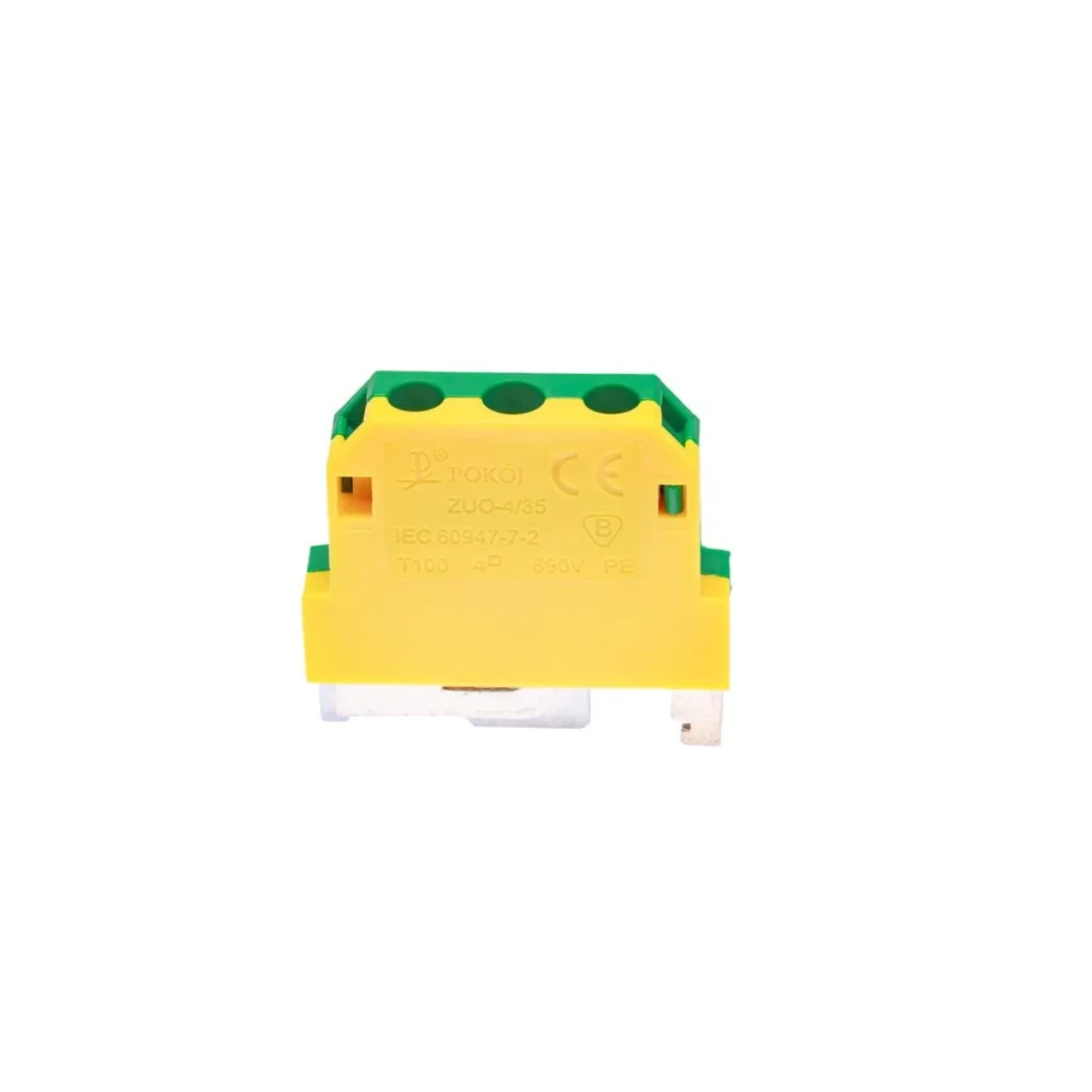

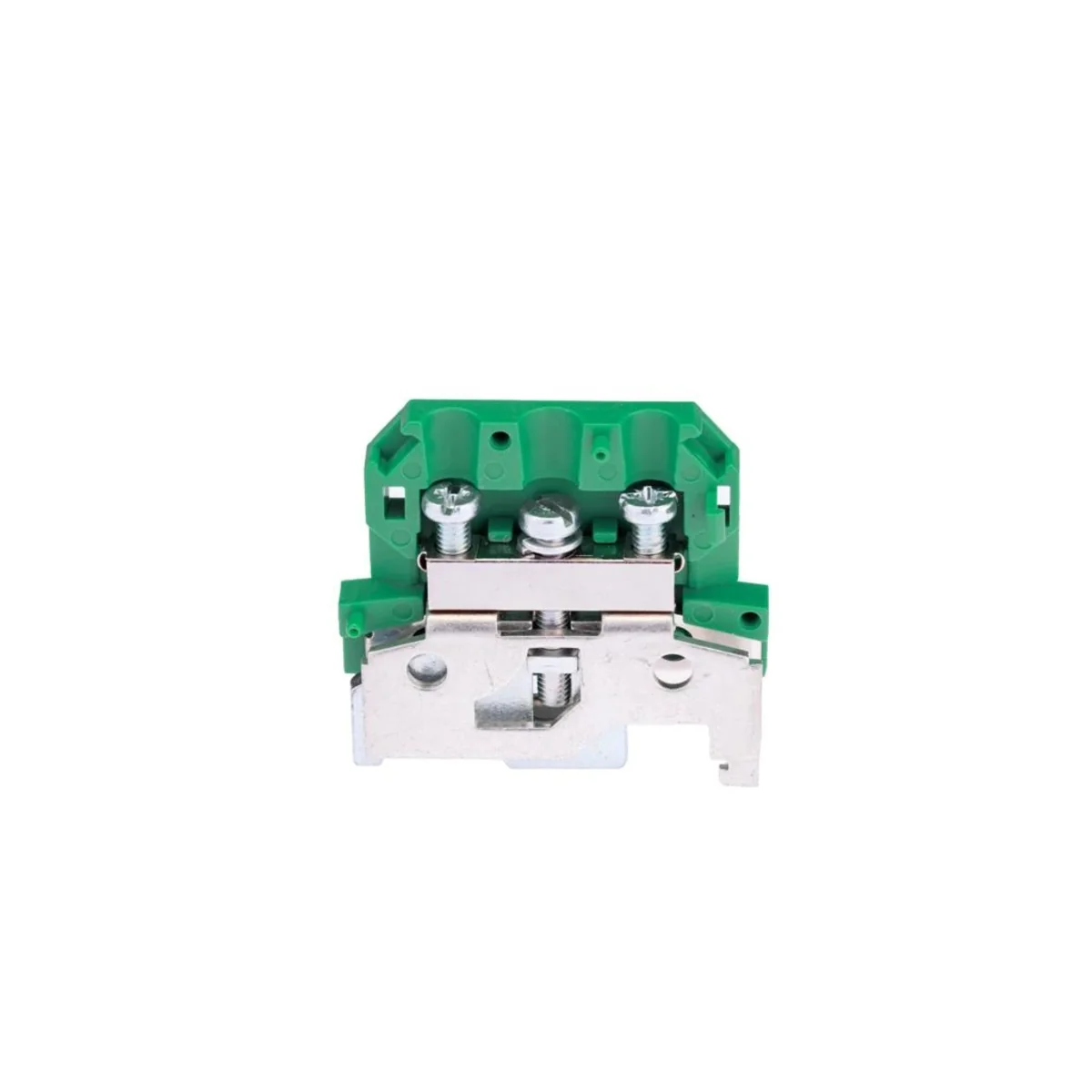

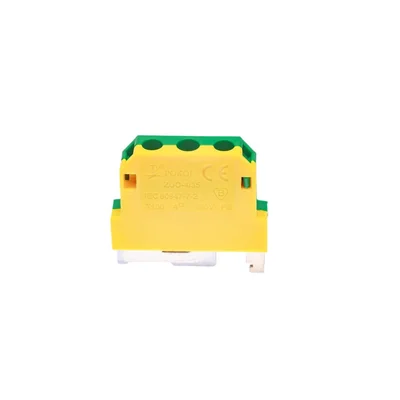

Protective threaded coupling ZUO-4/35 colour A11-5C3Z

local index:
TEG645POKO
Catalog No:
A11-5C3Z
EAN code:
5902626196745
Manufacturer: POKÓJ
Color: Yellow-green
Price:
3,71 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 57 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Protective threaded coupling ZUO-4/35 colour

Technical data

  • Color
    Yellow-green
  • PKWIU
    27.12.40

Other technical data

  • PEN function possible
    Yes
  • Connectable conductor cross section fine-strand with cable end sleeve
    0.75 ... 2.5 mm²
  • Connectable conductor cross section multi-wired
    0.75 ... 2.5 mm²
  • Type of electrical connection 2
    Screw connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    -25 ... 100 °C
  • Width/grid dimension
    9 mm
  • Length
    42.5 mm
  • Colour
    Green/yellow
  • Connectable conductor cross section fine-strand without cable end sleeve
    0.75 ... 2.5 mm²
  • Connectable conductor cross section solid-core
    0.75 ... 4 mm²
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Atop
  • Number of clamp positions per level
    1
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V2
  • Wysokość przy najniższym sposobie montażu
    40.5 mm
  • Closing plate required
    No
