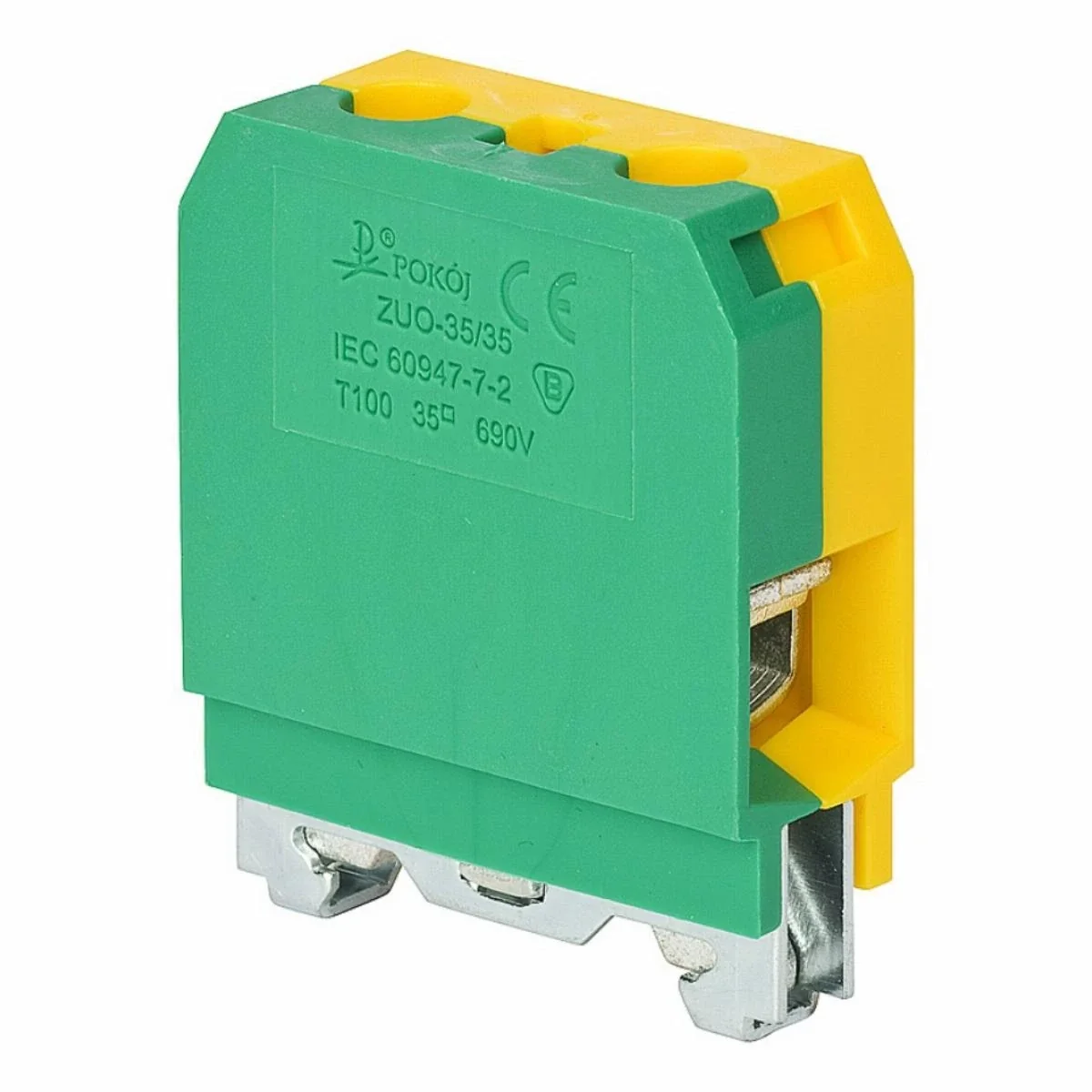

Protective threaded coupling ZUO-35/35 colour A11-5G3Z
local index:
TES197POKO
Catalog No:
A11-5G3Z
EAN code:
5902626196752
Manufacturer:
POKÓJ
Pieces in the package: 25
Price:
417,17 €
gross / pkg.
(including VAT 23%)
16,69 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Protective threaded coupling ZUO-35/35 colour
Technical data
-
Pieces in the package25
-
PKWIU27.12.40
Other technical data
-
PEN function possibleYes
-
Connectable conductor cross section fine-strand with cable end sleeve4 ... 25 mm²
-
Connectable conductor cross section multi-wired1 ... 10 mm²
-
Type of electrical connection 2Screw connection
-
Number of levels1
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Operating temperature-25 ... 100 °C
-
Width/grid dimension19 mm
-
Length50 mm
-
ColourGreen/yellow
-
Connectable conductor cross section fine-strand without cable end sleeve4 ... 25 mm²
-
Connectable conductor cross section solid-core4 ... 35 mm²
-
Type of electrical connection 1Screw connection
-
Connection positionAtop
-
Number of clamp positions per level1
-
Material insulation bodyThermoplastic
-
Inflammability class of insulation material according to with UL94V2
-
Wysokość przy najniższym sposobie montażu63 mm
-
Closing plate requiredNo
Manufacturer details
-
ManufacturerPOKÓJ S.E.
-
Address91-202 Łódź Warecka 1 Polska
-
