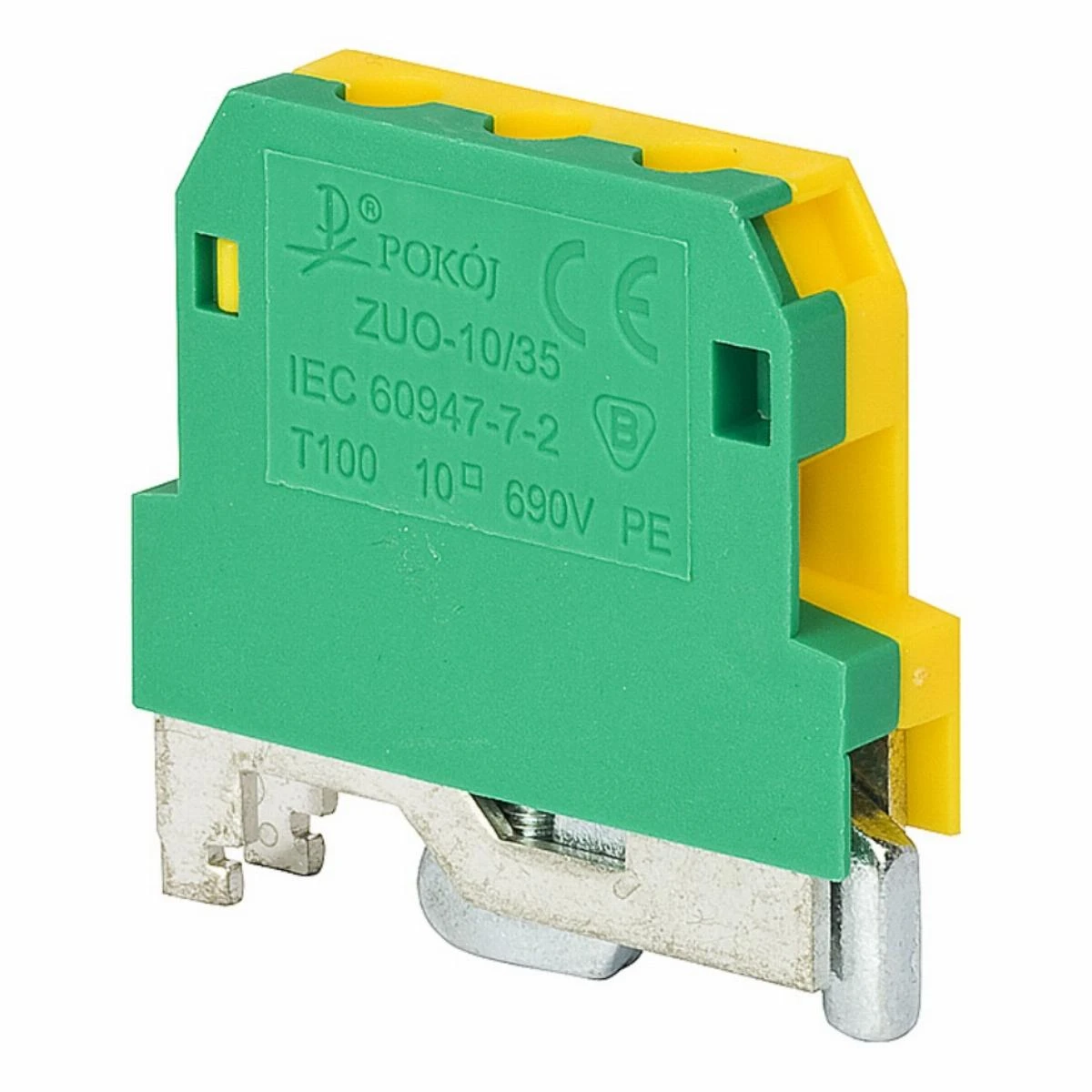

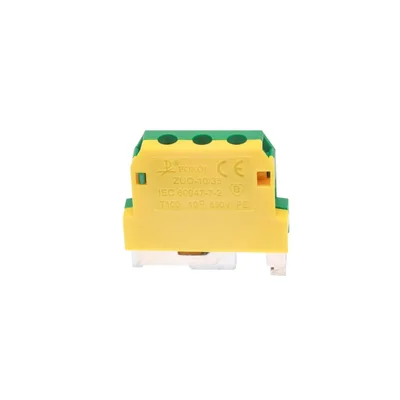

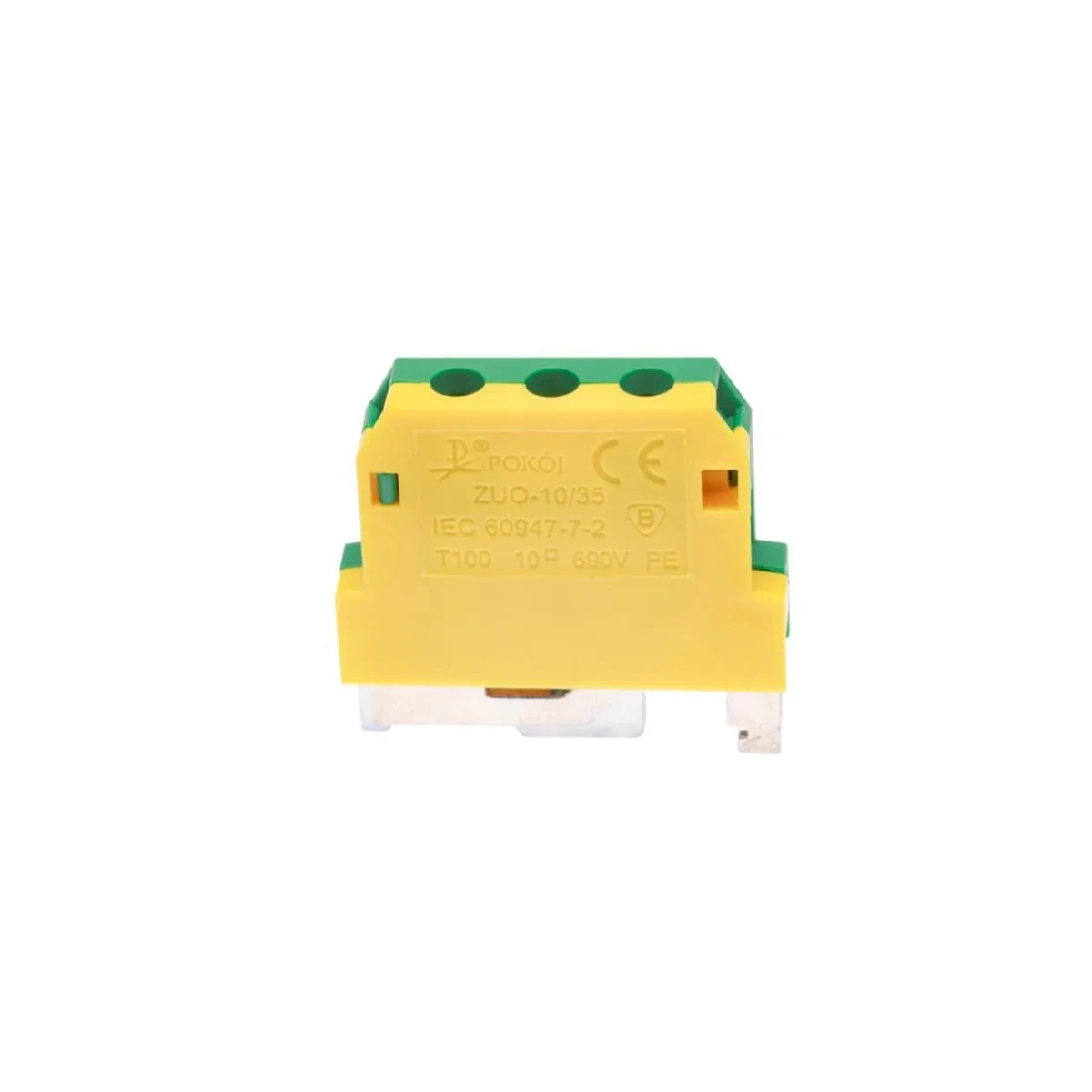

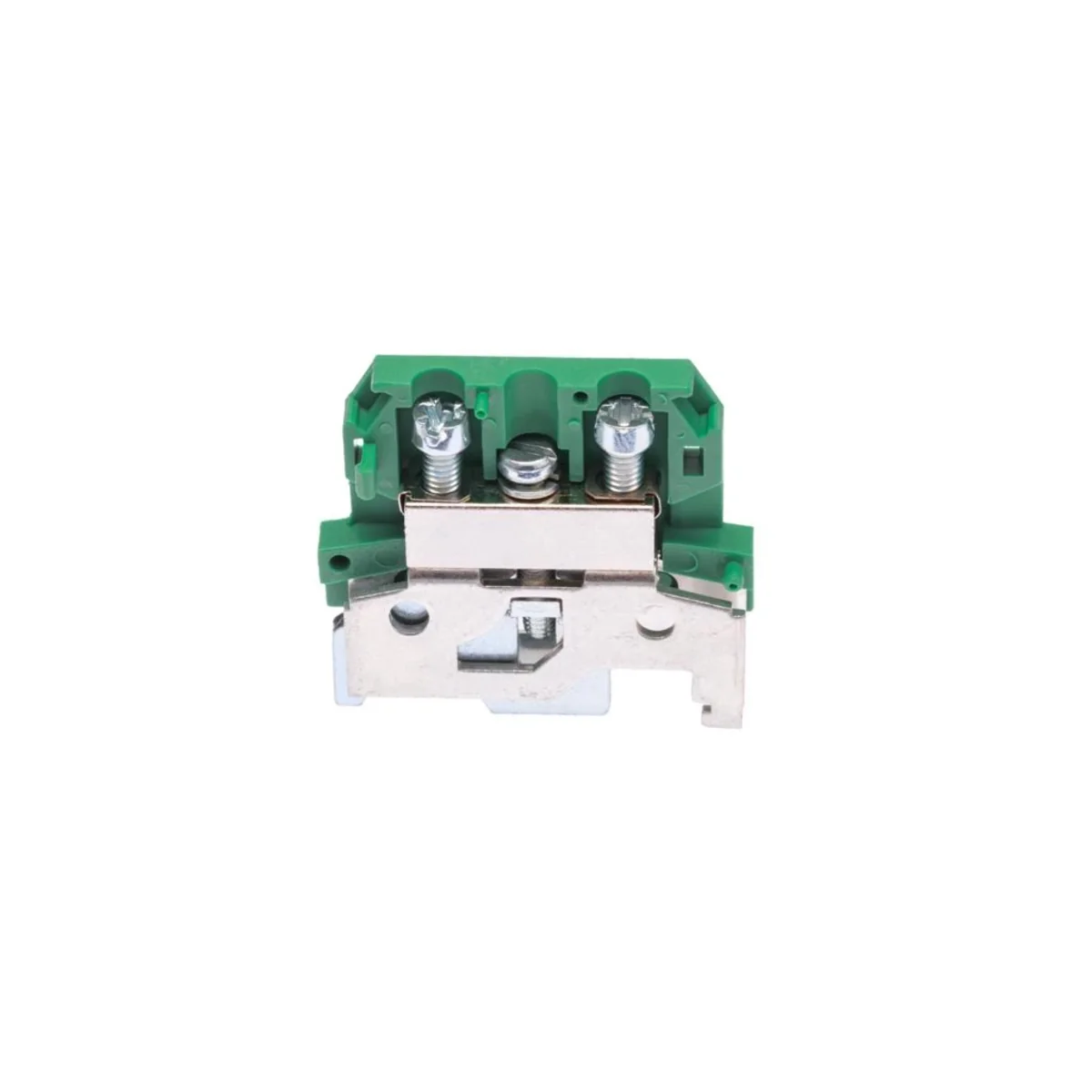

Protective threaded coupling ZUO-10/35 colour A11-5D3Z
local index:
TES300POKO
Catalog No:
A11-5D3Z
EAN code:
5902626186555
Manufacturer:
POKÓJ
Color: Yellow-green
Price:
4,44 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Protective threaded coupling ZUO-10/35 colour
Technical data
-
ColorYellow-green
-
PKWIU27.12.40
Other technical data
-
PEN function possibleYes
-
Connectable conductor cross section fine-strand with cable end sleeve1.5 ... 6 mm²
-
Connectable conductor cross section multi-wired0.75 ... 2.5 mm²
-
Type of electrical connection 2Screw connection
-
Number of levels1
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Operating temperature-25 ... 100 °C
-
Width/grid dimension9 mm
-
Length42 mm
-
ColourGreen/yellow
-
Connectable conductor cross section fine-strand without cable end sleeve1.5 ... 6 mm²
-
Connectable conductor cross section solid-core1.5 ... 10 mm²
-
Type of electrical connection 1Screw connection
-
Connection positionAtop
-
Number of clamp positions per level1
-
Material insulation bodyThermoplastic
-
Inflammability class of insulation material according to with UL94V2
-
Wysokość przy najniższym sposobie montażu43.5 mm
-
Closing plate requiredNo
Manufacturer details
-
ManufacturerPOKÓJ S.E.
-
Address91-202 Łódź Warecka 1 Polska
-
