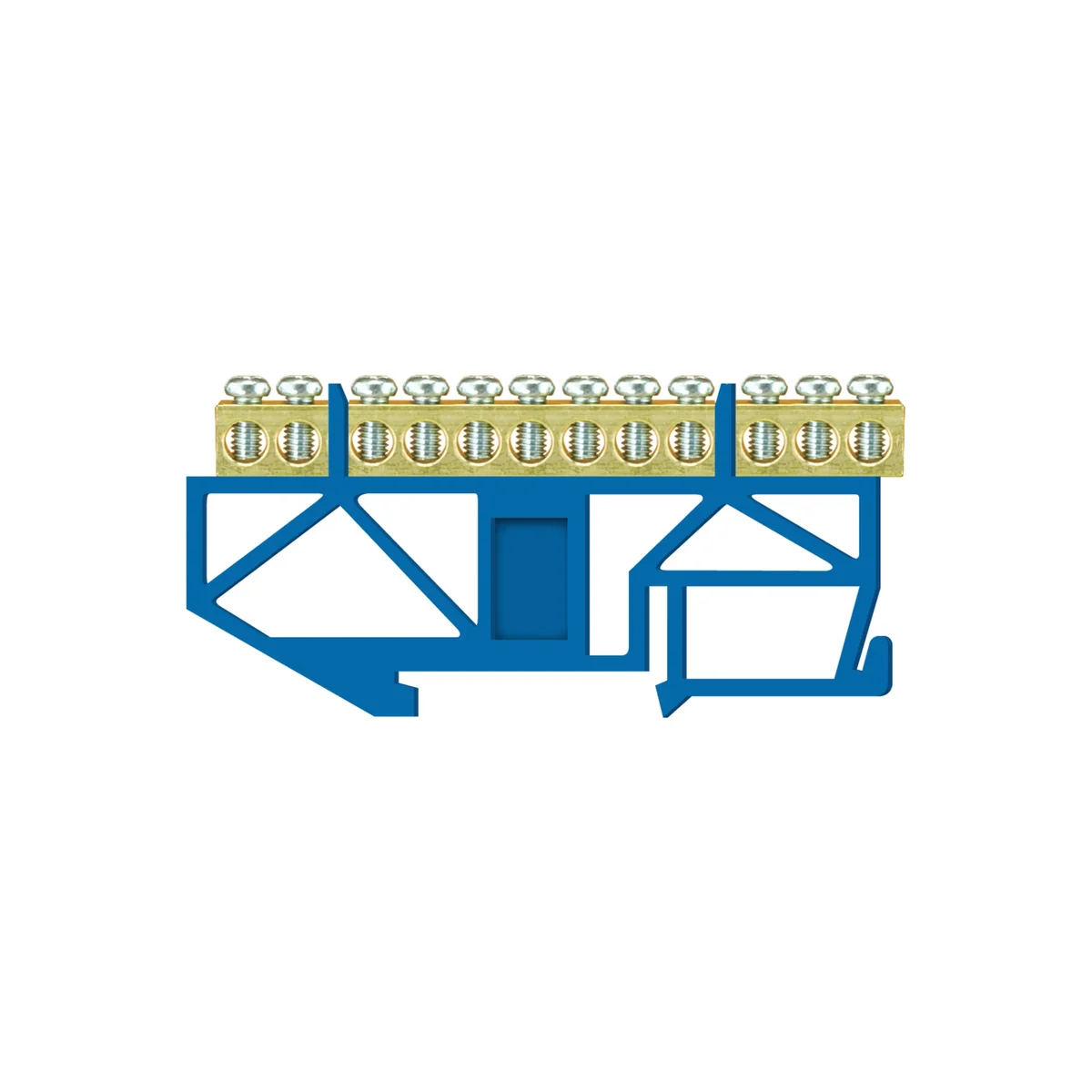

Protective terminal block LZ 12/N, high base, 12x16mm2, 32A, 400V, blue, IP20 E.4045

Name: Protective terminal block LZ 12/N, high base, 12x16mm2, 32A, 400V, blue, IP20
Brand: PAWBOL
SKU: TEG036PAWB
Price: 9.42 PLN
Availability: BackOrder

local index:

TEG036PAWB

Catalog number:

E.4045

EAN code:

5907484333035

Protective terminal block LZ 12/N, high base, 12x16mm2, 32A, 400V, blue, IP20

Click on the photo to enlarge

Manufacturer: PAWBOL

Price:

9,42 zł

gross / pcs.

(including VAT 23%)

up to 4 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Technical data Manufacturer details Bulk packaging

Technical data

PKWIU

27.33.13.0

Other technical data

Drill hole distance centrically

6.5 mm
Connectable conductor cross section fine-strand without cable end sleeve

1 ... 16 mm²
Connectable conductor cross section solid-core

1 ... 16 mm²
Rated current In

16 A
Type of electrical connection 1

Screw connection
Number of poles

1
Mounting method

DIN rail (top hat rail) 35 mm
Operating temperature

-30 ... 80 °C
Halogen free

No
Height

43 mm
Closing plate required

No
Transparent

No

Explosion-tested version 'Ex e'

No
Connectable conductor cross section fine-strand with cable end sleeve

1 ... 10 mm²
Connectable conductor cross section multi-wired

1 ... 10 mm²
Rated voltage

400 V
Type of electrical connection 2

Other
Number of clamp positions per pole

12
Material insulation body

Thermoplastic
Inflammability class of insulation material according to with UL94

Other
Width

12 mm
Depth

43 mm
Colour

Blue

Manufacturer details

Manufacturer

PAWBOL Sp. z o.o.
Address

32-640 Zator Władysława Grabskiego 29 Polska
E-mail

firma@pawbol.pl

Bulk packaging

A kind of package	Bez opakowania	Karton
Quantity	1 pcs.	20 pcs.
Weight (kg)	0,085	-
Width (m)	0,012	-
Length (m)	0,004	-
Depth (m)	0,045	-
