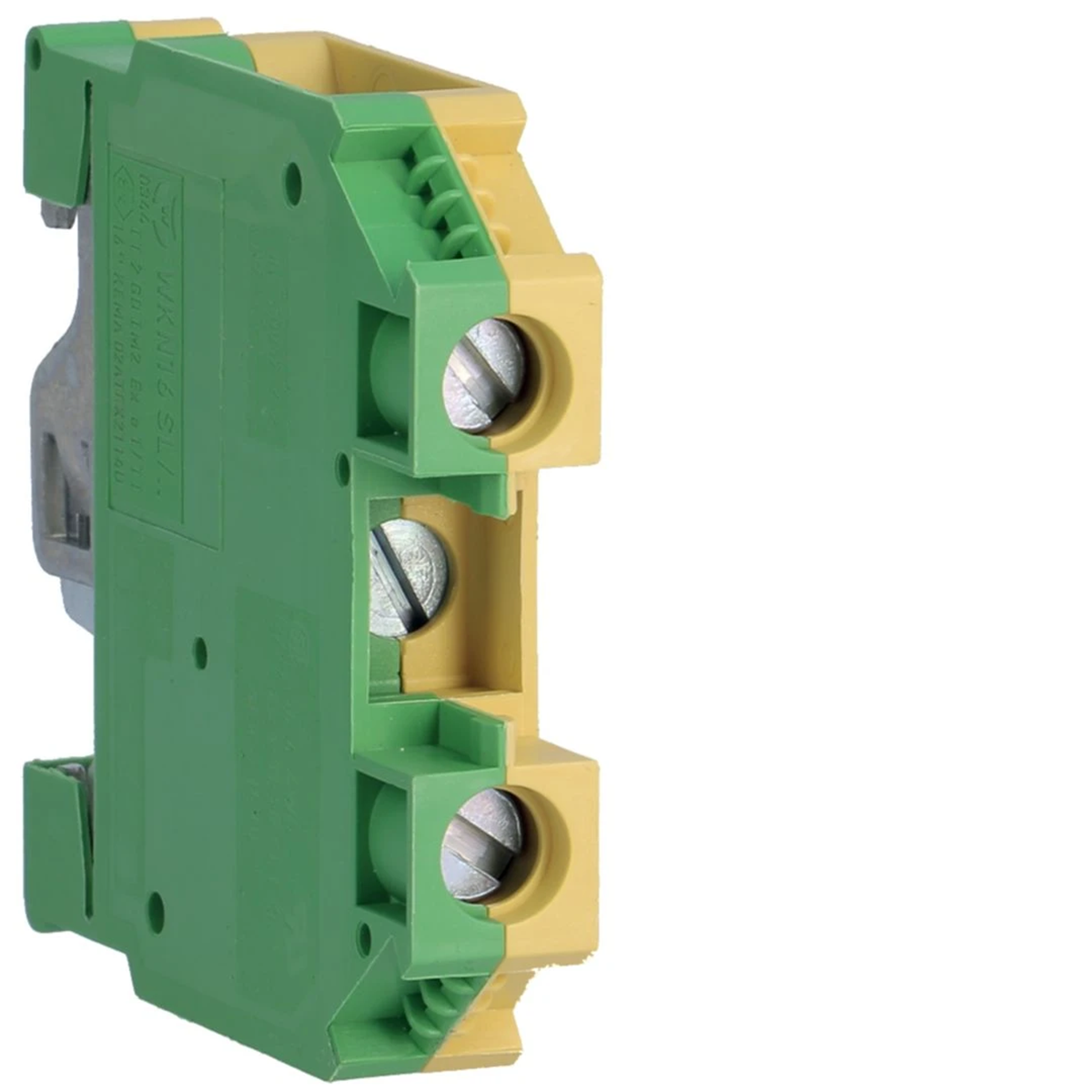

Protective terminal block, 16mm2 KXB16E

local index:
TES038HAGE
Catalog No:
KXB16E
EAN code:
3250613942168
Manufacturer: HAGER
Depth [mm]: 12
Color: Yellow-green
Installation: DIN rail
Price:
8,88 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Leakage resistance: KC > 600
Temperature resistance: 120°C
Un = 800 V at 2.5 and 4 mm2
Un = 400 V at 10 mm2 and larger
Possibility of connecting two conductors with the same cross-section to one terminal screw (in the case of PE only 1 conductor)
Easy wire entry into the open terminal thanks to the tapered entry
Easy to insert a screwdriver into the lowered clamping screws
Idle/idle after loosening clamp screws – especially important for mechanical screwdrivers
All parts permanently fixed in the carrier of the clamps
The same level up to 35 mm2, in order to maintain the required insulation distances between individual groups of terminals, or at the beginning or end of a group of terminals, a partition/end plate should be placed.

Technical data

  • Depth [mm]
    12
  • Installation
    DIN rail
  • Height [mm]
    57.5
  • Color
    Yellow-green
  • Width [mm]
    57.5
  • PKWIU
    27.33.13.0

Other technical data

  • Mounting method
    Other
  • Colour
    Green/yellow
  • Material insulation body
    Thermoplastic

Bulk packaging

A kind of package Paleta Karton
Quantity 10000 pcs. 1 pcs. 50 pcs.
Weight (kg) 760,000 0,073 3,682
Width (m) 0,800 0,058 0,130
Length (m) 1,050 0,012 0,065
Depth (m) 1,200 0,058 0,320
