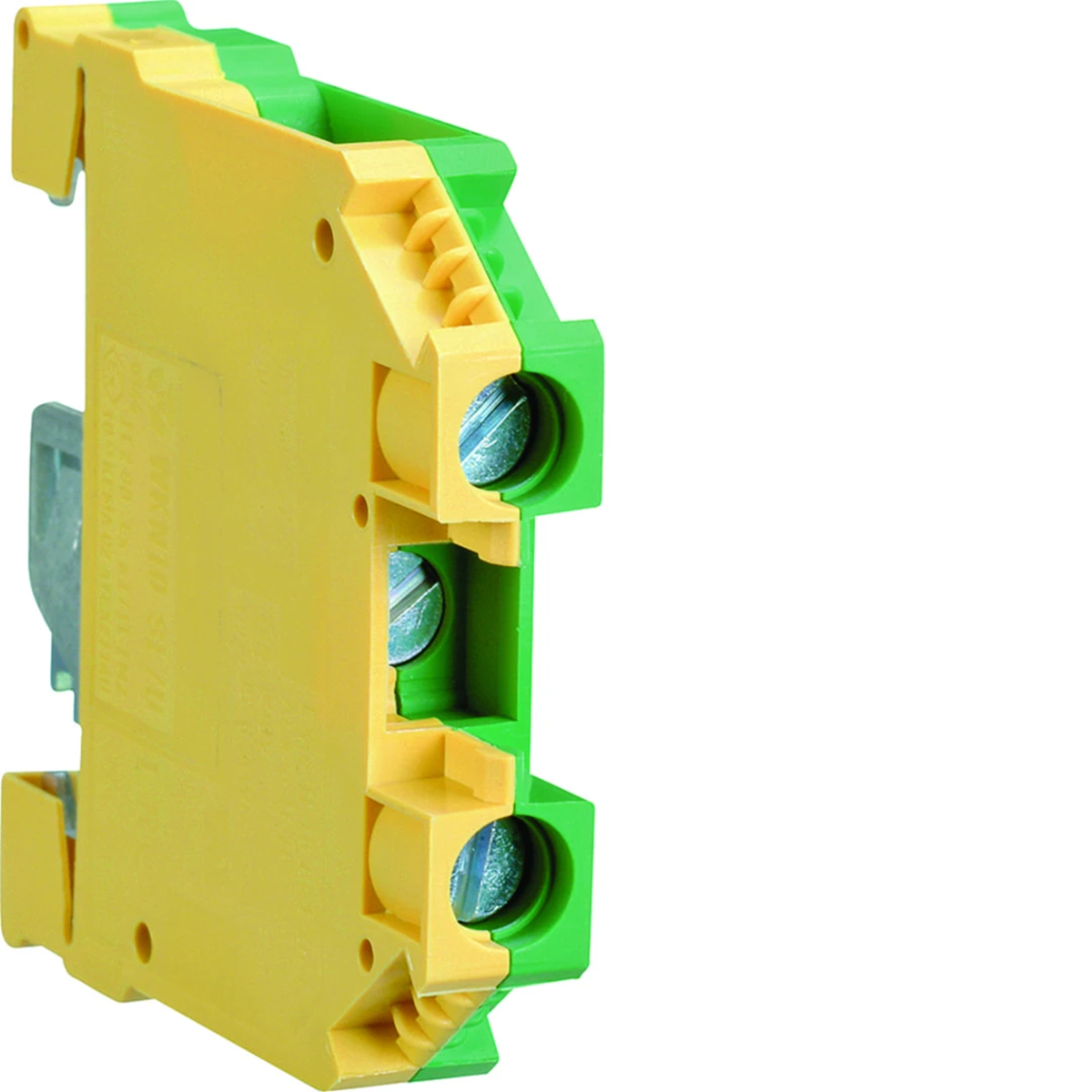

Protective terminal block, 10mm2 KXB10E

Leakage resistance: KC > 600
Temperature resistance: 120°C
Un = 800 V at 2.5 and 4 mm2
Un = 400 V at 10 mm2 and larger
Possibility of connecting two conductors with the same cross-section to one terminal screw (in the case of PE only 1 conductor)
Easy wire entry into the open terminal thanks to the tapered entry
Easy to insert a screwdriver into the lowered clamping screws
Idle/idle after loosening clamp screws – especially important for mechanical screwdrivers
All parts permanently fixed in the carrier of the clamps
The same level up to 35 mm2, in order to maintain the required insulation distances between individual groups of terminals, or at the beginning or end of a group of terminals, a partition/end plate should be placed.
