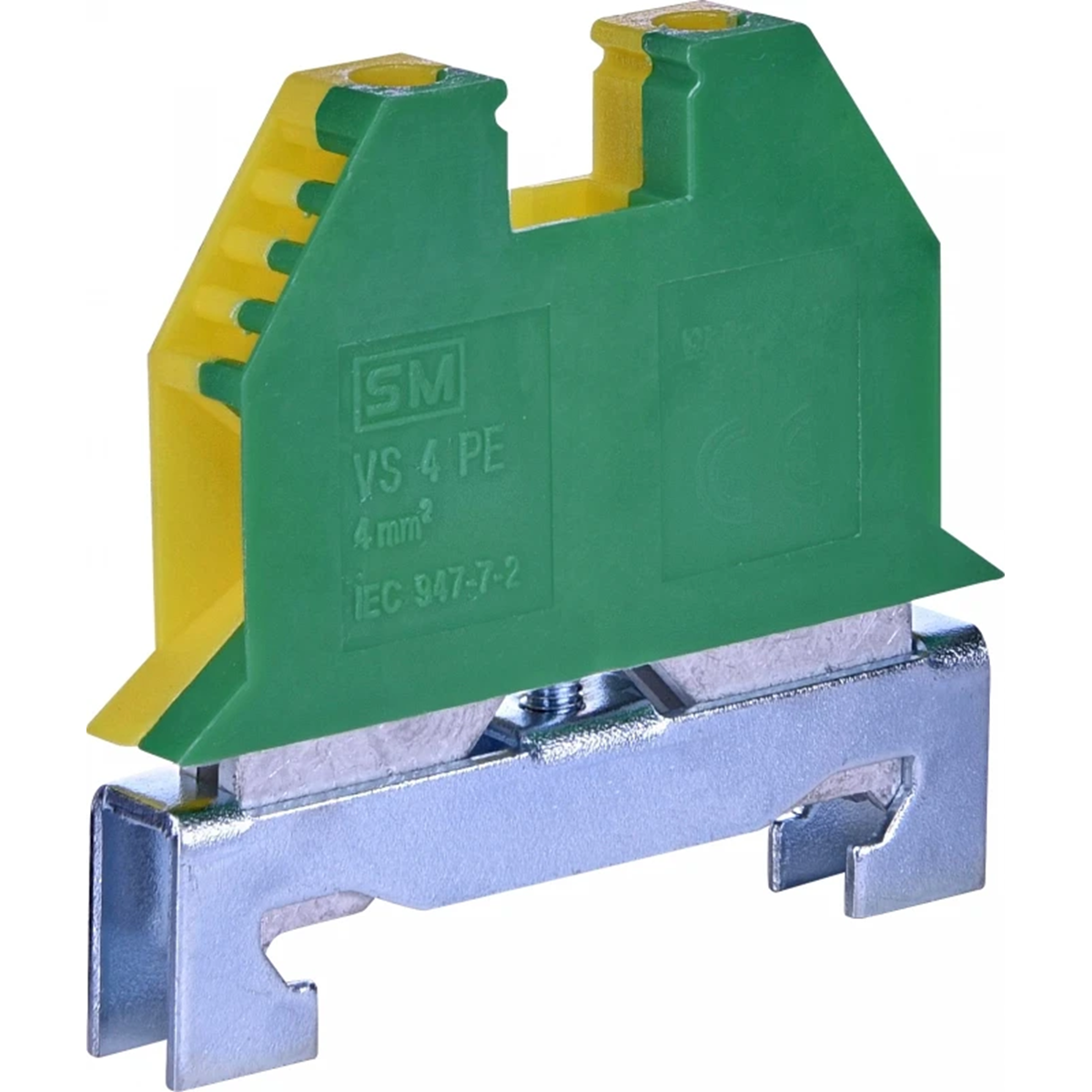

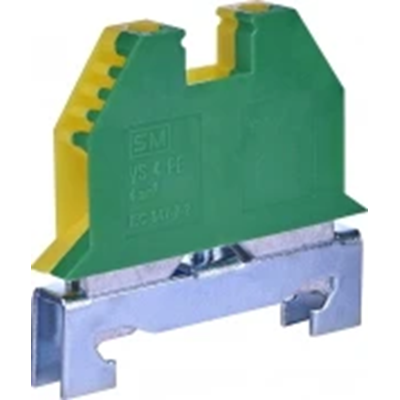

Protective terminal 4 mm2 VS 4 PE 003901476

local index:
TEG007ETIP
Catalog No:
003901476
EAN code:
5904722915893
Manufacturer: ETI POLAM
Color: Yellow-green
Installation: On the TH-35 rail
Dimensions [mm]: 48x43
Price:
3,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

For use, among others in low-voltage panels and junction and control boxes, in order to obtain functional and safe connections of electrical wires between electrical devices. Basic parameters, the knowledge of which is necessary for the proper operation of this type of products (i.e. connector type, rated voltage, permissible cable cross-section) are placed on each module.

Advantages:

  •  enclosures made of colored polyamide 66 (type VS) - non-flammable,
  •  rated current up to 415 A, →rated terminal cross-section from 2.5 up to 240 mm2;
  •  possibility of operation in temperatures from -40 to +100o C,
  •  possibility of bridging connectors,
  •  mounting on rail TH 15, TH 32, TH 35,
  •  the housing prevents the hand from touching live screws.

Technical data

  • Color
    Yellow-green
  • Dimensions [mm]
    48x43
  • Installation
    On the TH-35 rail
  • PKWIU
    27.33.13.0

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    1.5 ... 4 mm²
  • Rated current In
    35 A
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Closing plate required
    No
  • Connectable conductor cross section solid-core
    1.5 ... 6 mm²
  • Type of electrical connection 1
    Clip connection
  • Material insulation body
    Thermoplastic
  • Colour
    Green/yellow

Bulk packaging

A kind of package Pudełko
Quantity 75 pcs.
Weight (kg) 2,049
Volume (m3) 0,001
Width (m) 0,177
Length (m) 0,160
Depth (m) 0,050
