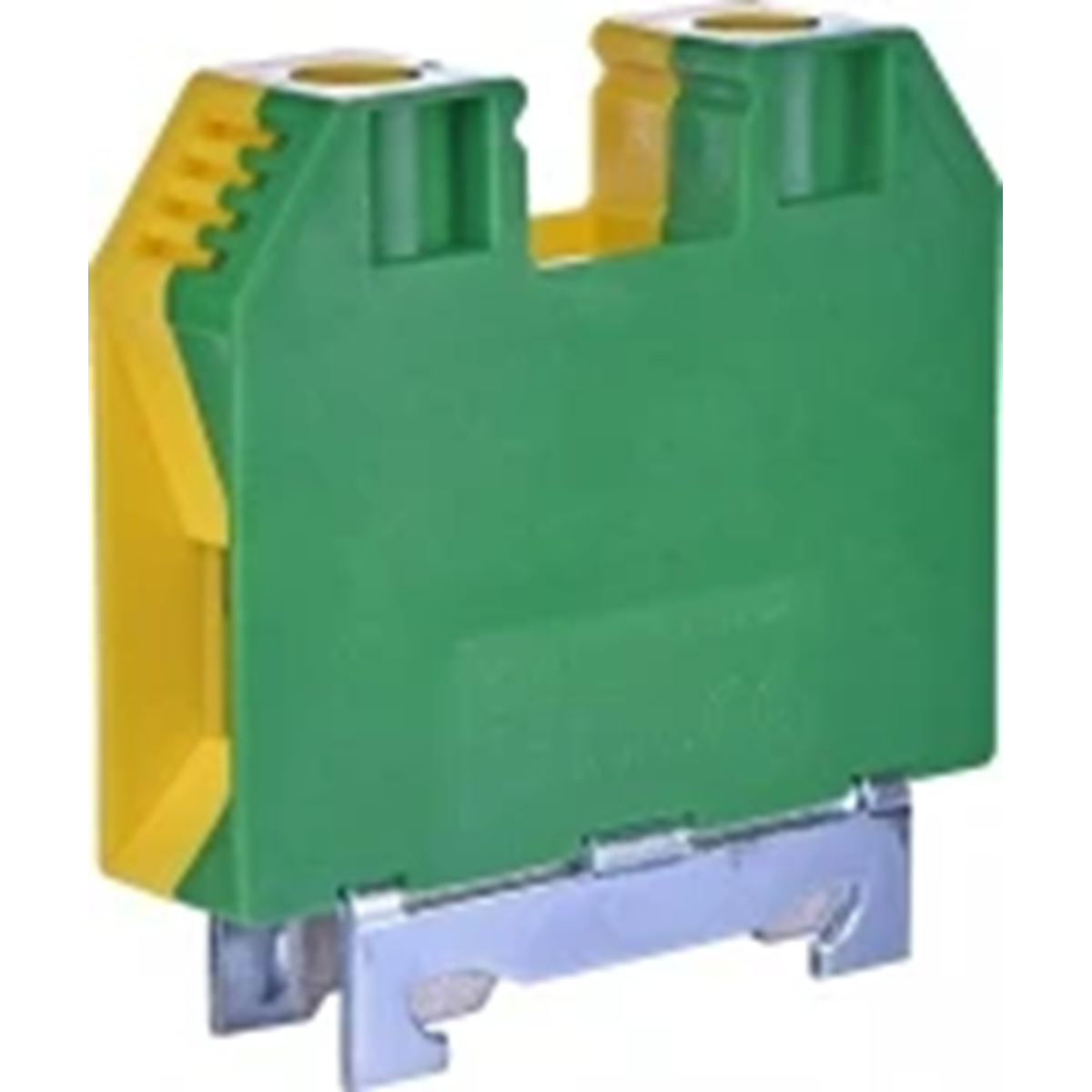

Protective splice 35 mm2 VS 35 PE 003901539

local index:
TEG010ETIP
Catalog No:
003901539
EAN code:
5904722915923
Manufacturer: ETI POLAM
Rated current [A]: 95
Price:
8,44 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

For use, among others in low-voltage panels and junction and control boxes, in order to obtain functional and safe connections of electrical wires between electrical devices. Basic parameters, the knowledge of which is necessary for the proper operation of this type of products (i.e. connector type, rated voltage, permissible cable cross-section) are placed on each module.

Advantages:

  •  enclosures made of colored polyamide 66 (type VS) - non-flammable,
  •  rated current up to 415 A, →rated terminal cross-section from 2.5 up to 240 mm2;
  •  possibility of operation in temperatures from -40 to +100o C,
  •  possibility of bridging connectors,
  •  mounting on rail TH 15, TH 32, TH 35,
  •  the housing prevents the hand from touching live screws.

Technical data

  • Rated current [A]
    95
  • PKWIU
    27.33.13.0

Other technical data

  • Connectable conductor cross section fine-strand without cable end sleeve
    10 ... 35 mm²
  • Rated current In
    95 A
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Closing plate required
    No
  • Connectable conductor cross section solid-core
    6 ... 35 mm²
  • Type of electrical connection 1
    Clip connection
  • Material insulation body
    Thermoplastic
  • Colour
    Green/yellow

Bulk packaging

A kind of package Pudełko
Quantity 20 pcs.
Weight (kg) 1,887
Volume (m3) 0,002
Width (m) 0,170
Length (m) 0,140
Depth (m) 0,070
