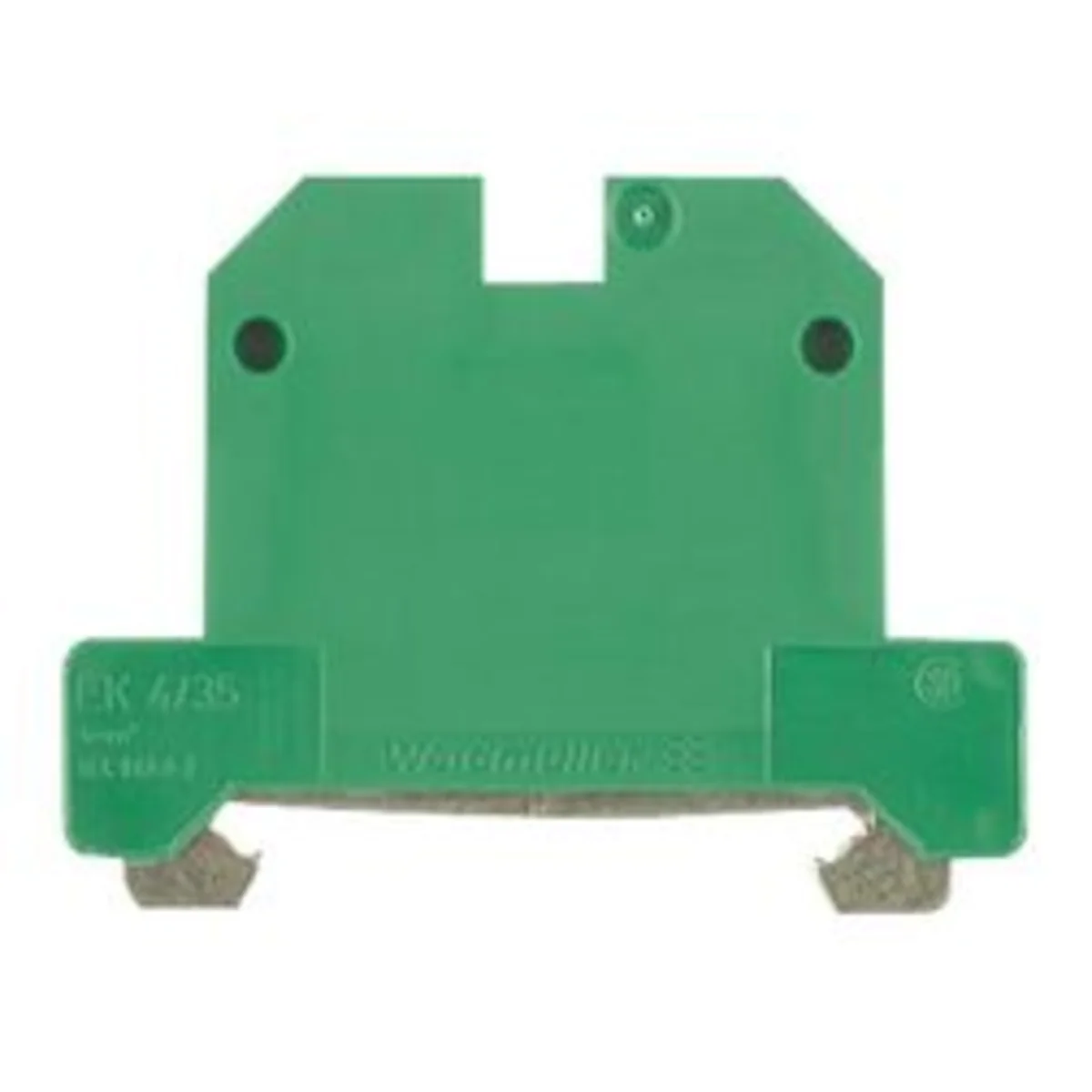

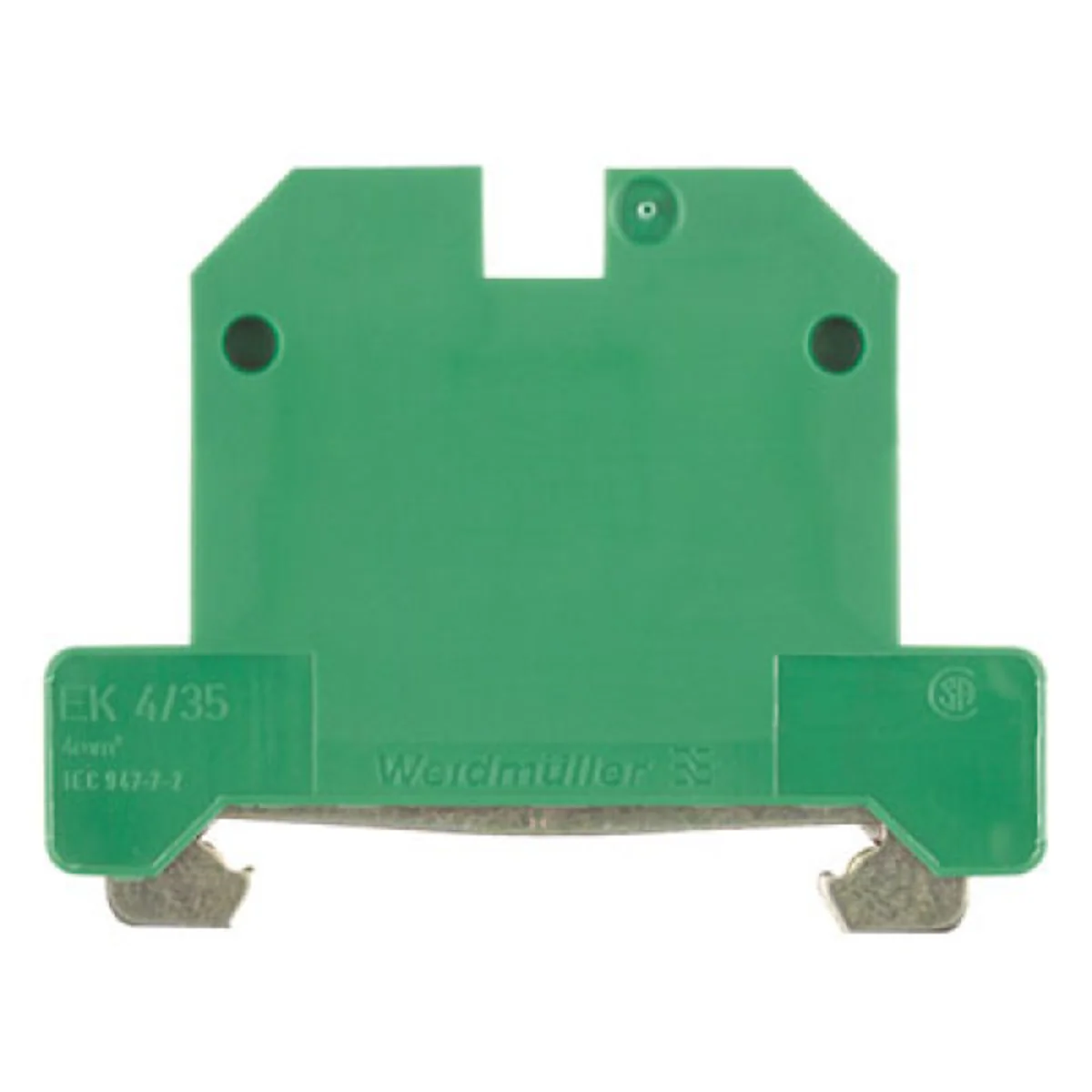

Protective coupling EK 4/35 0661160000

Name: Protective coupling EK 4/35
Brand: WEIDMULLER
SKU: TES136WEID
Price: 18.34 PLN
Availability: OutOfStock

local index:

TES136WEID

Catalog number:

0661160000

EAN code:

4008190038823

Click on the photo to enlarge

Manufacturer: WEIDMULLER

Installation: On the TH-35 rail

Cable section [mm2]: 4

See full description

Price:

18,34 zł

gross / pcs.

(including VAT 23%)

Out of stock

Add to inquiry

Print

Ask about the product

Product description Technical data Manufacturer details

Product description

Protective coupling EK 4/35

PEN function possible

No
Connectable conductor cross section fine-strand with cable end sleeve

0.5 ... 4 mm²
Connectable conductor cross section multi-wired

0.5 ... 4 mm²
Connection position

Sideways
Number of clamp positions per level

2
Material insulation body

Thermoplastic
Inflammability class of insulation material according to with UL94

V2
Wysokość przy najniższym sposobie montażu

56.5 mm
Closing plate required

No

Connectable conductor cross section fine-strand without cable end sleeve

0.5 ... 4 mm²
Connectable conductor cross section solid-core

0.5 ... 6 mm²
Type of electrical connection 1

Screw connection
Number of levels

1
Mounting method

DIN rail (top hat rail) 35 mm
Operating temperature

-50 ... 100 °C
Width/grid dimension

6.5 mm
Length

44 mm
Colour

Other
