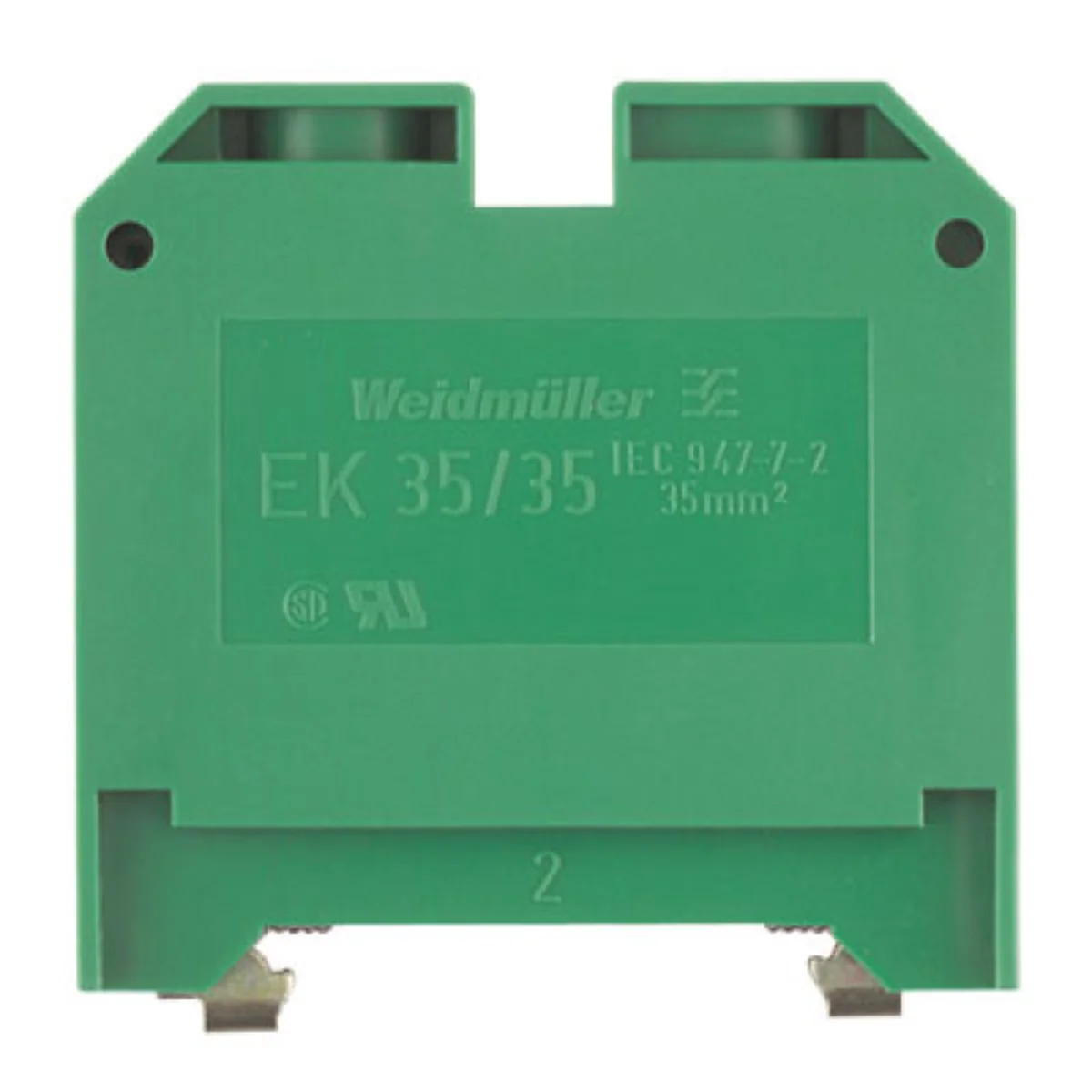

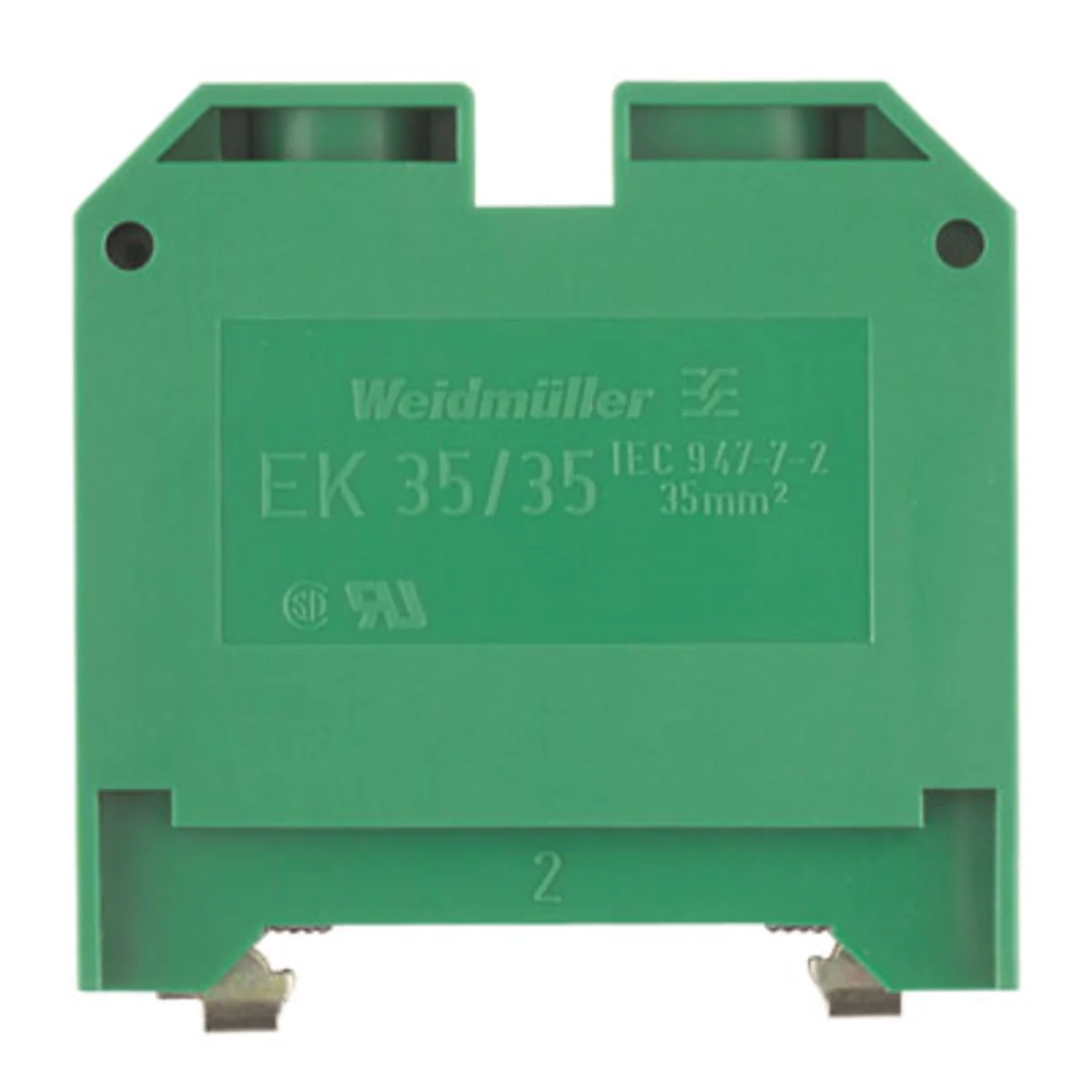

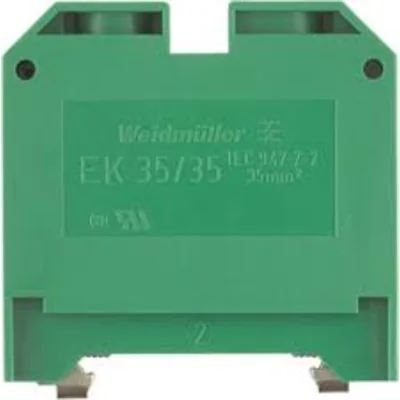

Protective coupling EK 35/35 0661460000

local index:
TES144WEID
Catalog No:
0661460000
EAN code:
4008190147600
Manufacturer: WEIDMULLER
Installation: On the TH-35 rail
Cable section [mm2]: 35
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
2,35 €
gross / pcs.
(including VAT 23%)
Last lowest price: 13,91 € gross
Base price: 13,91 € gross -83%
Delivery in 3h
Accessible 7 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

Protective coupling EK 35/35

Technical data

  • Installation
    On the TH-35 rail
  • Cable section [mm2]
    35

Other technical data

  • PEN function possible
    Yes
  • Connectable conductor cross section fine-strand with cable end sleeve
    10 ... 35 mm²
  • Connectable conductor cross section multi-wired
    16 ... 50 mm²
  • Connection position
    Sideways
  • Number of clamp positions per level
    2
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V2
  • Wysokość przy najniższym sposobie montażu
    58 mm
  • Closing plate required
    No
  • Connectable conductor cross section fine-strand without cable end sleeve
    10 ... 35 mm²
  • Connectable conductor cross section solid-core
    6 ... 16 mm²
  • Type of electrical connection 1
    Screw connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    -50 ... 100 °C
  • Width/grid dimension
    16 mm
  • Length
    60 mm
  • Colour
    Other
