Protective clamp 1x25 4x10 for yellow-green rail with cover E.4125P

Name: Protective clamp 1x25 4x10 for yellow-green rail with cover
Brand: PAWBOL
SKU: TEG033PAWB
Price: 2.44 PLN

local index:

TEG033PAWB

Catalog No:

E.4125P

EAN code:

5901350822449

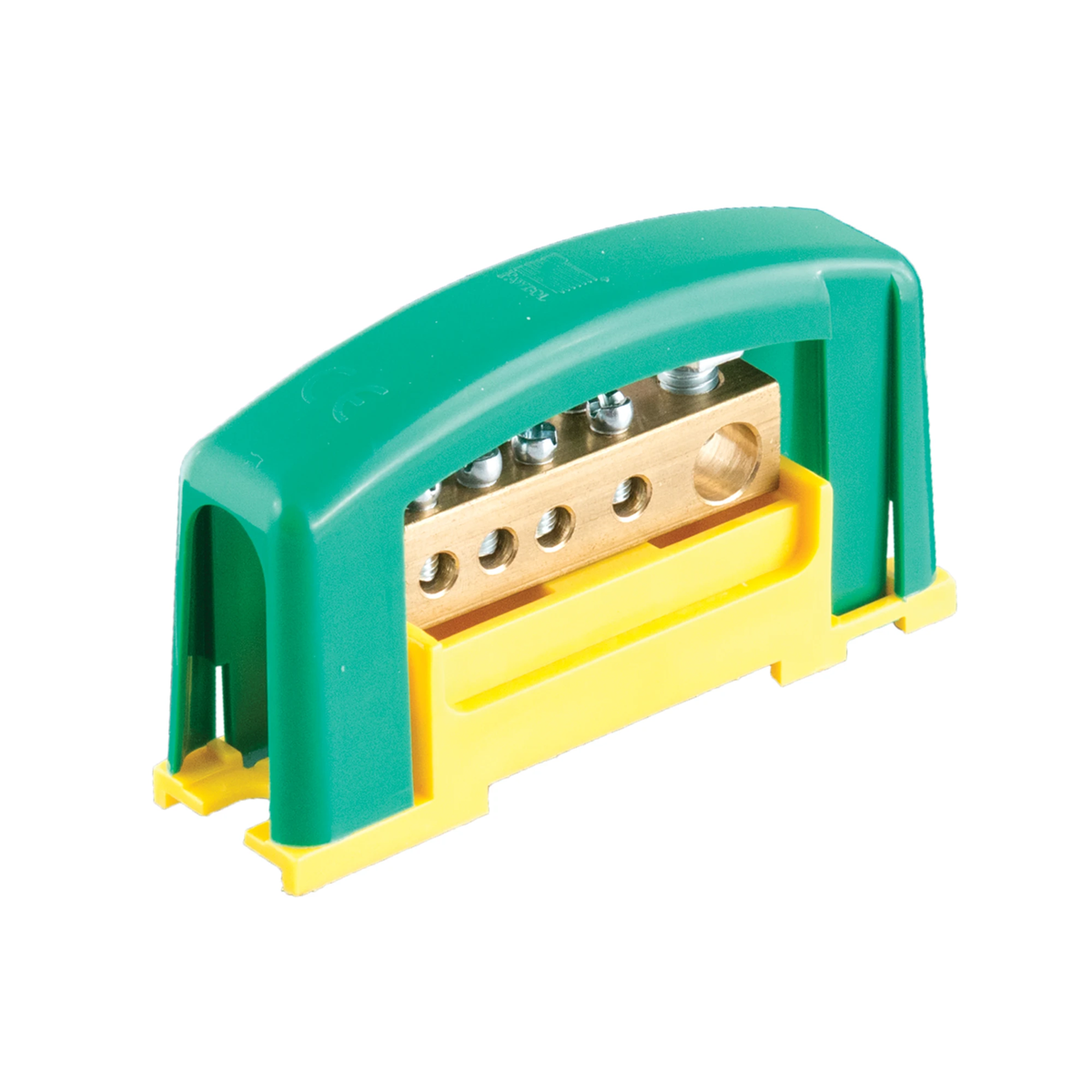

Protective clamp 1x25 4x10 for yellow-green rail with cover

Click on the photo to enlarge

Manufacturer: PAWBOL

Depth [mm]: 81

Color: Yellow-green

Number of poles: 1

See full description

Price:

2,44 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Protective clamp (1x25.4x10) yellow-green E.4125P PAWBOL intended for mounting in switchgears, cabinets or distribution boxes. It has the possibility of mounting on a TH35 rail and screws permanently on the panel, cable, mounting holes, DIN rail. It was made of high-quality materials. product in yellow and green.

Technical data

Depth [mm]

81
Number of poles

1
Width [mm]

22
PKWIU

27.33.13.0

Color

Yellow-green
Installation

On the TH-35 rail
Height [mm]

46

Other technical data

Drill hole distance centrically

7 mm
Connectable conductor cross section fine-strand without cable end sleeve

10 ... 25 mm²
Connectable conductor cross section solid-core

10 ... 25 mm²
Rated current In

100 A
Type of electrical connection 1

Screw connection
Number of poles

1
Mounting method

DIN rail (top hat rail) 35 mm
Operating temperature

-30 ... 80 °C
Closing plate required

No
Transparent

No

Explosion-tested version 'Ex e'

No
Connectable conductor cross section fine-strand with cable end sleeve

10 ... 25 mm²
Connectable conductor cross section multi-wired

10 ... 25 mm²
Rated voltage

400 V
Type of electrical connection 2

Other
Number of clamp positions per pole

5
Material insulation body

Thermoplastic
Inflammability class of insulation material according to with UL94

Other
Colour

Green/yellow
