el12 Connecting cables and wires Connectors Threaded fittings Porcelain threaded connector 4mm2 3-way CPO-5A-3P 20pcs.

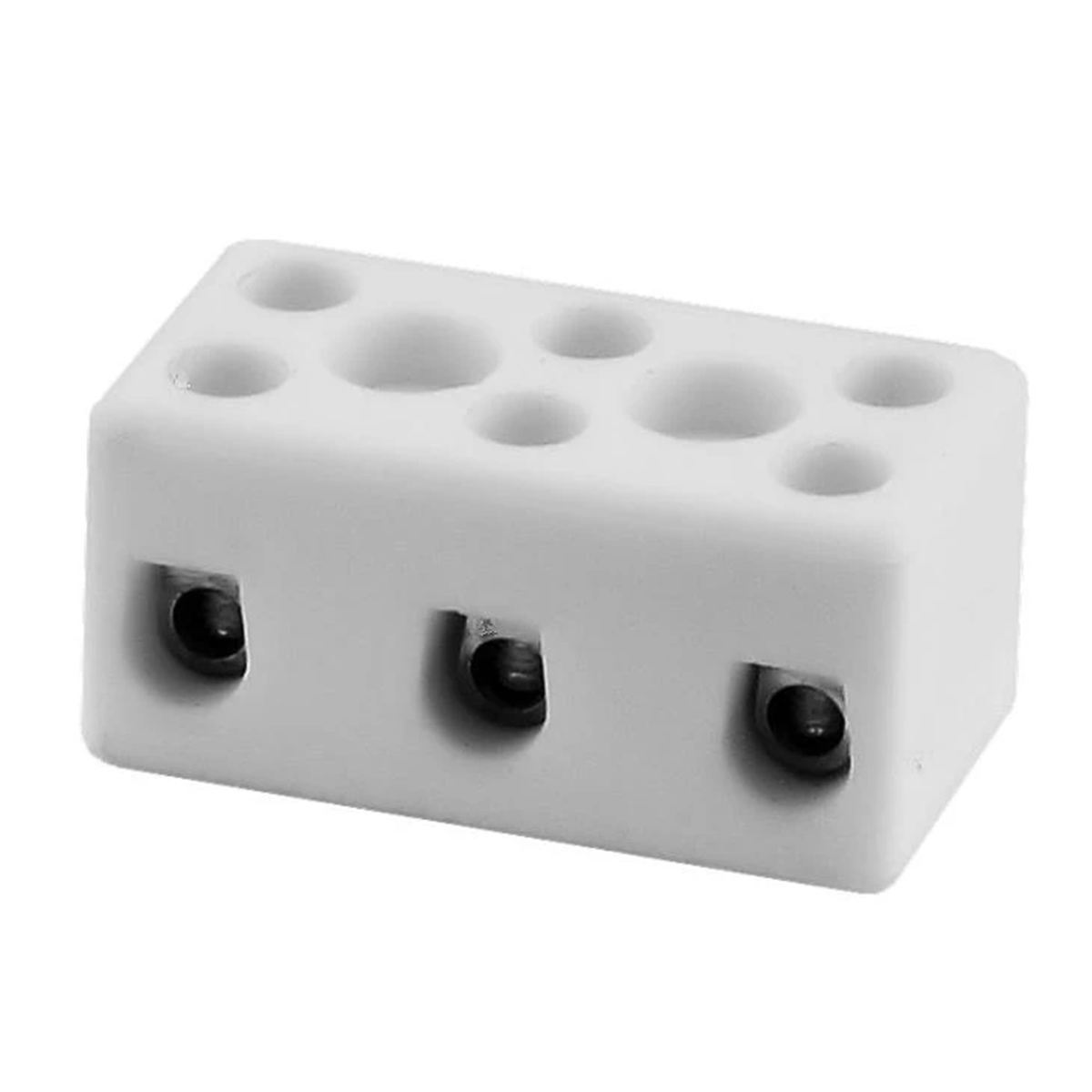

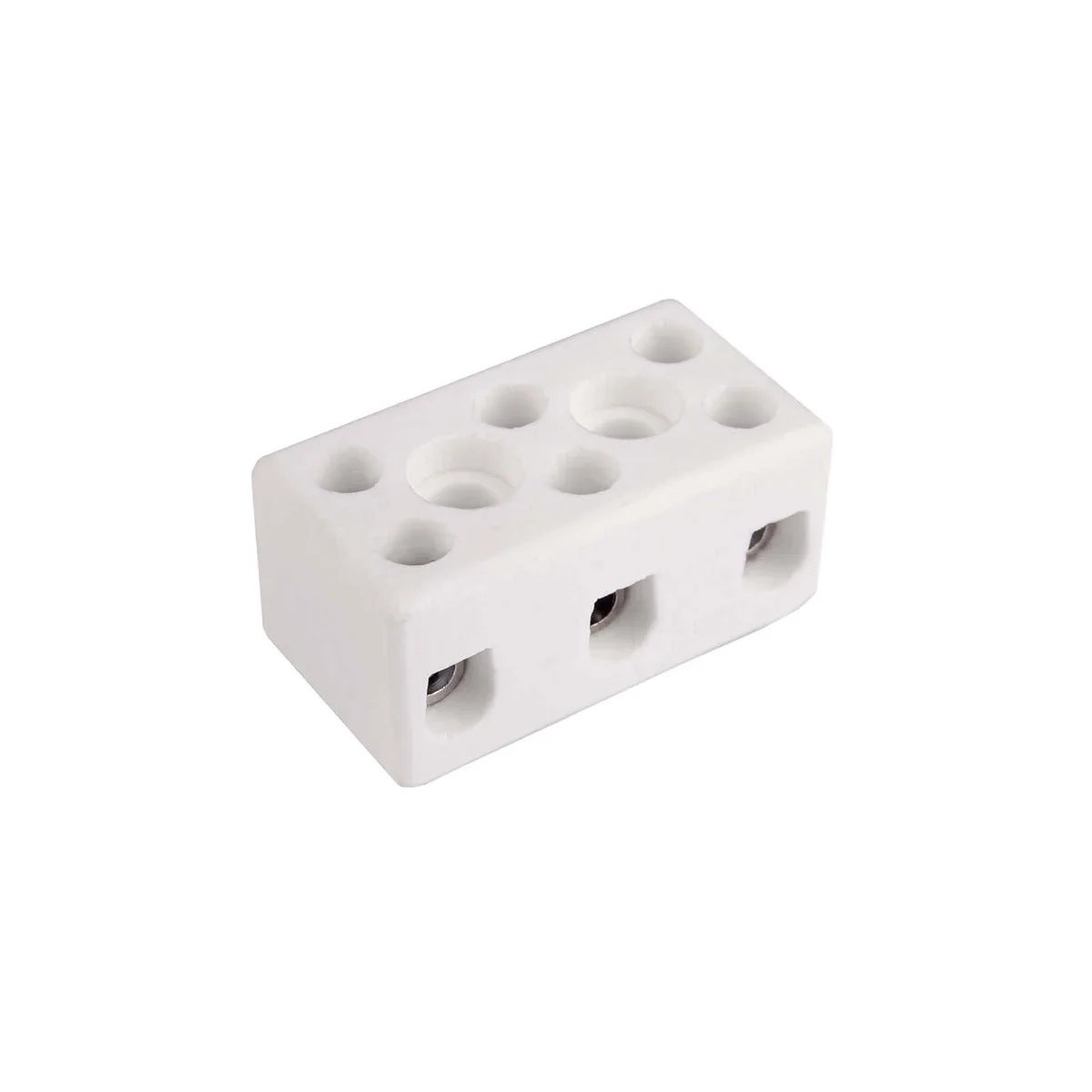

Porcelain threaded connector 4mm2 3-way CPO-5A-3P 20pcs.
Porcelain threaded connector 4mm2 3-way CPO-5A-3P 20pcs.

Click on the photo to enlarge

Porcelain threaded connector 4mm2 3-way CPO-5A-3P 20pcs.
Porcelain threaded connector 4mm2 3-way CPO-5A-3P 20pcs.
SIMET

Porcelain threaded connector 4mm2 3-way CPO-5A-3P 20pcs. 80713516

local index:
TEG048SIME
Catalog No:
80713516
EAN code:
5907813217487
Price:
25,37 €
gross / pkg.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,47 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pkg.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Porcelain threaded connector, 4mm2, 3 tracks, CPO-5A-3P, (white)

Print the product sheet Report an error

Technical data

  • Pieces in the package
    20

Other technical data

  • Drill hole distance centrically
    12 mm
  • Connectable conductor cross section fine-strand without cable end sleeve
    0 ... 4 mm²
  • Connectable conductor cross section solid-core
    0 ... 4 mm²
  • Rated current In
    32 A
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Sideways
  • Number of clamp positions per pole
    2
  • Material insulation body
    Ceramics
  • Width/grid dimension
    18 mm
  • Length
    33 mm
  • Colour
    White
  • Explosion-tested version 'Ex e'
    no
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    0 ... 4 mm²
  • Rated voltage
    450 V
  • Type of electrical connection 2
    Screw connection
  • Number of poles
    3
  • Mounting method
    Direct mounting
  • Operating temperature
    -40 ... 350 °C
  • Wysokość przy najniższym sposobie montażu
    16 mm
  • Closing plate required
    no
  • Transparent
    no
