el12 Connecting cables and wires Connectors Threaded fittings Porcelain threaded connector, 16mm2, 3 tracks, 10pcs.

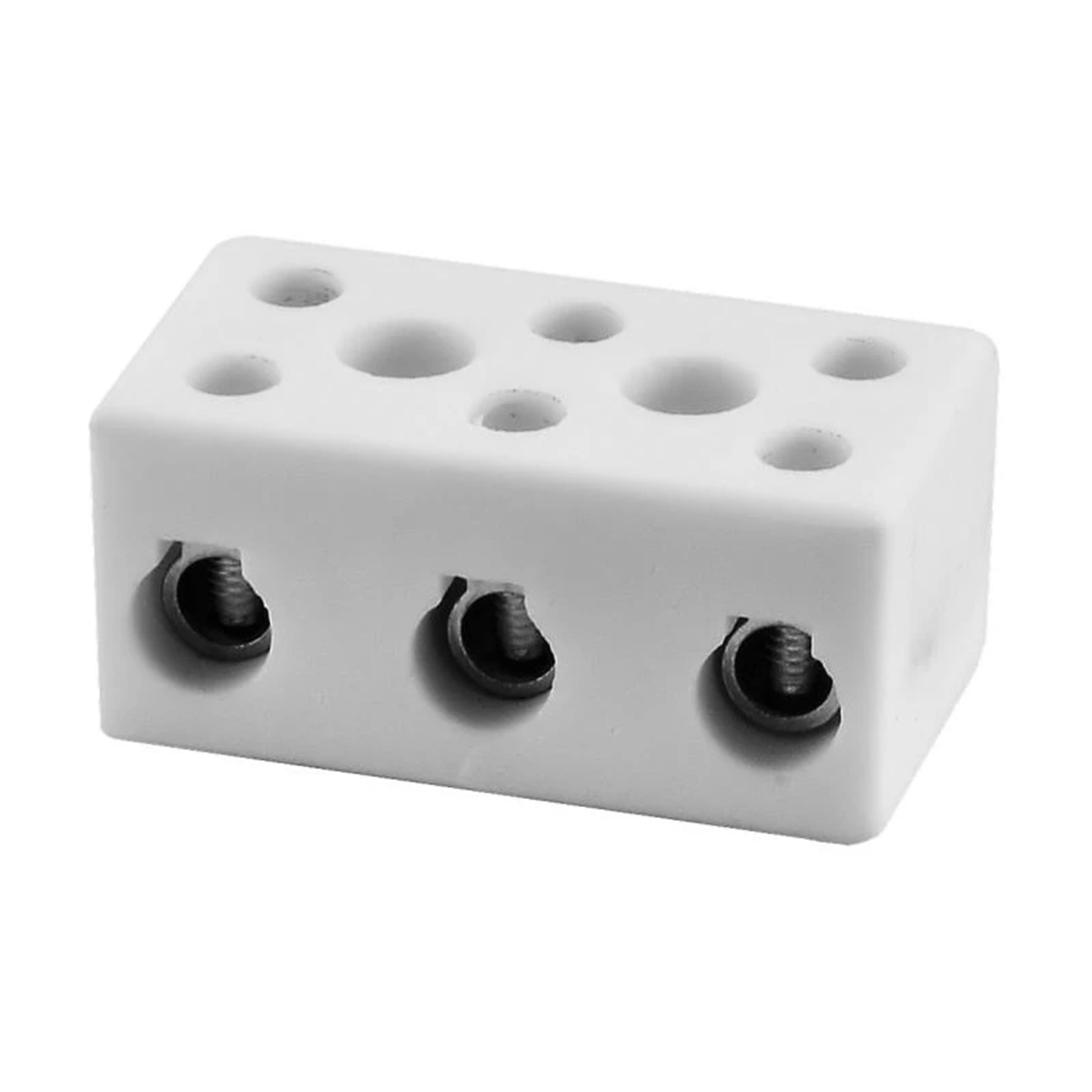

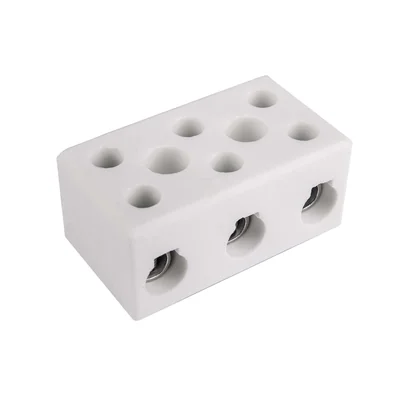

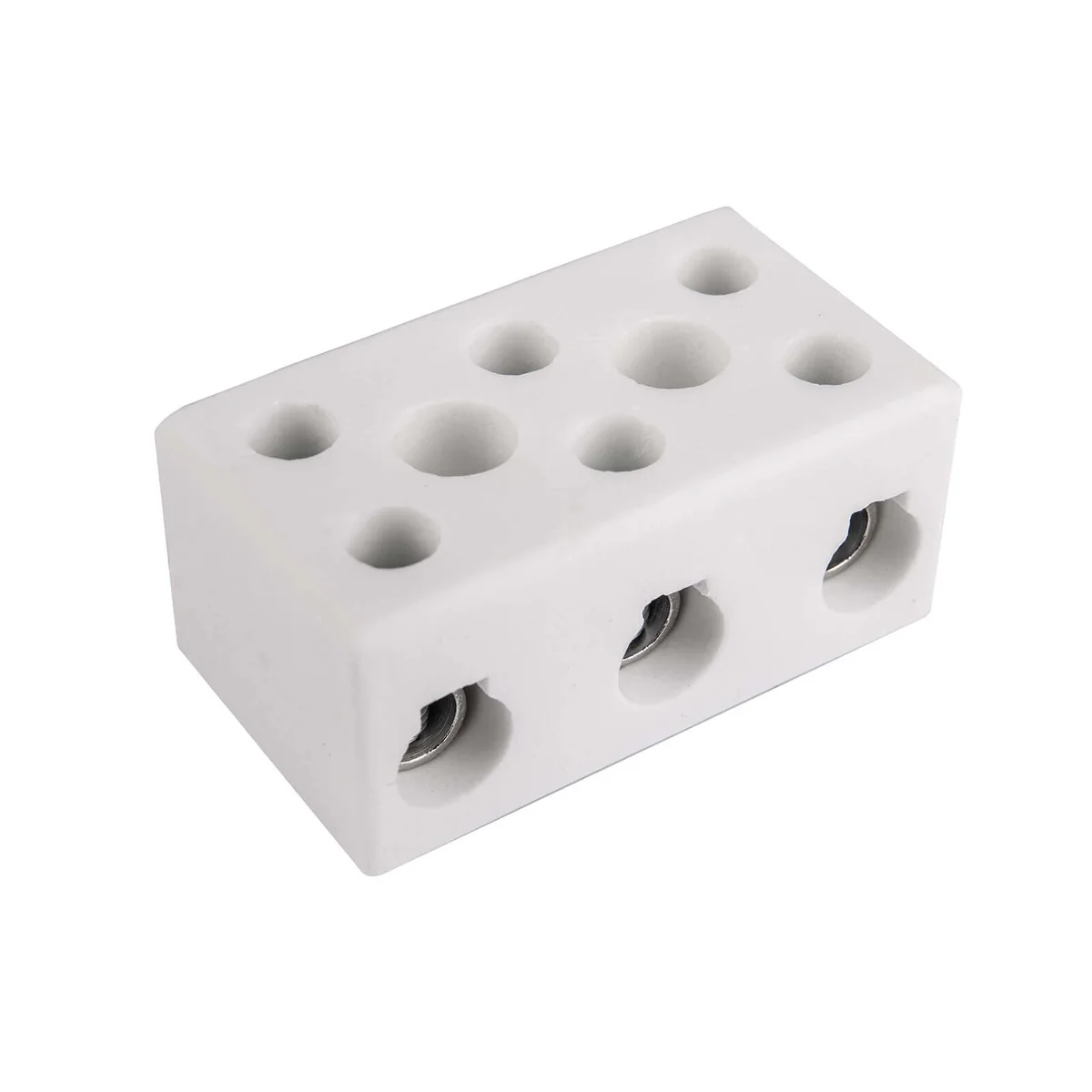

Porcelain threaded connector, 16mm2, 3 tracks, 10pcs.

Click on the photo to enlarge

Porcelain threaded connector, 16mm2, 3 tracks, 10pcs.
SIMET

Porcelain threaded connector, 16mm2, 3 tracks, 10pcs. 80733516

local index:
TEG045SIME
Catalog No:
80733516
EAN code:
5907813217548
Price:
23,38 €
gross / pkg.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,46 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pkg.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Porcelain threaded connector, 16mm2, 3 tracks

Print the product sheet Report an error

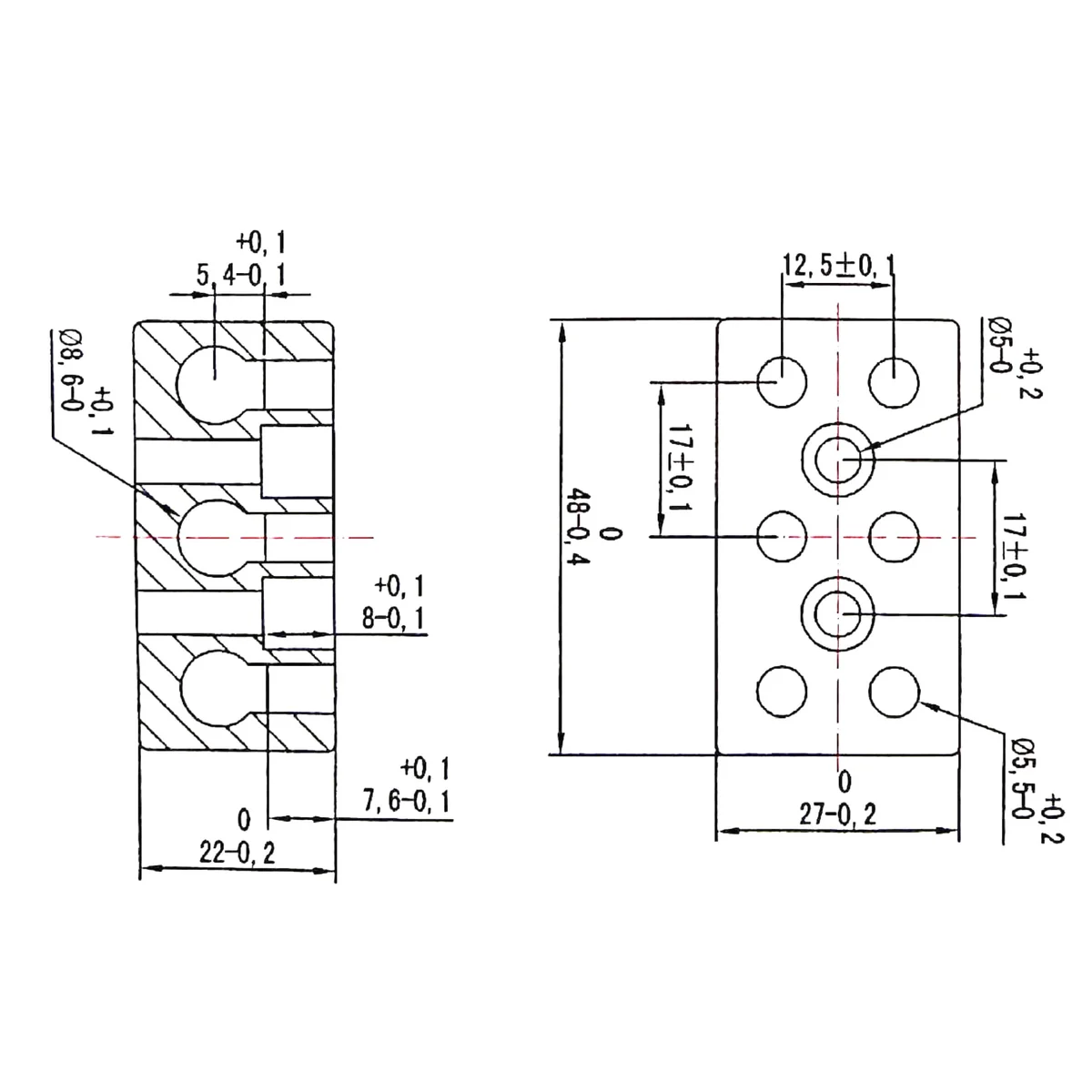

Technical data

  • Number of tracks
    3
  • Rated voltage [V]
    450
  • Width [mm]
    22
  • Height [mm]
    48
  • Number of connectors
    3
  • Color
    White
  • Rated current [A]
    76
  • Pieces in the package
    10
  • cross section [mm²]
    16

Other technical data

  • Drill hole distance centrically
    0 mm
  • Connectable conductor cross section fine-strand without cable end sleeve
    0 ... 16 mm²
  • Connectable conductor cross section solid-core
    0 ... 16 mm²
  • Rated current In
    76 A
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Sideways
  • Number of clamp positions per pole
    2
  • Material insulation body
    Ceramics
  • Width/grid dimension
    27 mm
  • Length
    48 mm
  • Colour
    White
  • Explosion-tested version 'Ex e'
    no
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    0 ... 16 mm²
  • Rated voltage
    450 V
  • Type of electrical connection 2
    Screw connection
  • Number of poles
    3
  • Mounting method
    Direct mounting
  • Operating temperature
    -40 ... 350 °C
  • Wysokość przy najniższym sposobie montażu
    22 mm
  • Closing plate required
    no
  • Transparent
    no
