Porcelain threaded connector 16mm² 1 track white 20pcs. 80731516

local index:
TEG074SIME
Catalog No:
80731516
EAN code:
5907813217524

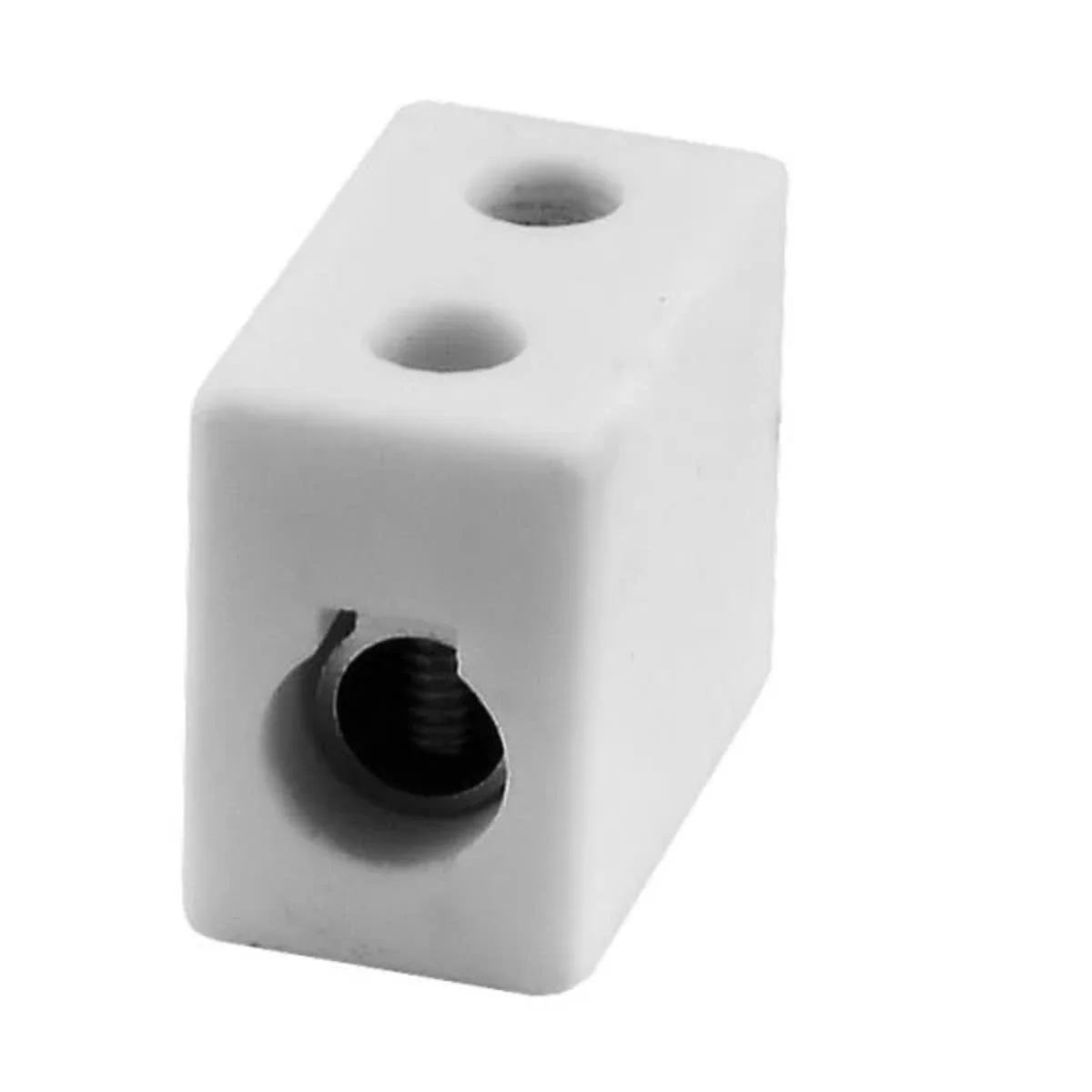

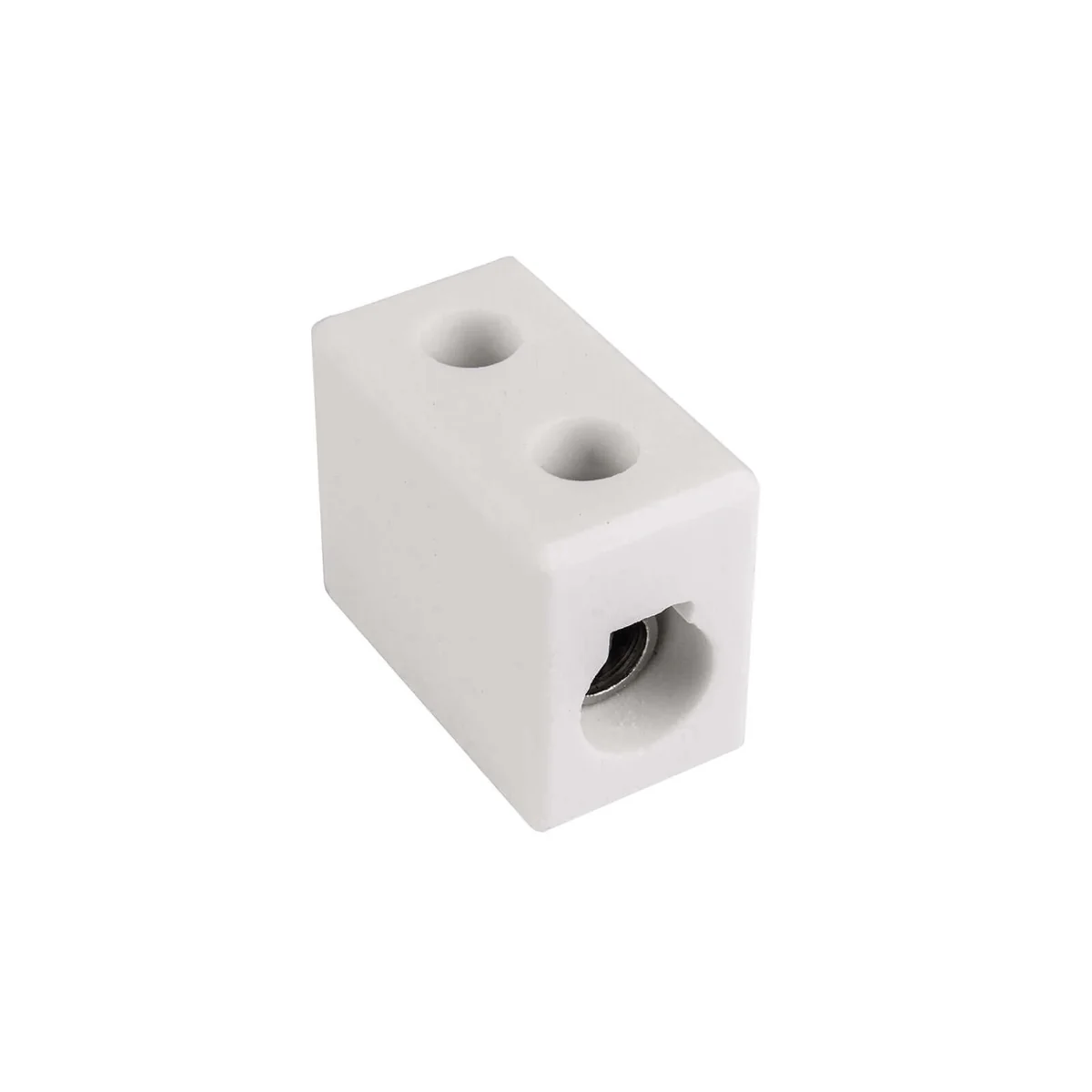

Porcelain threaded connector 16mm² 1 track white 20pcs.
Porcelain threaded connector 16mm² 1 track white 20pcs.

Click on the photo to enlarge

Manufacturer: SIMET
Pieces in the package: 20
See full description
Price:
35,63 €
gross / pkg.
(including VAT 23%)
1,78 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data

Product description

Porcelain threaded connector 16mm² 1 track white 20pcs.

Technical data

  • Pieces in the package
    20
  • PKWIU
    27.33.13.0

Other technical data

  • Drill hole distance centrically
    0 mm
  • Connectable conductor cross section fine-strand without cable end sleeve
    0 ... 16 mm²
  • Connectable conductor cross section solid-core
    0 ... 16 mm²
  • Rated current In
    76 A
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Sideways
  • Number of clamp positions per pole
    2
  • Material insulation body
    Ceramics
  • Width/grid dimension
    27 mm
  • Length
    15 mm
  • Colour
    White
  • Explosion-tested version 'Ex e'
    No
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    0 ... 16 mm²
  • Rated voltage
    450 V
  • Type of electrical connection 2
    Screw connection
  • Number of poles
    1
  • Mounting method
    Direct mounting
  • Operating temperature
    -40 ... 350 °C
  • Wysokość przy najniższym sposobie montażu
    22 mm
  • Closing plate required
    No
  • Transparent
    No
