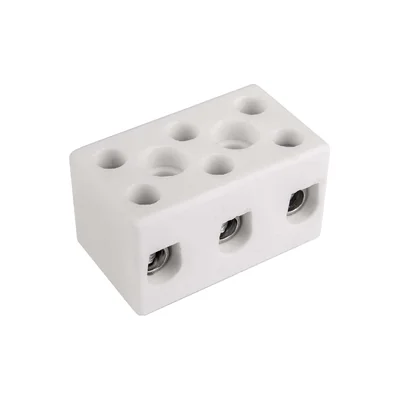

Porcelain threaded connector 10mm2 3 tracks 10pcs. 80723516

local index:
TEG040SIME
Catalog No:
80723516
EAN code:
5907813217517
Manufacturer: SIMET
Color: White
Rated current [A]: 57
Pieces in the package: 10
Price:
23,53 €
gross / pkg.
(including VAT 23%)
2,35 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

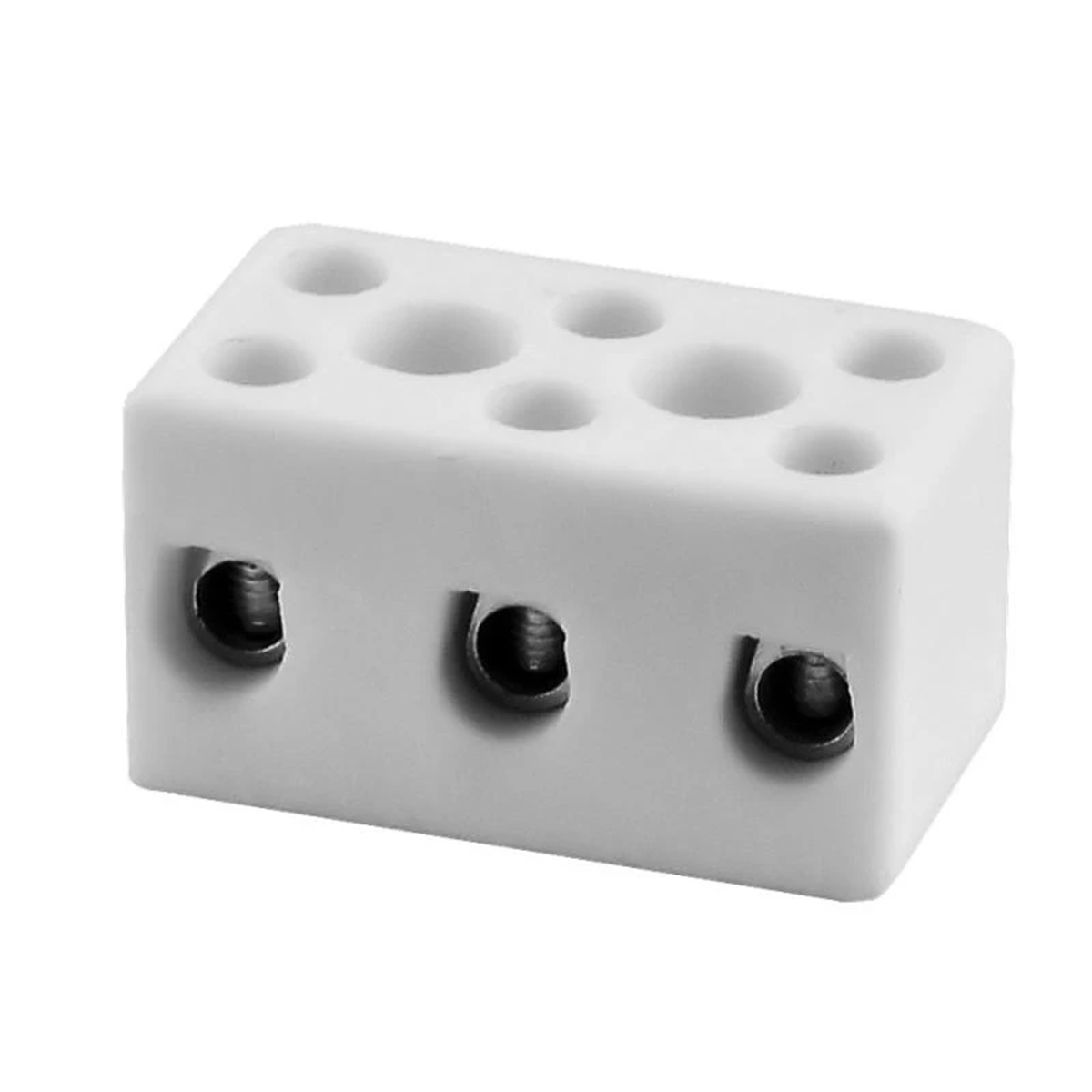

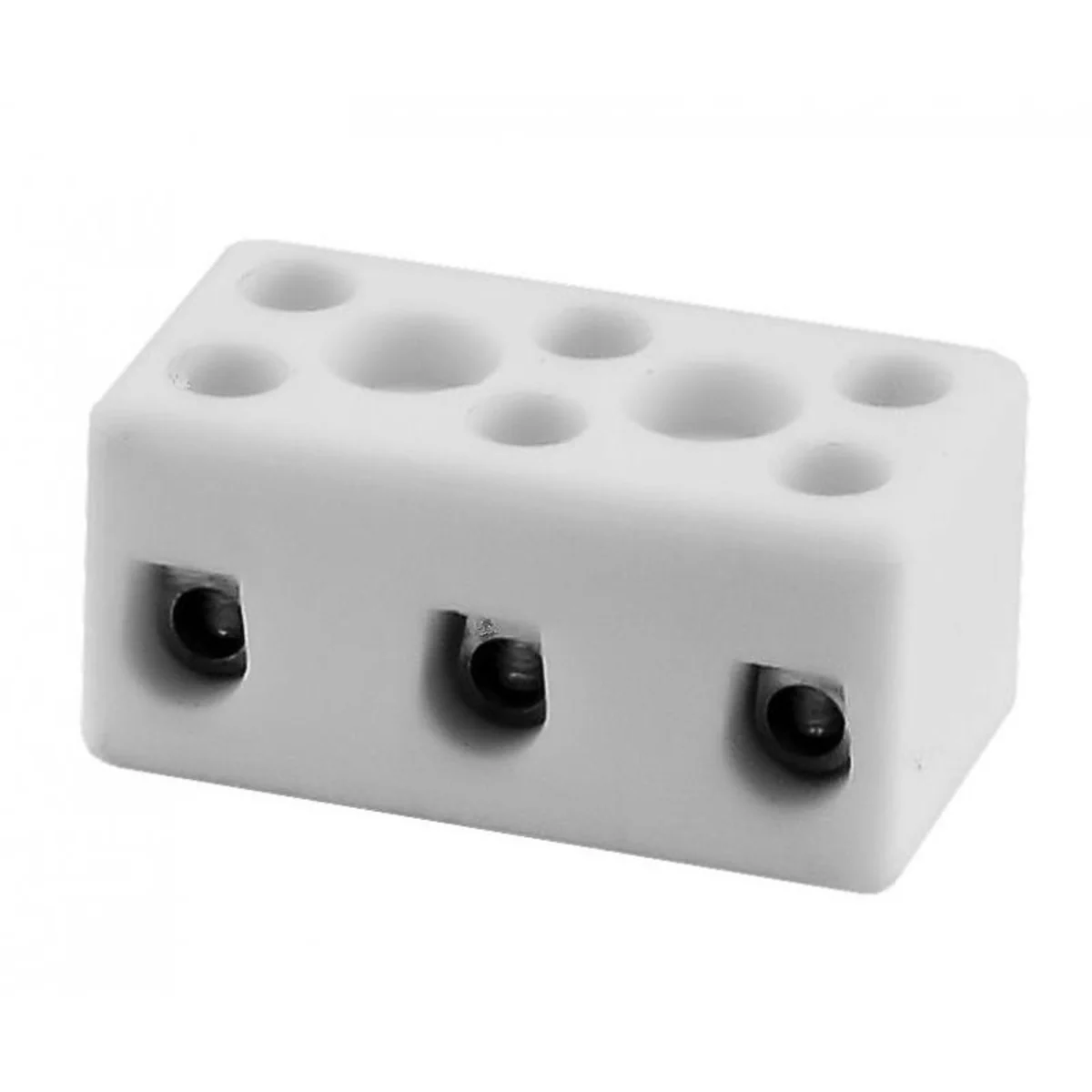

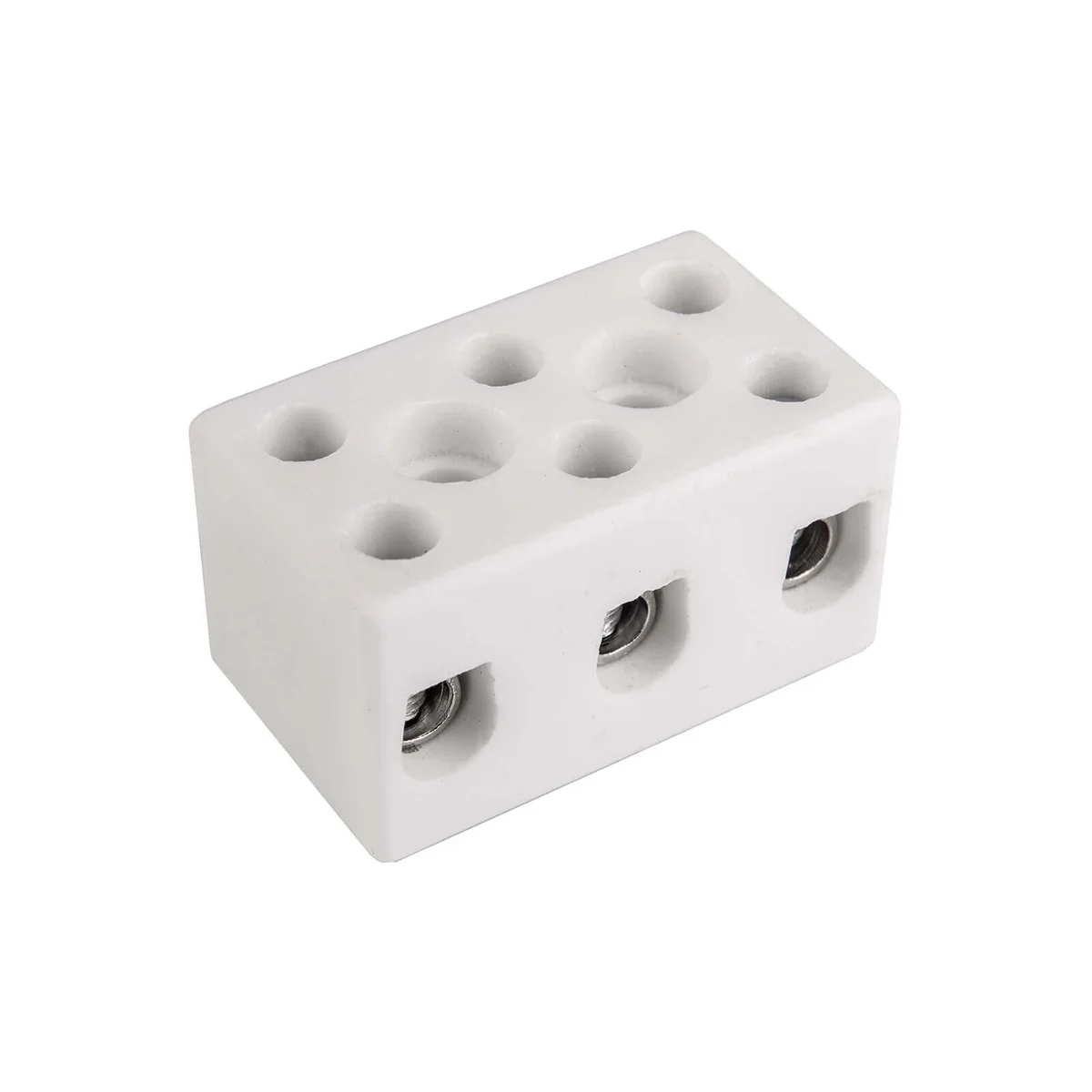

Porcelain threaded connector, 10mm2, 3 tracks

Technical data

  • Color
    White
  • Pieces in the package
    10
  • Rated current [A]
    57
  • PKWIU
    27.33.13.0

Other technical data

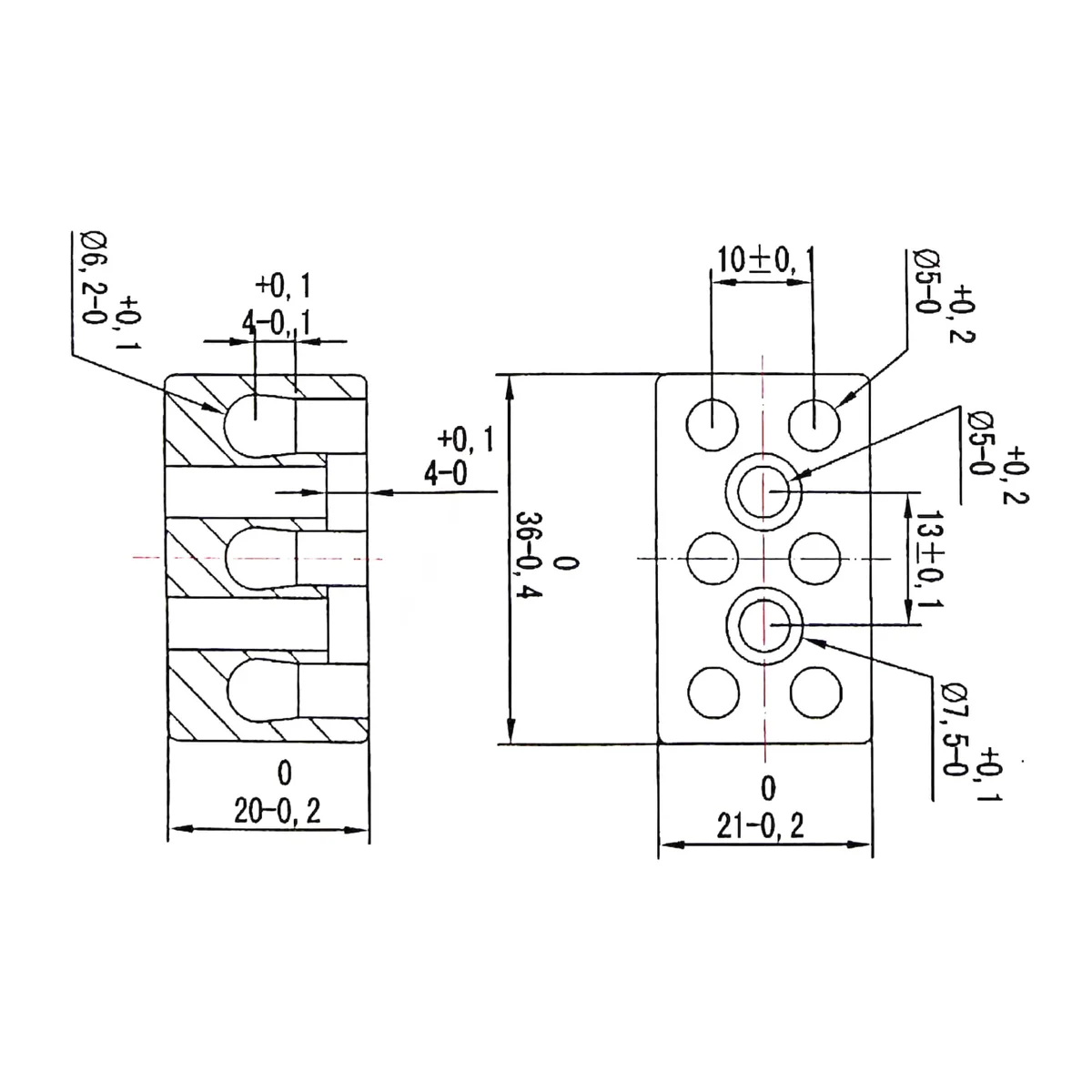

  • Drill hole distance centrically
    14 mm
  • Connectable conductor cross section fine-strand without cable end sleeve
    0 ... 10 mm²
  • Connectable conductor cross section solid-core
    0 ... 10 mm²
  • Rated current In
    57 A
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Sideways
  • Number of clamp positions per pole
    2
  • Material insulation body
    Ceramics
  • Width/grid dimension
    21 mm
  • Length
    36 mm
  • Colour
    White
  • Explosion-tested version 'Ex e'
    No
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    0 ... 10 mm²
  • Rated voltage
    450 V
  • Type of electrical connection 2
    Screw connection
  • Number of poles
    3
  • Mounting method
    Direct mounting
  • Operating temperature
    -40 ... 350 °C
  • Wysokość przy najniższym sposobie montażu
    20 mm
  • Closing plate required
    No
  • Transparent
    No
