Porcelain threaded connector, 10mm2, 2 tracks, 20pcs. 80722516

local index:
TEG043SIME
Catalog No:
80722516
EAN code:
5907813217500
Manufacturer: SIMET
Number of tracks: 2
Color: White
Rated voltage [V]: 450
Price:
43,03 €
gross / pkg.
(including VAT 23%)
2,15 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Print

Product description

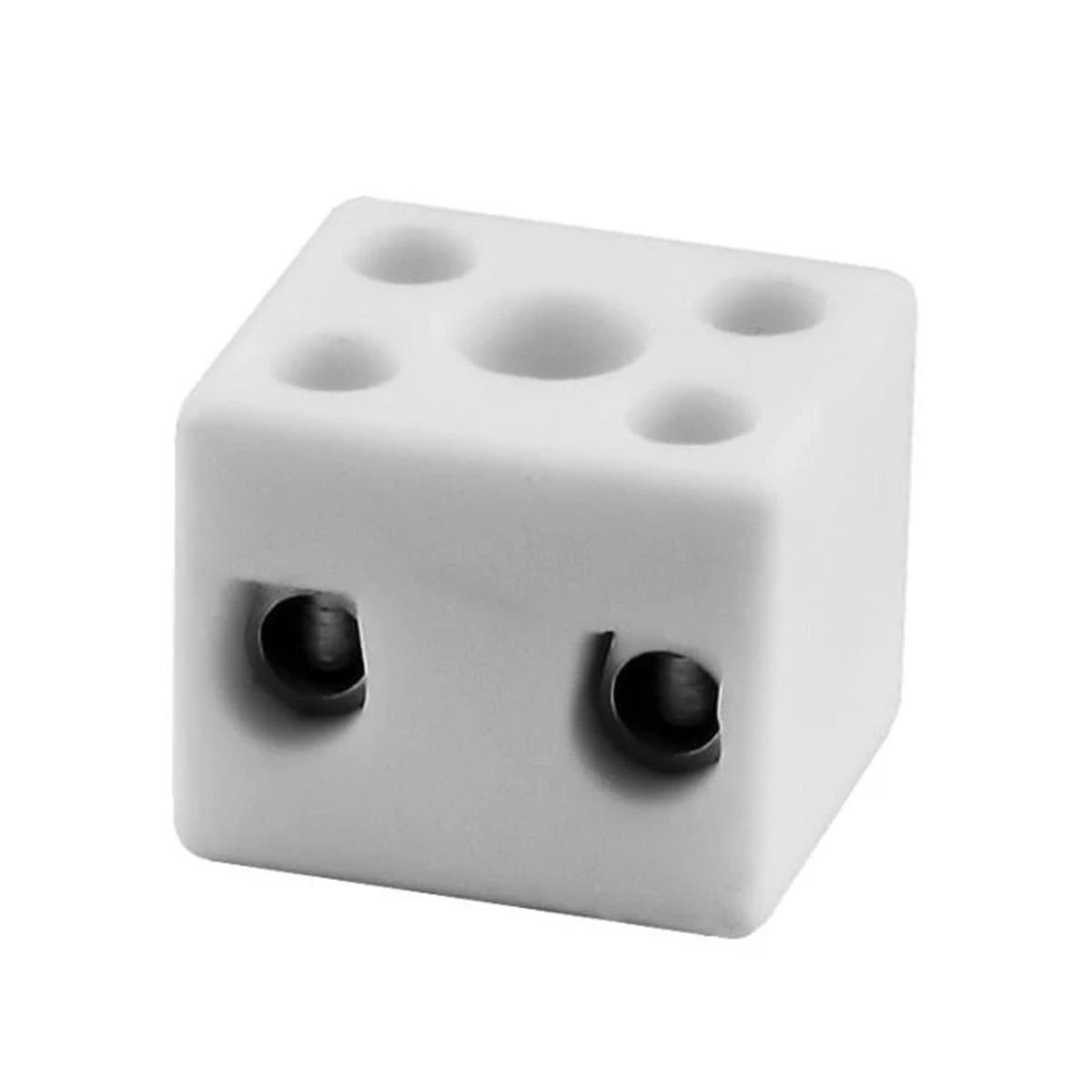

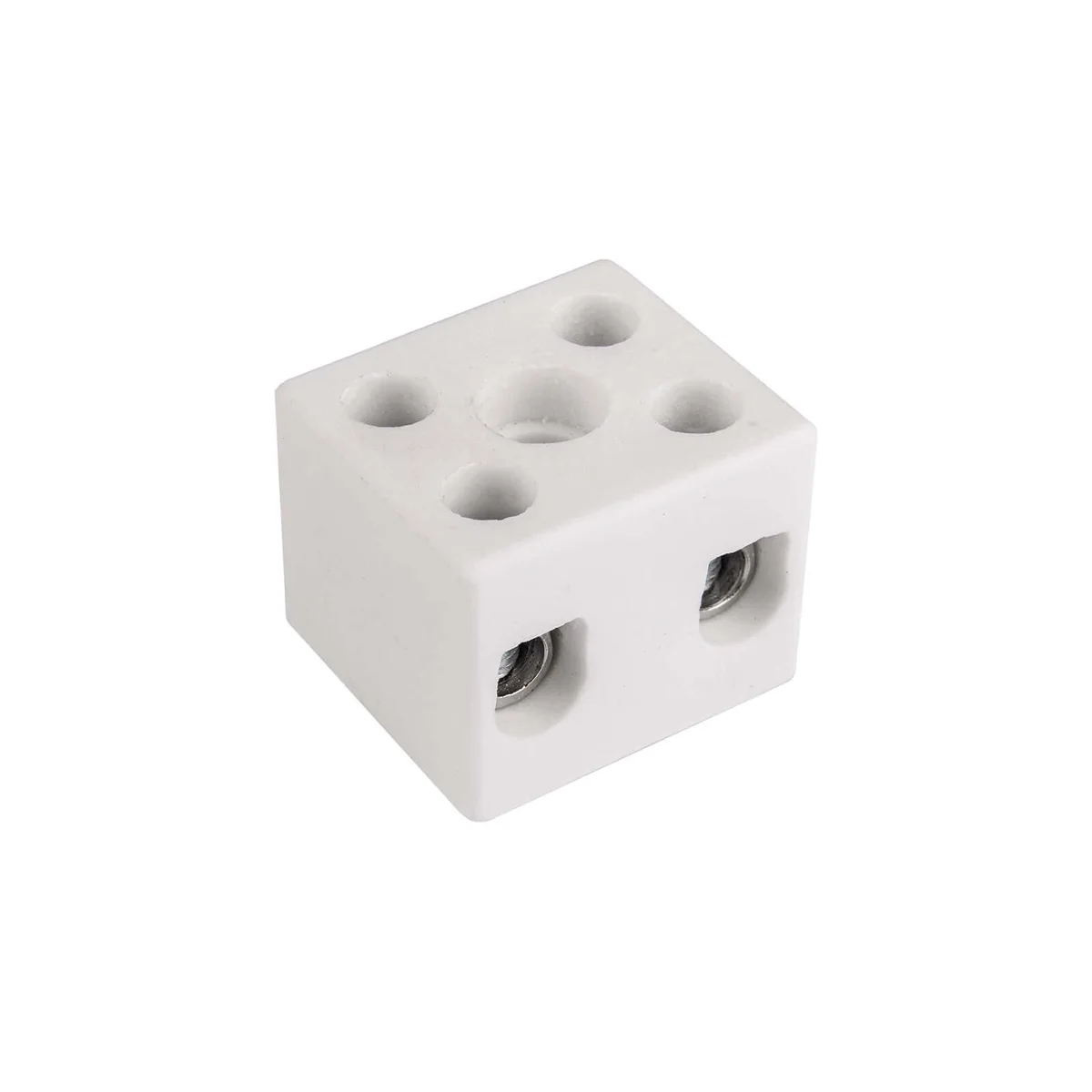

Porcelain threaded connector, 10mm2, 2 tracks

Technical data

  • Number of tracks
    2
  • Rated voltage [V]
    450

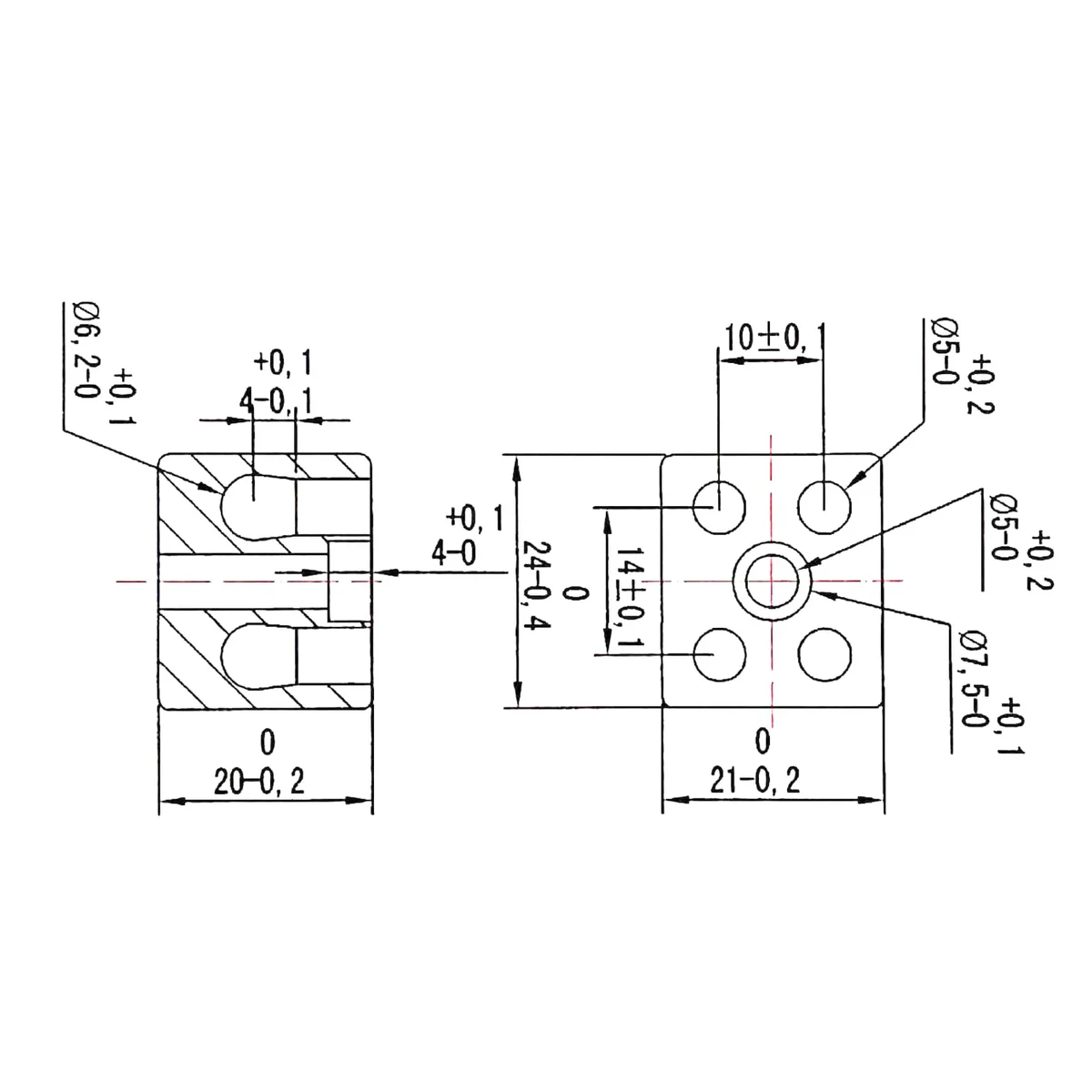

  • Width [mm]
    20
  • Height [mm]
    24
  • Number of connectors
    2
  • Color
    White
  • Rated current [A]
    57
  • Pieces in the package
    20
  • cross section [mm²]
    10
  • PKWIU
    27.33.13.0

Other technical data

  • Drill hole distance centrically
    0 mm
  • Connectable conductor cross section fine-strand without cable end sleeve
    0 ... 10 mm²
  • Connectable conductor cross section solid-core
    0 ... 10 mm²
  • Rated current In
    57 A
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Sideways
  • Number of clamp positions per pole
    2
  • Material insulation body
    Ceramics
  • Width/grid dimension
    21 mm
  • Length
    24 mm
  • Colour
    White
  • Explosion-tested version 'Ex e'
    No
  • Connectable conductor cross section fine-strand with cable end sleeve
    0 ... 0 mm²
  • Connectable conductor cross section multi-wired
    0 ... 10 mm²
  • Rated voltage
    450 V
  • Type of electrical connection 2
    Screw connection
  • Number of poles
    2
  • Mounting method
    Direct mounting
  • Operating temperature
    -40 ... 350 °C
  • Wysokość przy najniższym sposobie montażu
    20 mm
  • Closing plate required
    No
  • Transparent
    No
