Connecting cables and wires
Connectors
Threaded fittings

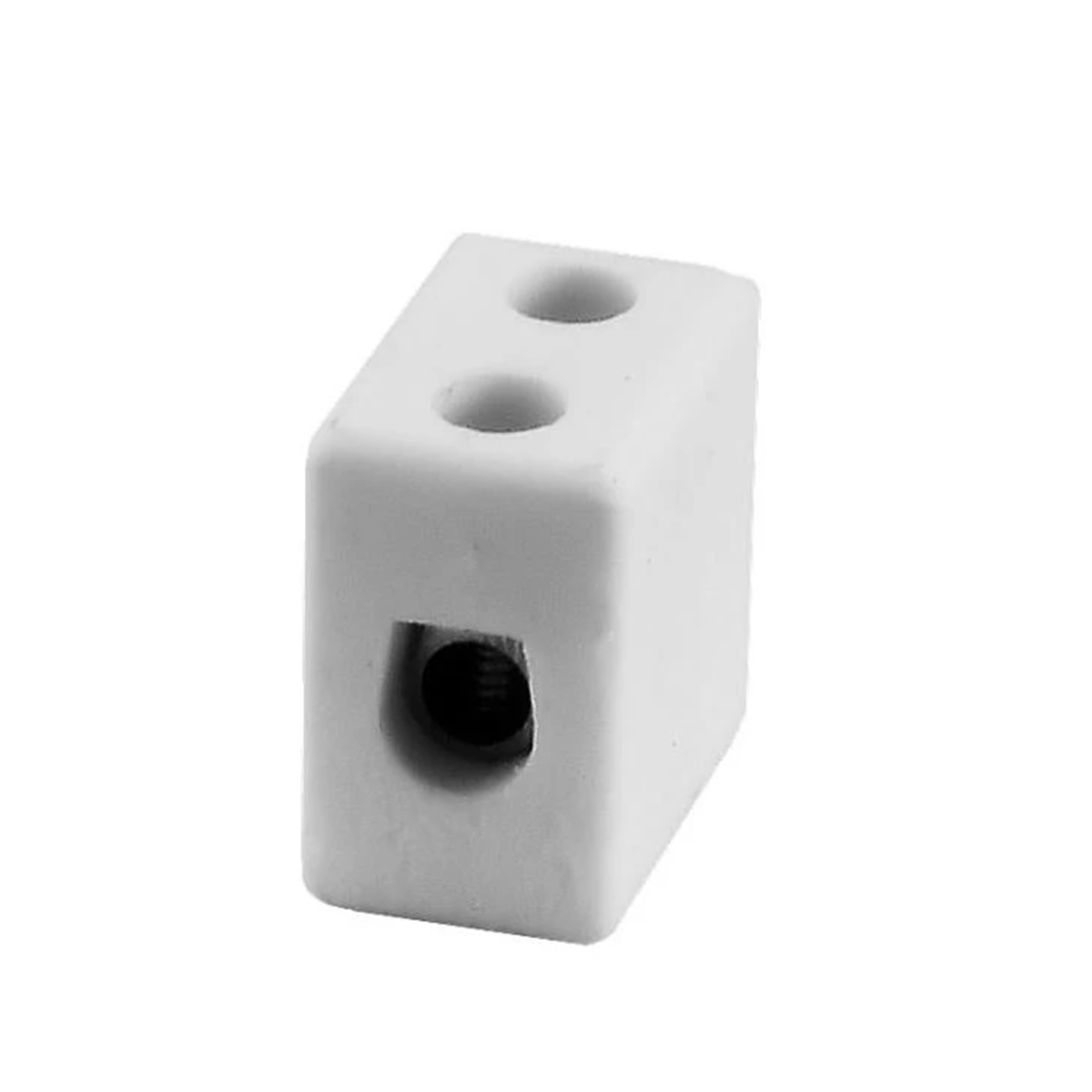

Porcelain threaded connector 10mm² 1 track white 80721516
local index:
TEG068SIME
Catalog No:
80721516
EAN code:
5907813217494
Click on the photo to enlarge
Manufacturer:
SIMET
Color:
White
See full description
Price:
1,55 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Product description
Porcelain threaded connector 10mm² 1 track white
Technical data
Color
White
PKWIU
27.33.13.0
Other technical data
Drill hole distance centrically
0 mm
Connectable conductor cross section fine-strand without cable end sleeve
0 ... 10 mm²
Connectable conductor cross section solid-core
0 ... 10 mm²
Rated current In
57 A
Type of electrical connection 1
Screw connection
Connection position
Sideways
Number of clamp positions per pole
2
Material insulation body
Ceramics
Width/grid dimension
21 mm
Length
13 mm
Colour
White
Explosion-tested version 'Ex e'
No
Connectable conductor cross section fine-strand with cable end sleeve
0 ... 0 mm²
Connectable conductor cross section multi-wired
0 ... 10 mm²
Rated voltage
450 V
Type of electrical connection 2
Screw connection
Number of poles
1
Mounting method
Direct mounting
Operating temperature
-40 ... 350 °C
Wysokość przy najniższym sposobie montażu
20 mm
Closing plate required
No
Transparent
No
See more >>
