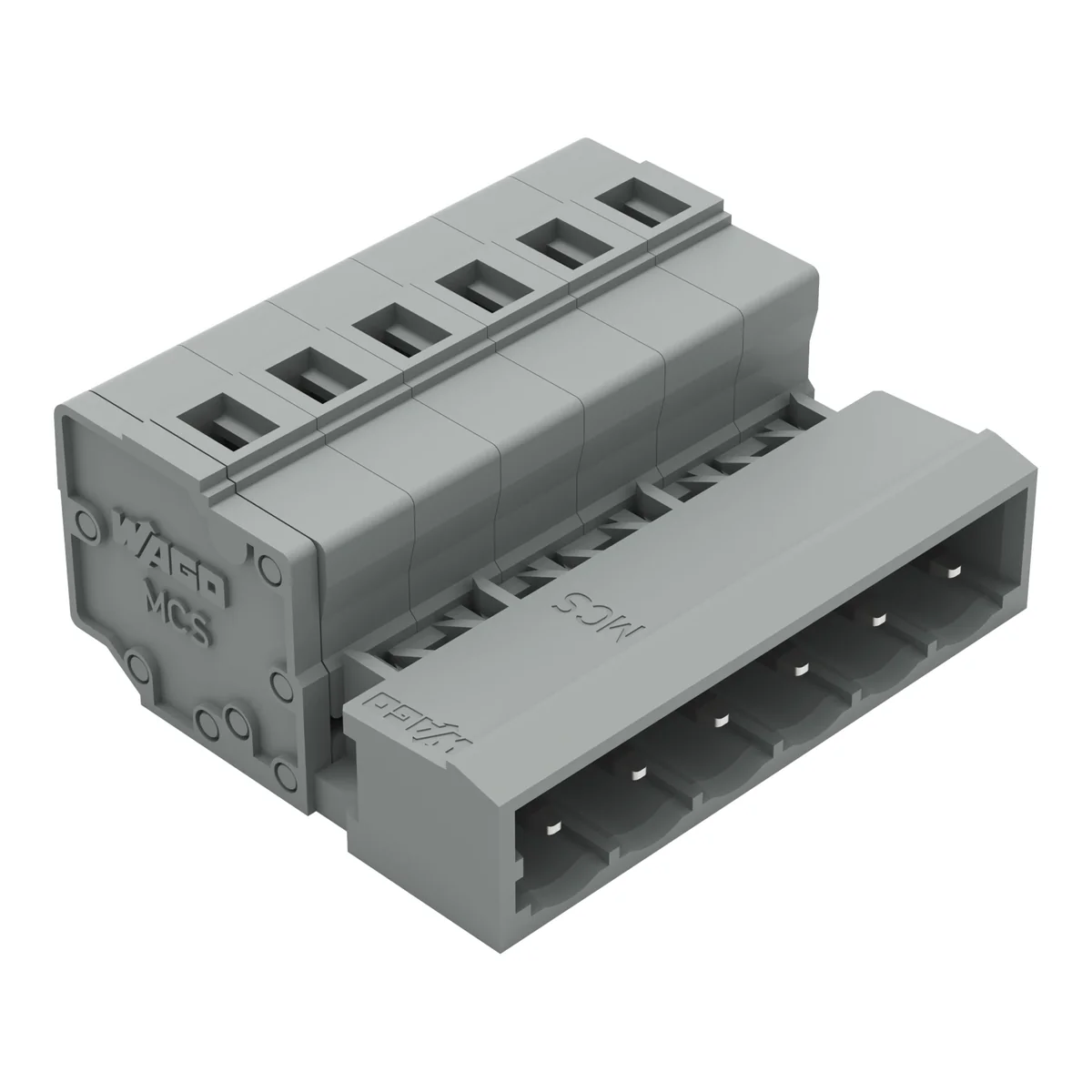

Pin socket raster 5mm 6-way 231-606

local index:
TEB023WAGO
Catalog No:
231-606
EAN code:
4044918257374
Manufacturer: WAGO ELWAG
Number of tracks: 6
Color: Gray
Number of potentials: 6
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
2,03 €
gross / pcs.
(including VAT 23%)
223,52 € gross/kg.
Last lowest price: 2,03 € gross
Base price: 5,97 € gross -66%
Delivery in 3h
Accessible 12 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

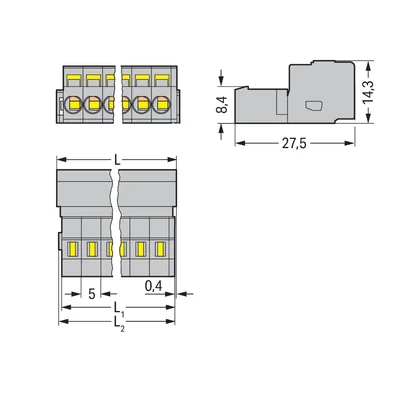

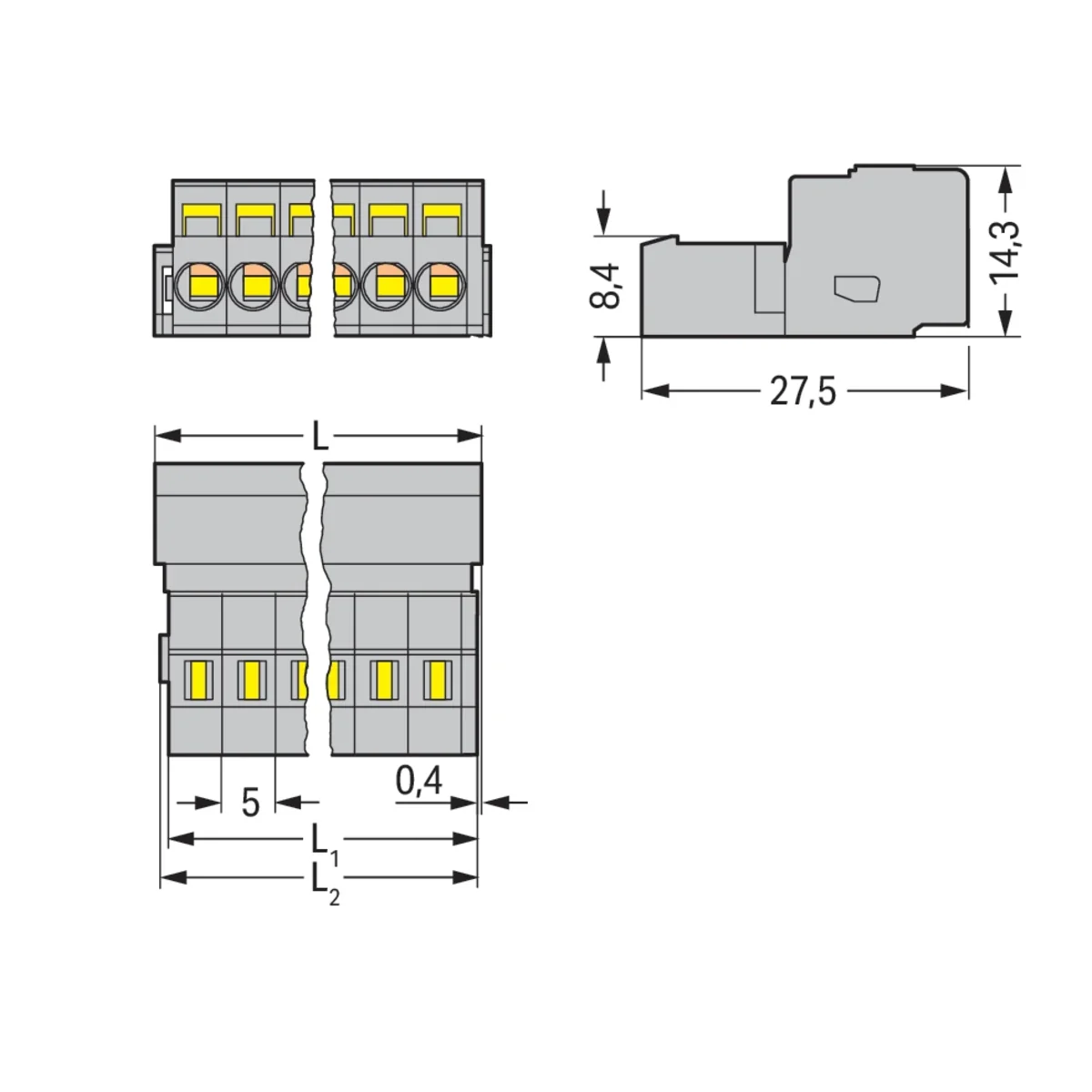

6-way pin socket, pitch 5 mm/0.197 in.

Technical data

  • Number of tracks
    6
  • Number of potentials
    6
  • Weight [g]
    9.082
  • Number of connectors
    6
  • Color
    Gray
  • Series
    231
  • Accurate color
    Gray

Other technical data

  • Type of connection
    Printed circuit board to cable
  • Number of poles
    6
  • Modular spacing contacts
    5 mm
  • Angle contact/conductor connection
    180° (horizontal)
  • Rated voltage
    320 V
  • Over voltage category
    III
  • Connectable conductor cross section fine-strand without cable end sleeve
    0.08 ... 2.5 mm²
  • Connectable conductor cross section solid-core
    0.08 ... 2.5 mm²
  • Type of electric connection
    Spring clamp connection
  • Material of contact surface
    Tin
  • Material insulation body
    Thermoplastic
  • Coating housing
    Nie dotyczy
  • Inflammability class of insulation material according to with UL94
    V0
  • Operating temperature
    -60 ... 100 °C
  • Contact type
    Pin
  • Number of plug-in contact rows
    1
  • Modular spacing connections
    5 mm
  • Rated current In
    12 A
  • Rated surge voltage
    4 kV
  • Pollution degree
    2
  • Connectable conductor cross section fine-strand with cable end sleeve
    0.25 ... 1.5 mm²
  • Connectable conductor cross section multi-wired
    0.08 ... 2.5 mm²
  • Connectable cable type
    Tubular cable
  • Material contact
    Other copper alloys
  • Housing material
    Plastic
  • Housing colour
    Grey
  • With protective conductor
    No
  • Degree of protection (IP), mounted
    IP10

Bulk packaging

A kind of package Karton
Quantity 50 pcs.
Weight (kg) 0,606
Volume (m3) 0,003
Width (m) 0,256
Length (m) 0,318
Depth (m) 0,040
