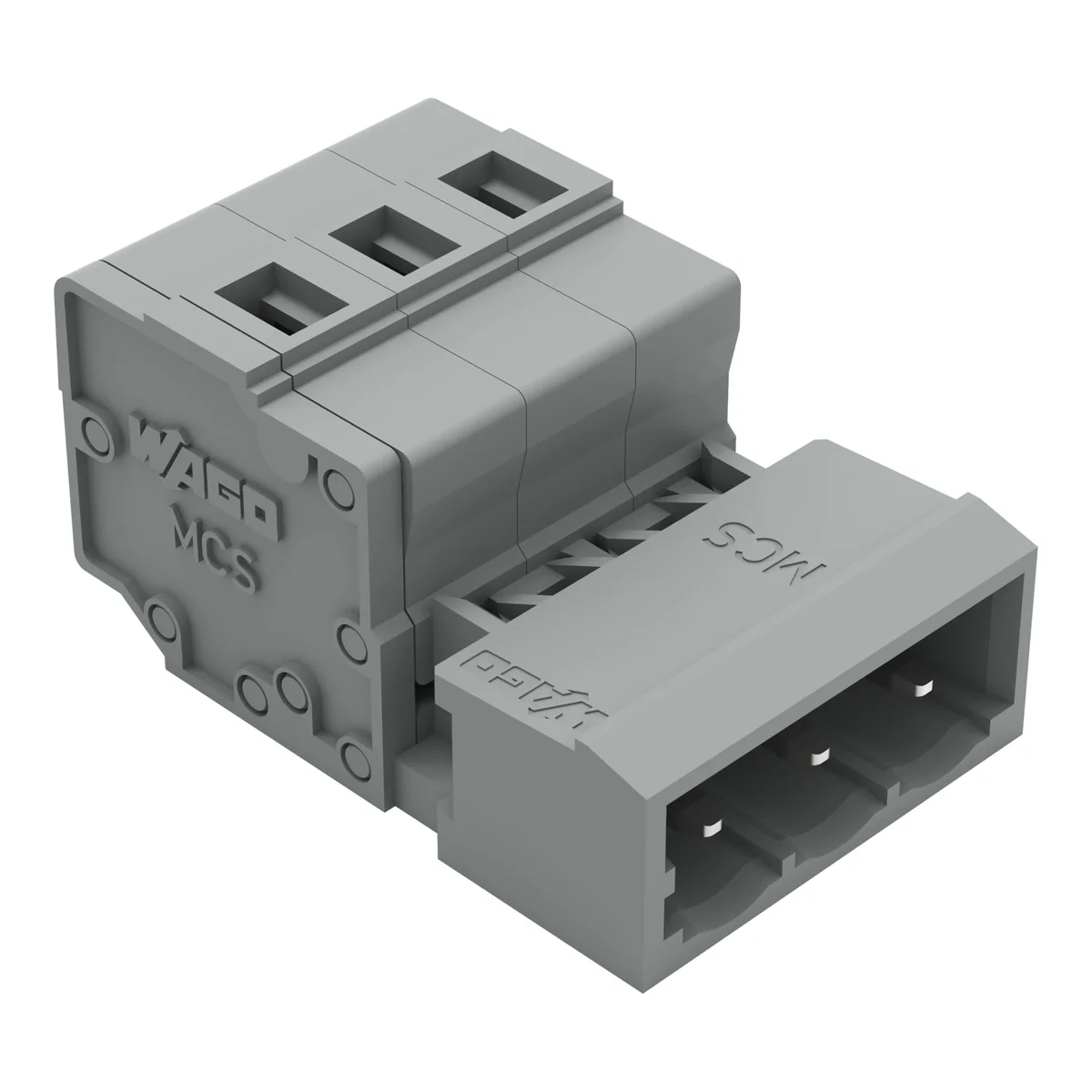

Pin socket raster 5mm 3-way 231-603
local index:
TEB821WAGO
Catalog No:
231-603
EAN code:
4044918256605
Price:
1,24 €
gross / pcs.
(including VAT 23%)
260,18 € gross/kg.
Last lowest price:
1,24 € gross
Price history for this product
1. 1,24 € gross / pcs.
2. Last lowest price:
1,24 €
3. Base price:
3,65 €
-66%
1. How much does this product cost today
2. Lowest price in the last 30 days
3. The base price of the product
Base price:
3,65 € gross
-66%
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print
Ask about the product
Product description

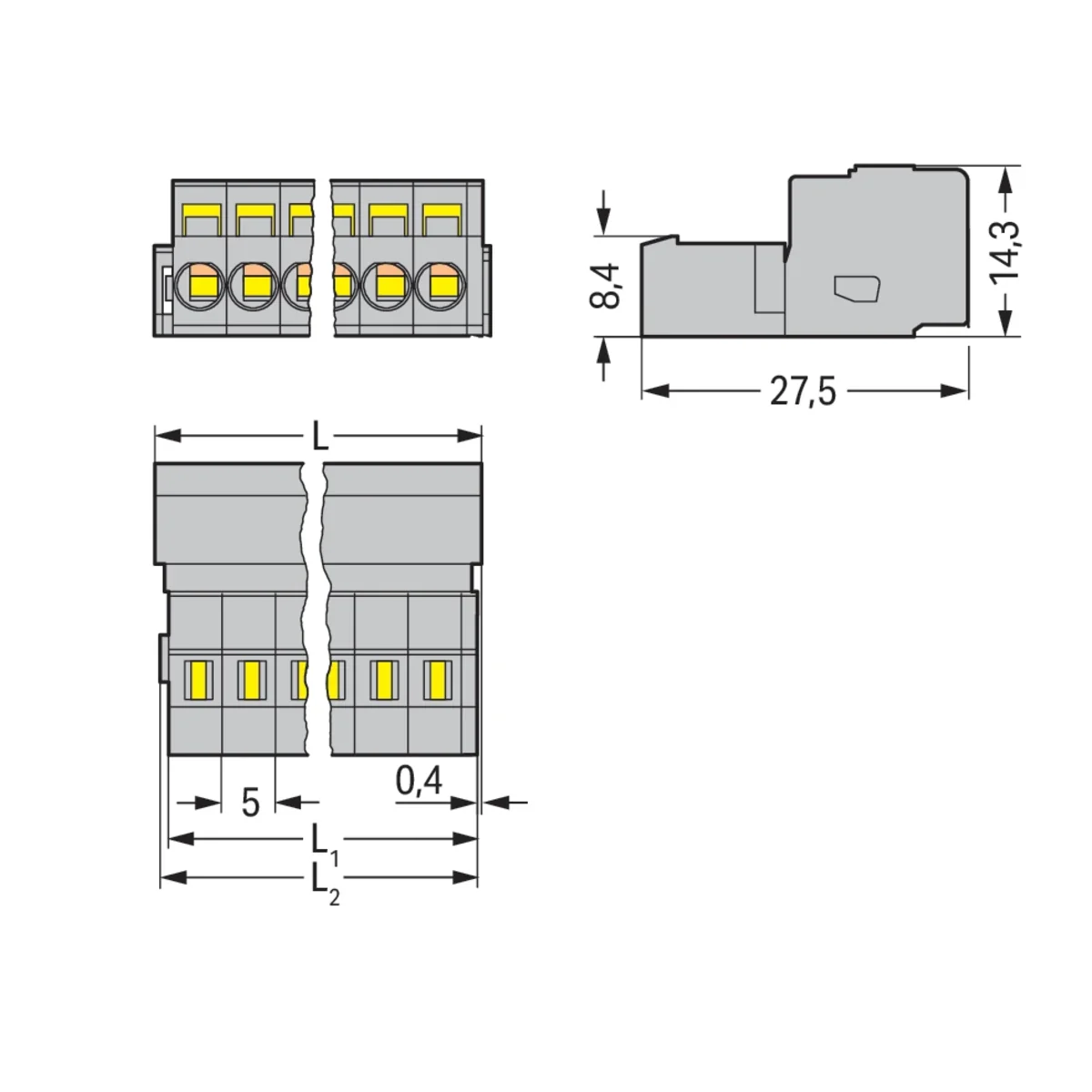

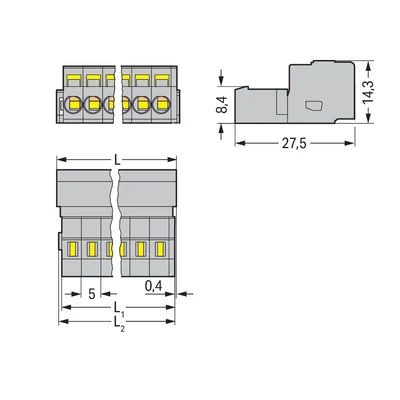

Pin socket 3-way pitch 5 mm/0.197 in.
Technical data
-
Number of tracks3
-
Number of potentials3
-
Weight [g]4,766
-
Number of connectors3
-
ColorGray
-
Series231
-
Accurate colorGray
Other technical data
-
Type of connectionPrinted circuit board to cable
-
Number of poles3
-
Modular spacing contacts5 mm
-
Angle contact/conductor connection180° (horizontal)
-
Rated voltage320 V
-
Over voltage categoryIII
-
Connectable conductor cross section fine-strand without cable end sleeve0.08 ... 2.5 mm²
-
Connectable conductor cross section solid-core0.08 ... 2.5 mm²
-
Type of electric connectionSpring clamp connection
-
Material of contact surfaceTin
-
Material insulation bodyThermoplastic
-
Coating housingNie dotyczy
-
Inflammability class of insulation material according to with UL94V0
-
Operating temperature-60 ... 100 °C
-
Contact typePin
-
Number of plug-in contact rows1
-
Modular spacing connections5 mm
-
Rated current In12 A
-
Rated surge voltage4 kV
-
Pollution degree2
-
Connectable conductor cross section fine-strand with cable end sleeve0.25 ... 1.5 mm²
-
Connectable conductor cross section multi-wired0.08 ... 2.5 mm²
-
Connectable cable typeTubular cable
-
Material contactOther copper alloys
-
Housing materialPlastic
-
Housing colourGrey
-
With protective conductorNo
-
Degree of protection (IP), mountedIP10
Bulk packaging
| A kind of package | Karton |
| Quantity | 100 pcs. |
| Weight (kg) | 0,633 |
| Volume (m3) | 0,003 |
| Width (m) | 0,256 |
| Length (m) | 0,318 |
| Depth (m) | 0,040 |
