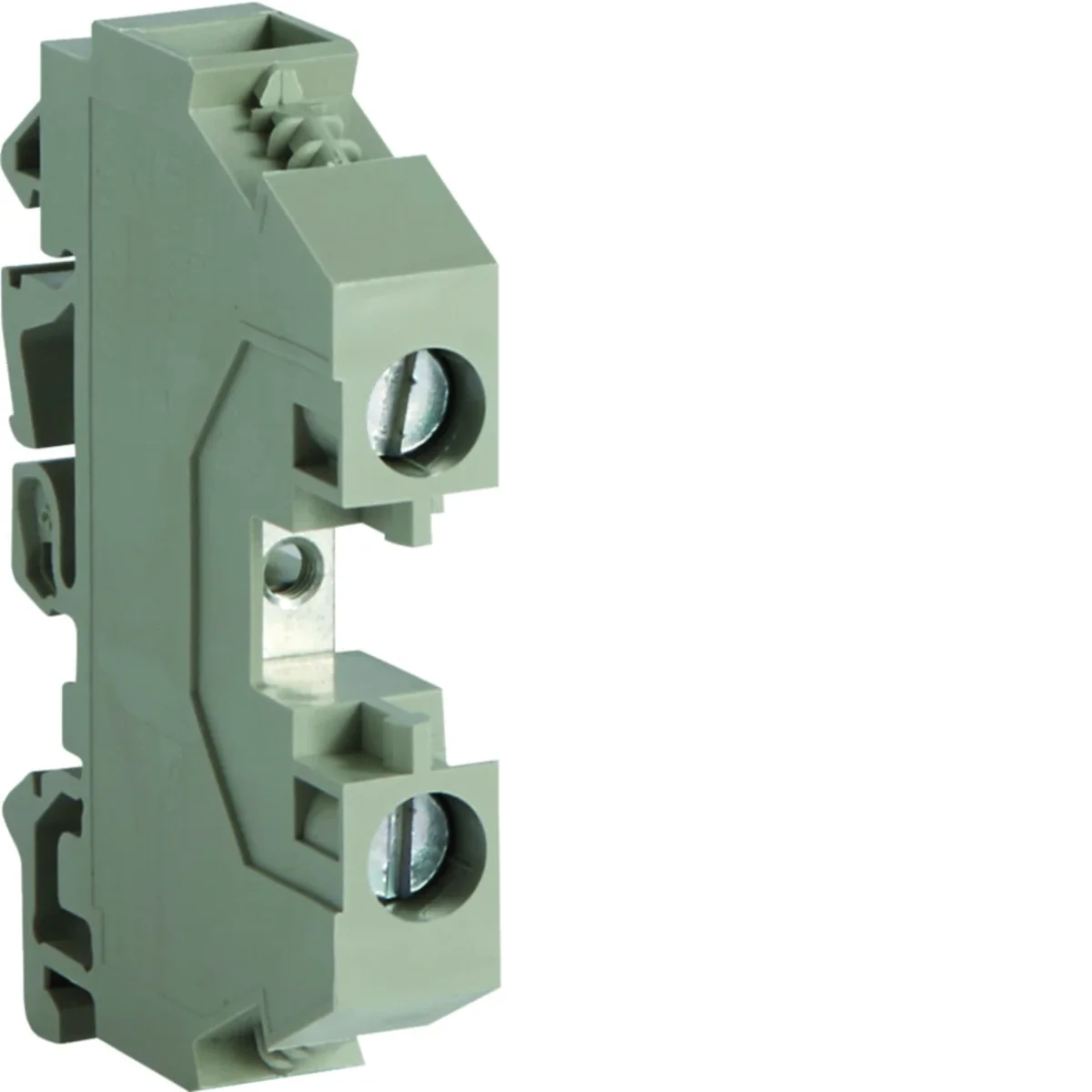

Phase terminal, 10mm2 KXA10L

local index:
TES013HAGE
Catalog No:
KXA10L
EAN code:
3250613941871
Manufacturer: HAGER
Depth [mm]: 10
Color: Gray
Installation: For mounting on DIN EN 50022 rail
Price:
6,08 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Creep resistance: KC > 600
Temperature resistance: 120°C
Un = 800 V at 2.5 and 4 mm2
Un = 400 V at 10 mm2 and larger
Possibility of connecting two conductors with the same cross-section under one terminal screw (in the case of PE only 1 conductor)
Easy wire entry into the open terminal thanks to the tapered entry
Easy to insert a screwdriver into the lowered clamping screws
Idling/idle after loosening clamping screws - especially important for power screwdrivers
All parts permanently fixed in the terminal carrier
The same level up to 35 mm2, in order to maintain the required insulation distances between individual groups of terminals, a partition/end plate should be placed at the beginning or end of a group of terminals.

Technical data

  • Depth [mm]
    10
  • Installation
    For mounting on DIN EN 50022 rail
  • Width [mm]
    58
  • PKWIU
    27.33.13.0
  • Color
    Gray
  • Rated current [A]
    57
  • Height [mm]
    51.5

Other technical data

  • Rated current In
    57 A
  • Type of electrical connection 2
    Screw connection
  • Material insulation body
    Thermoplastic
  • Closing plate required
    No
  • Internally connected stages
    No
  • Type of electrical connection 1
    Screw connection
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Explosion-tested version 'Ex e'
    No
  • Colour
    Grey

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 50 pcs. 10000 pcs.
Weight (kg) 0,028 1,420 307,000
Width (m) 0,055 0,125 0,800
Length (m) 0,010 0,055 1,050
Depth (m) 0,051 0,265 1,200
