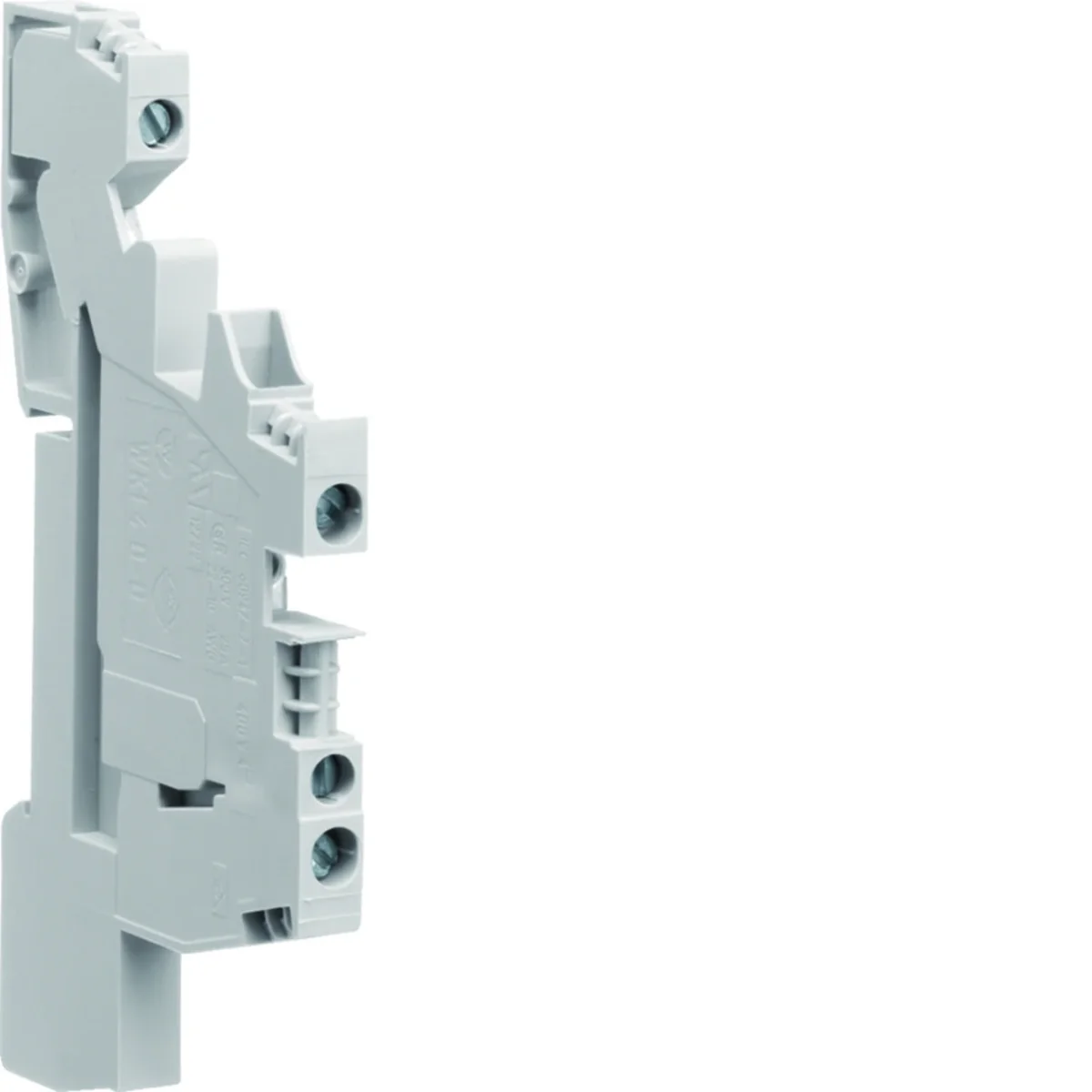

Phase clamp 2-pole 4mm2 KXA04I4

local index:
TES118HAGE
Catalog No:
KXA04I4
EAN code:
3250613941765
Manufacturer: HAGER
Energy lost in cables [W]: 1
Depth [mm]: 6
Color: Gray
Price:
4,44 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

2-pole phase terminal, from the series screw terminals.

Series characteristics:

  • Resistance for creepage currents: KC > 600
  • Temperature resistance: 120°C
  • Possibility of connecting two wires of the same cross-section to one terminal screw (in the case of PE only 1 wire)
  • Easy cable entry into open terminal due to conical entry
  • Easy insertion of screwdriver into lowered terminal screws
  • Idling/idle after loosening terminal screws - especially important for power screwdrivers< /li>
  • All parts permanently fixed in the terminal carrier
  • Equal level up to 35 mm2, in order to maintain the required insulation distances between individual groups of terminals, a partition/end plate should be placed at the beginning or end of a group of terminals.

Technical data

  • Energy lost in cables [W]
    1
  • Color
    Gray
  • Rated current [A]
    26
  • Connection type
    With a screw
  • Conductor cross-section (wire) [mm²]
    0.5 - 6
  • Depth [mm]
    6
  • Material
    Polyamide
  • power loss [W]
    1
  • Wire cross-section (cord) [mm²]
    0.5 - 4
  • PKWIU
    27.33.13.0

Other technical data

  • Rated current In
    26 A
  • Type of electrical connection 2
    Screw connection
  • Material insulation body
    Thermoplastic
  • Type of electrical connection 1
    Screw connection
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Basic colour
    Grey

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 50 pcs. 10000 pcs.
Weight (kg) 0,017 0,860 195,000
Width (m) 0,052 0,157 0,800
Length (m) 0,006 0,055 1,050
Depth (m) 0,090 0,195 1,200
