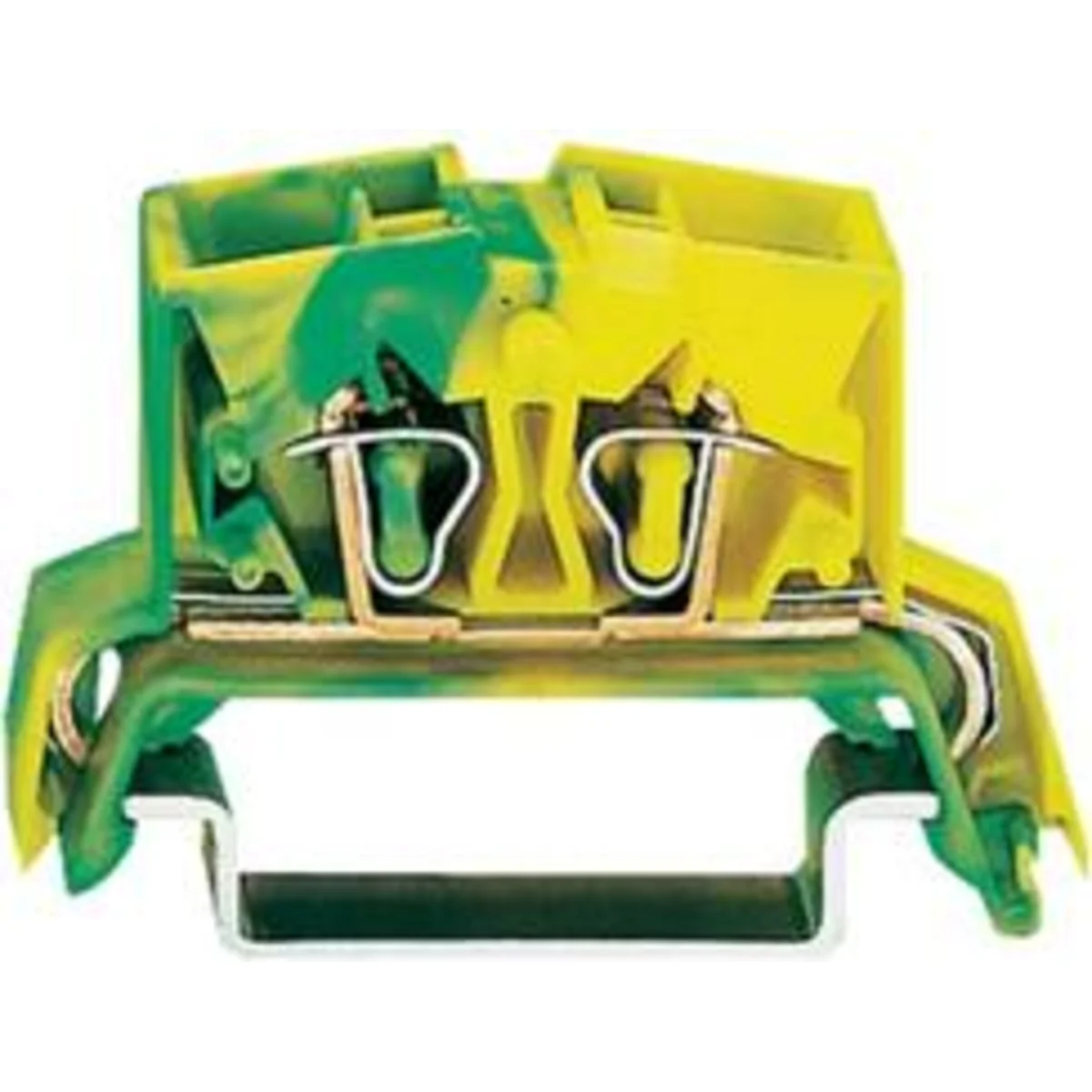

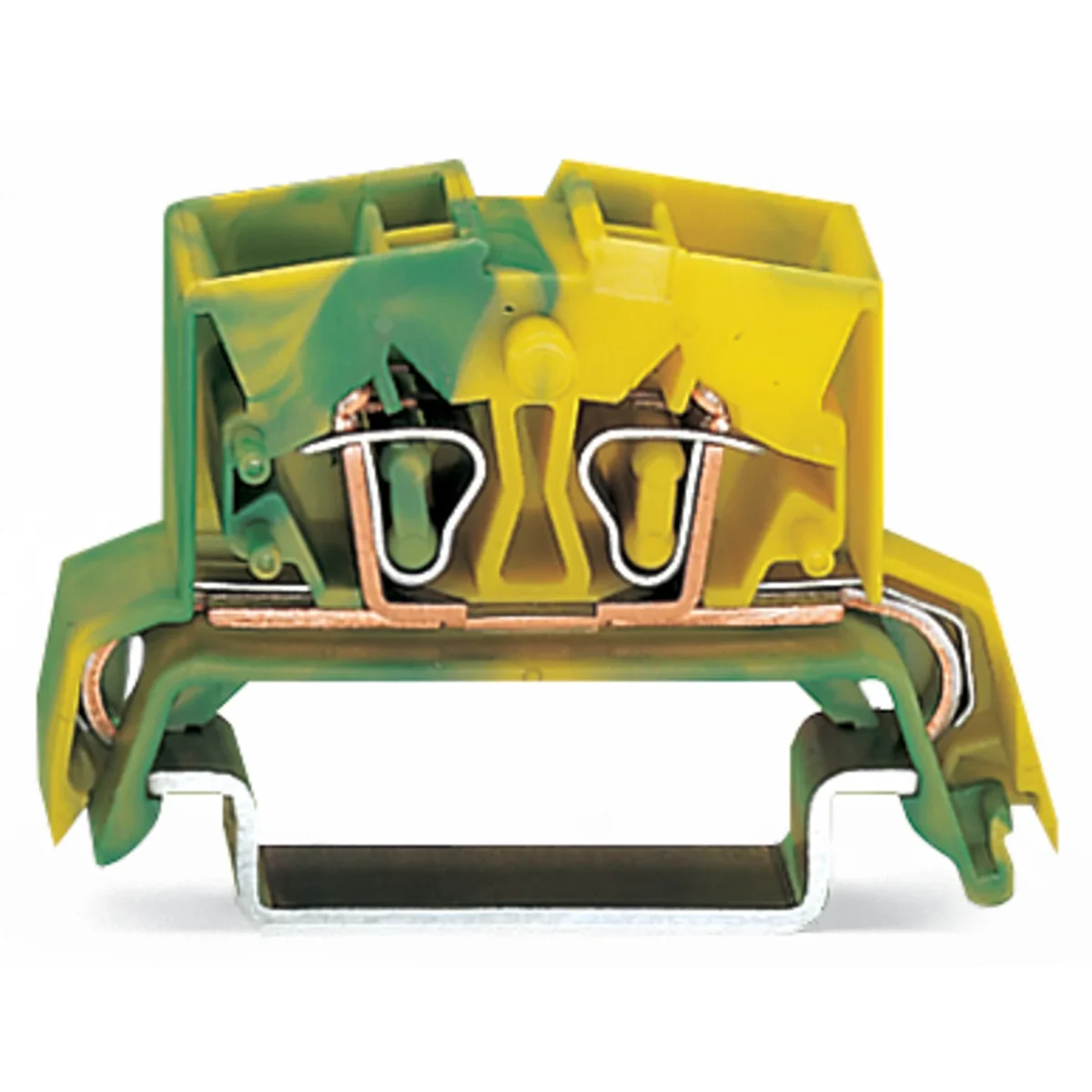

PE connector 4-wire 2.5 mm2 yellow-green 264-737

Index local:
TEB244WAGO
Numéro de catalogue:
264-737
Code EAN:
4044918451956
Producteur: WAGO ELWAG
Depth [mm]: 46.5
Color: Yellow-green
Series: 264
Prix:
2,16 €
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
jusqu'à 4 semaines (jours ouvrables)
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter au presse-papiers
Imprimer

Description du produit

PE connector 4-wire 2.5 mm2 yellow-green

Données techniques

  • Depth [mm]
    46.5
  • Series
    264
  • Height [mm]
    24.5
  • Number of connectors
    4
  • Color
    Yellow-green
  • Width [mm]
    10
  • Accurate color
    Yellow-green

Autres données techniques

  • PEN function possible
    Yes
  • Connectable conductor cross section fine-strand with cable end sleeve
    0.25 ... 1.5 mm²
  • Connectable conductor cross section multi-wired
    0.08 ... 2.5 mm²
  • Type of electrical connection 2
    Spring clamp connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    10 mm
  • Length
    46.5 mm
  • Colour
    Green/yellow
  • Connectable conductor cross section fine-strand without cable end sleeve
    0.08 ... 2.5 mm²
  • Connectable conductor cross section solid-core
    0.08 ... 2.5 mm²
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Atop
  • Number of clamp positions per level
    4
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    24.5 mm
  • Closing plate required
    Yes

Détails du fabricant

  • Producteur
    WAGO GmbH & Co. KG
  • Adresse
    32423 Minden Hansastraße 27 Niemcy

Emballage en vrac

Une sorte de paquet Karton
Quantité 100 pcs.
poids (kg) 0,961
Volume (m3) 0,003
Largeur (m) 0,125
Longueur (m) 0,190
Profondeur (m) 0,120
