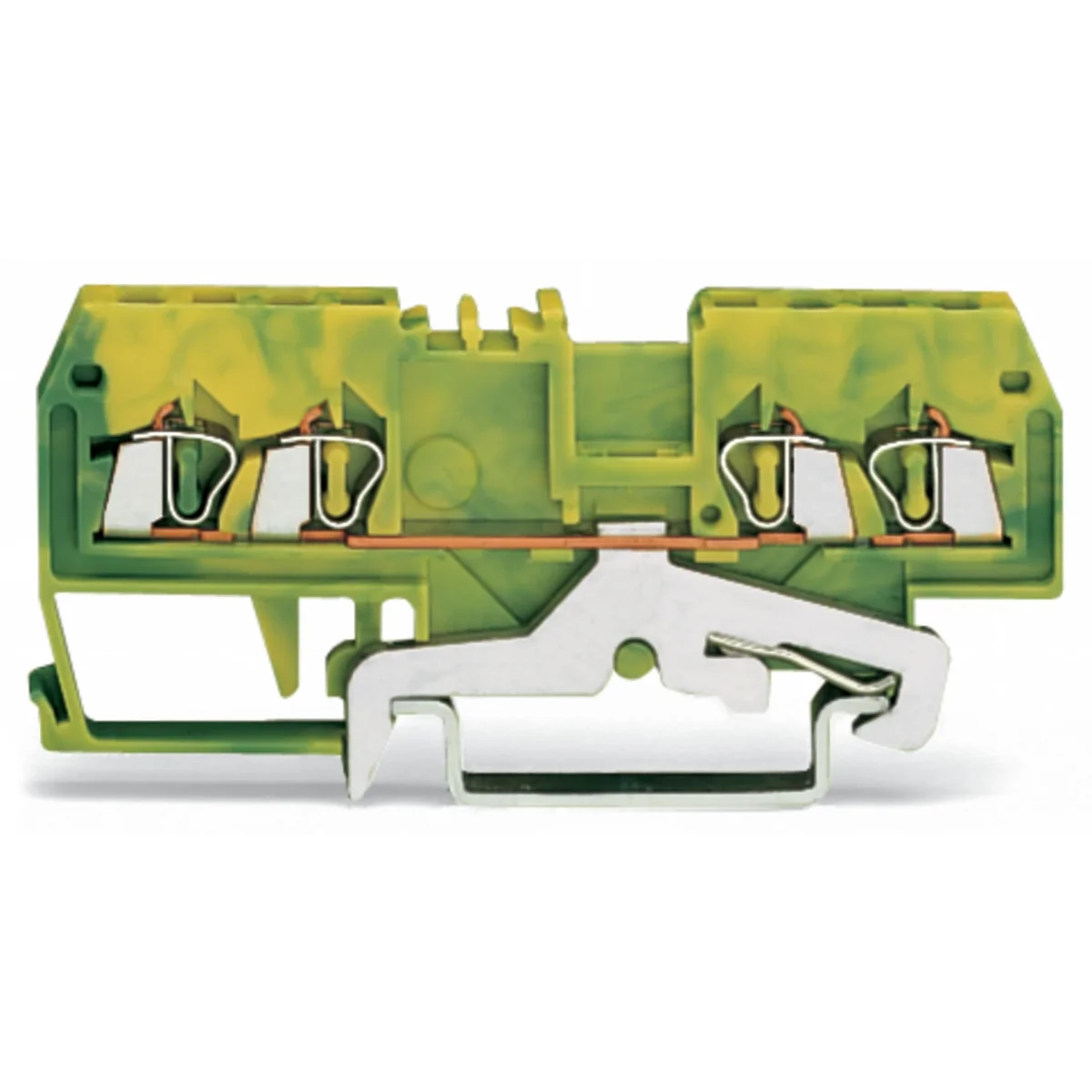

PE connector 4-wire 1.5mm² yellow-green 279-837

Indice locale:
TEB003WAGO
Numero di catalogo:
279-837
Codice EAN:
4045454084455
Produttore: WAGO ELWAG
Color: Yellow-green
Number of potentials: 1
Installation: On the TH-35 rail
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Prezzo:
2,23 €
gross / pezzi
(inclusa IVA 23%)
Prezzo più basso da 30 giorni prima dello sconto: 6,41 € gross -4,18 €
Prezzo base: 6,73 € gross
Consegna in 3 ore
Accessibile 88 pezzi
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

4-wire protective conductor connector

Dati tecnici

  • Color
    Yellow-green
  • Installation
    On the TH-35 rail
  • Series
    279
  • Accurate color
    Yellow green
  • Number of potentials
    1
  • Gauge [AWG]
    28 - 16
  • How to install the cable
    CAGE CLAMP
  • Number of connectors
    4

Altri dati tecnici

  • PEN function possible
    Yes
  • Connectable conductor cross section solid-core
    0.08 ... 1.5 mm²
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Atop
  • Number of clamp positions per level
    4
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    27 mm
  • Closing plate required
    Yes
  • Connectable conductor cross section fine-strand without cable end sleeve
    0.08 ... 1.5 mm²
  • Connectable conductor cross section multi-wired
    0.08 ... 1.5 mm²
  • Type of electrical connection 2
    Spring clamp connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    4 mm
  • Length
    73 mm
  • Colour
    Green/yellow

Dettagli del produttore

  • Produttore
    WAGO GmbH & Co. KG
  • Indirizzo
    32423 Minden Hansastraße 27 Niemcy

Imballaggio sfuso

Una specie di pacchetto Karton
Quantità 100 pezzi
Peso (kg) 1,048
Volume (m3) 0,002
Larghezza (m) 0,155
Lunghezza (m) 0,275
Profondità (m) 0,043
