Click on the photo to enlarge

WAGO ELWAG

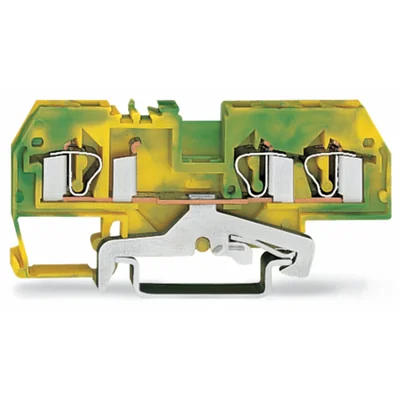

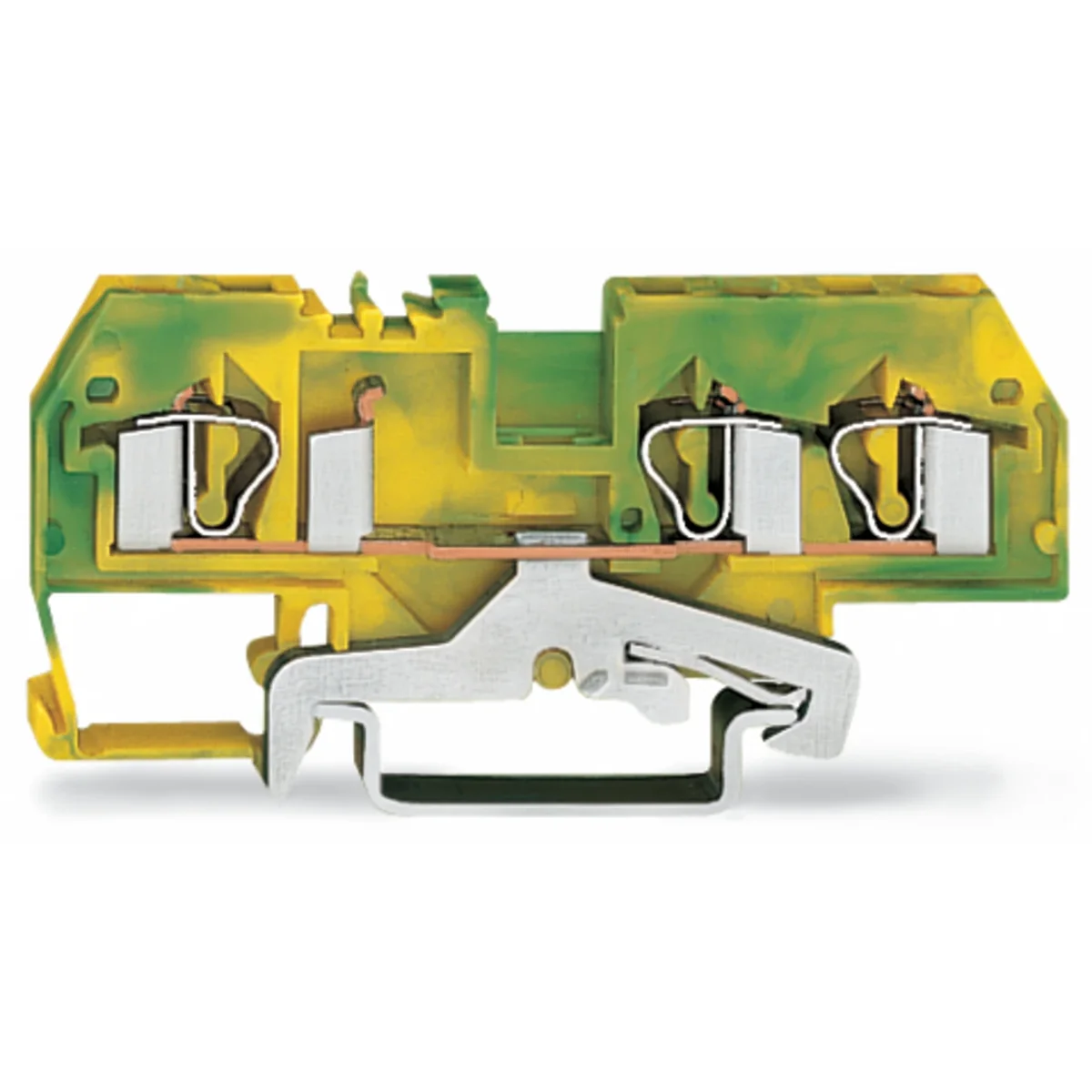

PE connector 3-wire 4mm² yellow-green 281-687

local index:
TEB286WAGO
Catalog No:
281-687
EAN code:
4045454100193
Price:
203,20 €
gross / pkg.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,70 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pkg.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

3-wire protective conductor connector.

Technical data

  • Color
    Yellow-green
  • Clamp type
    CAGE CLAMP
  • Pieces in the package
    50
  • Accurate color
    Yellow-green
  • Gauge [AWG]
    2014-12-28 00:00:00
  • Series
    281
  • Weight [g]
    15,973

Other technical data

  • PEN function possible
    yes
  • Connectable conductor cross section solid-core
    0.08 ... 4 mm²
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Atop
  • Number of clamp positions per level
    4
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    29 mm
  • Closing plate required
    yes
  • Connectable conductor cross section fine-strand without cable end sleeve
    0.08 ... 4 mm²
  • Connectable conductor cross section multi-wired
    0.08 ... 4 mm²
  • Type of electrical connection 2
    Spring clamp connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    6 mm
  • Length
    73.5 mm
  • Colour
    Green/yellow
