PE connector 3-wire 4mm² yellow-green 281-637

local index:
TEB240WAGO
Catalog No:
281-637
EAN code:
4045454084516
Manufacturer: WAGO ELWAG
Color: Yellow-green
Number of potentials: 1
Gauge [AWG]: 2014-12-28 00:00:00
Price:
403,90 €
gross / pkg.
(including VAT 23%)
4,04 € gross/pcs.
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

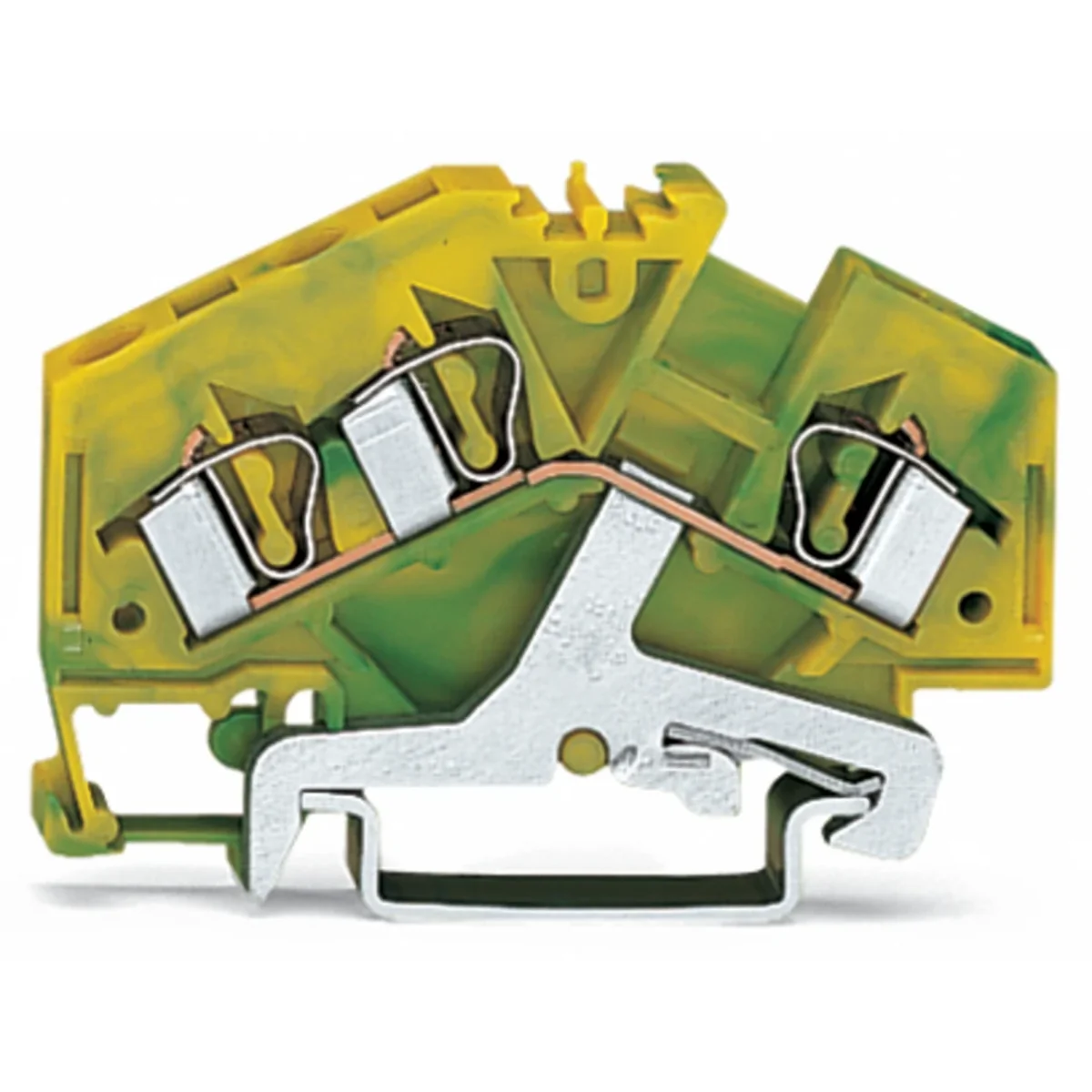

3-wire protective conductor connector.

Technical data

  • Color
    Yellow-green
  • Gauge [AWG]
    2014-12-28 00:00:00
  • Series
    281
  • Pieces in the package
    100
  • Accurate color
    Yellow green
  • Number of potentials
    1
  • Clamp type
    CAGE CLAMP
  • How to install the cable
    Angular
  • Weight [g]
    15.609
  • Number of connectors
    3

Other technical data

  • PEN function possible
    Yes
  • Connectable conductor cross section solid-core
    0.08 ... 4 mm²
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Inclined
  • Number of clamp positions per level
    3
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    37 mm
  • Closing plate required
    Yes
  • Connectable conductor cross section fine-strand without cable end sleeve
    0.08 ... 4 mm²
  • Connectable conductor cross section multi-wired
    0.08 ... 4 mm²
  • Type of electrical connection 2
    Spring clamp connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    6 mm
  • Length
    61.5 mm
  • Colour
    Green/yellow

Bulk packaging

A kind of package Karton
Quantity 1 pkg.
Weight (kg) 1,650
Volume (m3) 0,003
Width (m) 0,103
Length (m) 0,353
Depth (m) 0,072
