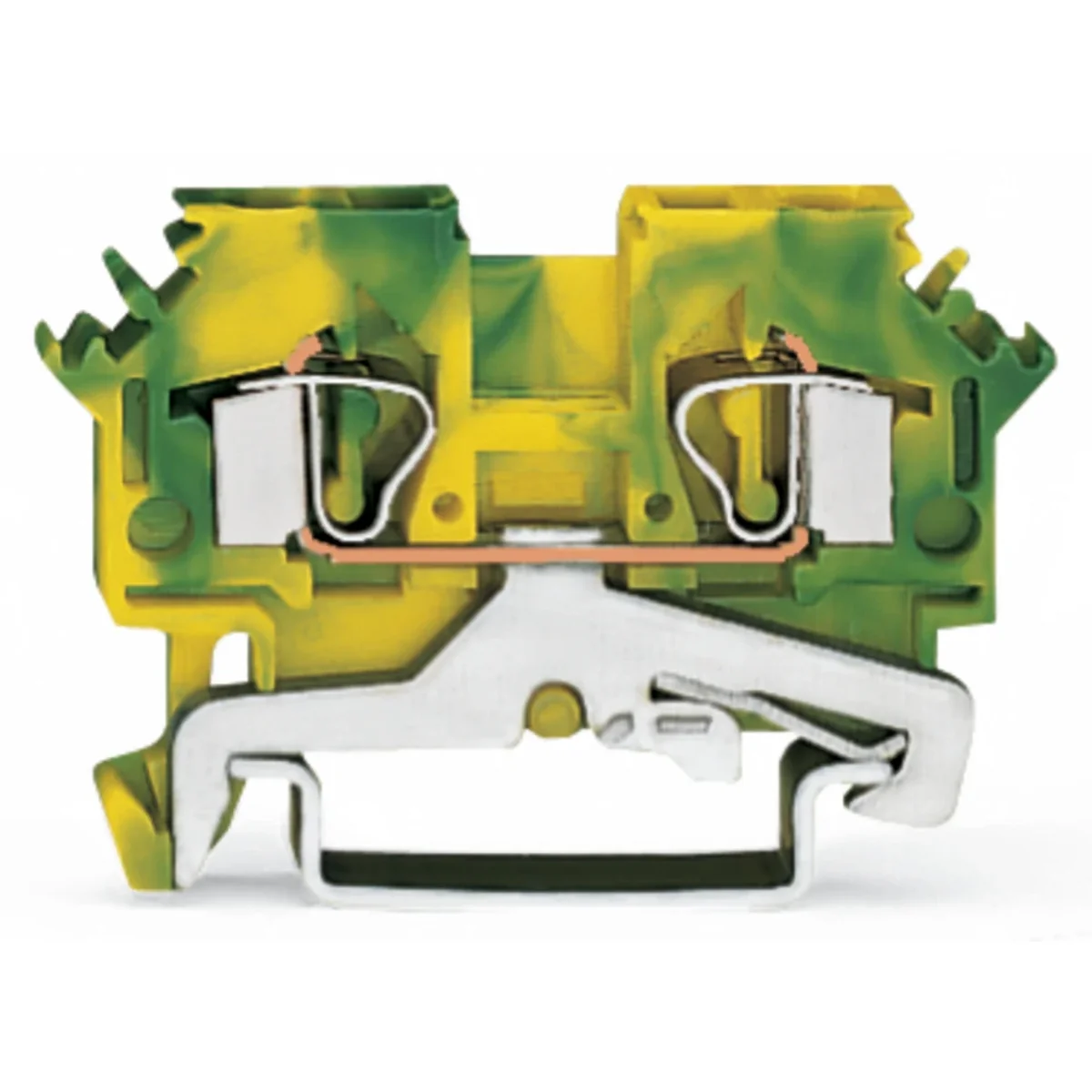

PE connector 2-wire 4mm² yellow-green 281-607
local index:
TEG007WAGO
Catalog No:
281-607
EAN code:
4044918511971
Manufacturer:
WAGO ELWAG
Product group: 1 (strip terminal blocks)
Color: Yellow-green
Number of potentials: 1
Price:
176,14 €
gross / pkg.
(including VAT 23%)
3,52 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
2-wire protective conductor connector
Technical data
-
Product group1 (strip terminal blocks)
-
Number of potentials1
-
Clamp typeCAGE CLAMP
-
How to install the cableFront mounting
-
Weight [g]11.78
-
Number of connectors2
-
ColorYellow-green
-
Gauge [AWG]2014-12-28 00:00:00
-
Series281
-
Pieces in the package50
-
Accurate colorYellow-green
Other technical data
-
PEN function possibleYes
-
Connectable conductor cross section solid-core0.08 ... 4 mm²
-
Type of electrical connection 1Spring clamp connection
-
Connection positionAtop
-
Number of clamp positions per level2
-
Material insulation bodyThermoplastic
-
Inflammability class of insulation material according to with UL94V0
-
Wysokość przy najniższym sposobie montażu29 mm
-
Closing plate requiredYes
-
Connectable conductor cross section fine-strand without cable end sleeve0.08 ... 4 mm²
-
Connectable conductor cross section multi-wired0.08 ... 4 mm²
-
Type of electrical connection 2Spring clamp connection
-
Number of levels1
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Operating temperature105 ... 105 °C
-
Width/grid dimension6 mm
-
Length53 mm
-
ColourGreen/yellow
Manufacturer details
-
ManufacturerWAGO GmbH & Co. KG
-
Address32423 Minden Hansastraße 27 Niemcy
-
E-mail
Bulk packaging
| A kind of package | Karton |
| Quantity | 1 pkg. |
| Weight (kg) | 0,640 |
| Volume (m3) | 0,000 |
| Width (m) | 0,070 |
| Length (m) | 0,330 |
| Depth (m) | 0,038 |
