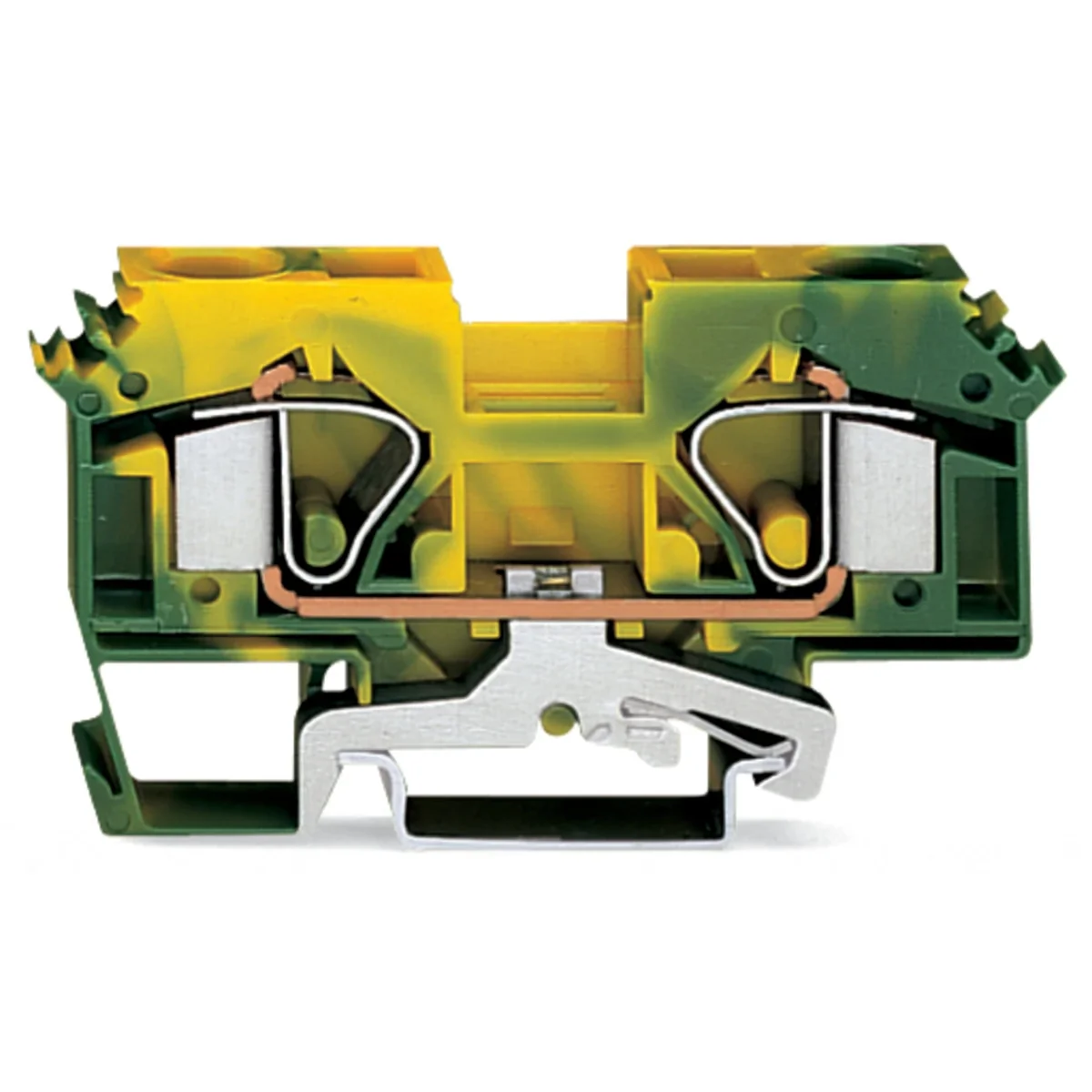

PE connector 2-wire 16mm² yellow-green 283-607

local index:
TEB036WAGO
Catalog No:
283-607
EAN code:
4045454084547
Manufacturer: WAGO ELWAG
Color: Yellow-green
Gauge [AWG]: 2014-06-24 00:00:00
Clamp type: CAGE CLAMP
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
2,96 €
gross / pcs.
(including VAT 23%)
73,72 € gross/kg.
Last lowest price: 2,96 € gross
Base price: 10,02 € gross -70%
Delivery in 3h
Accessible 44 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

2-wire protective conductor connector.

Technical data

  • Color
    Yellow-green
  • Clamp type
    CAGE CLAMP
  • How to install the cable
    Front mounting
  • Accurate color
    Yellow green
  • Gauge [AWG]
    2014-06-24 00:00:00
  • Series
    283
  • Weight [g]
    40.152

Other technical data

  • PEN function possible
    Yes
  • Connectable conductor cross section solid-core
    0.2 ... 16 mm²
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Atop
  • Number of clamp positions per level
    2
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    37.5 mm
  • Closing plate required
    Yes
  • Connectable conductor cross section fine-strand without cable end sleeve
    0.2 ... 16 mm²
  • Connectable conductor cross section multi-wired
    0.2 ... 16 mm²
  • Type of electrical connection 2
    Spring clamp connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    12 mm
  • Length
    80 mm
  • Colour
    Green/yellow

Bulk packaging

A kind of package Karton
Quantity 25 pcs.
Weight (kg) 1,146
Volume (m3) 0,001
Width (m) 0,095
Length (m) 0,320
Depth (m) 0,047
