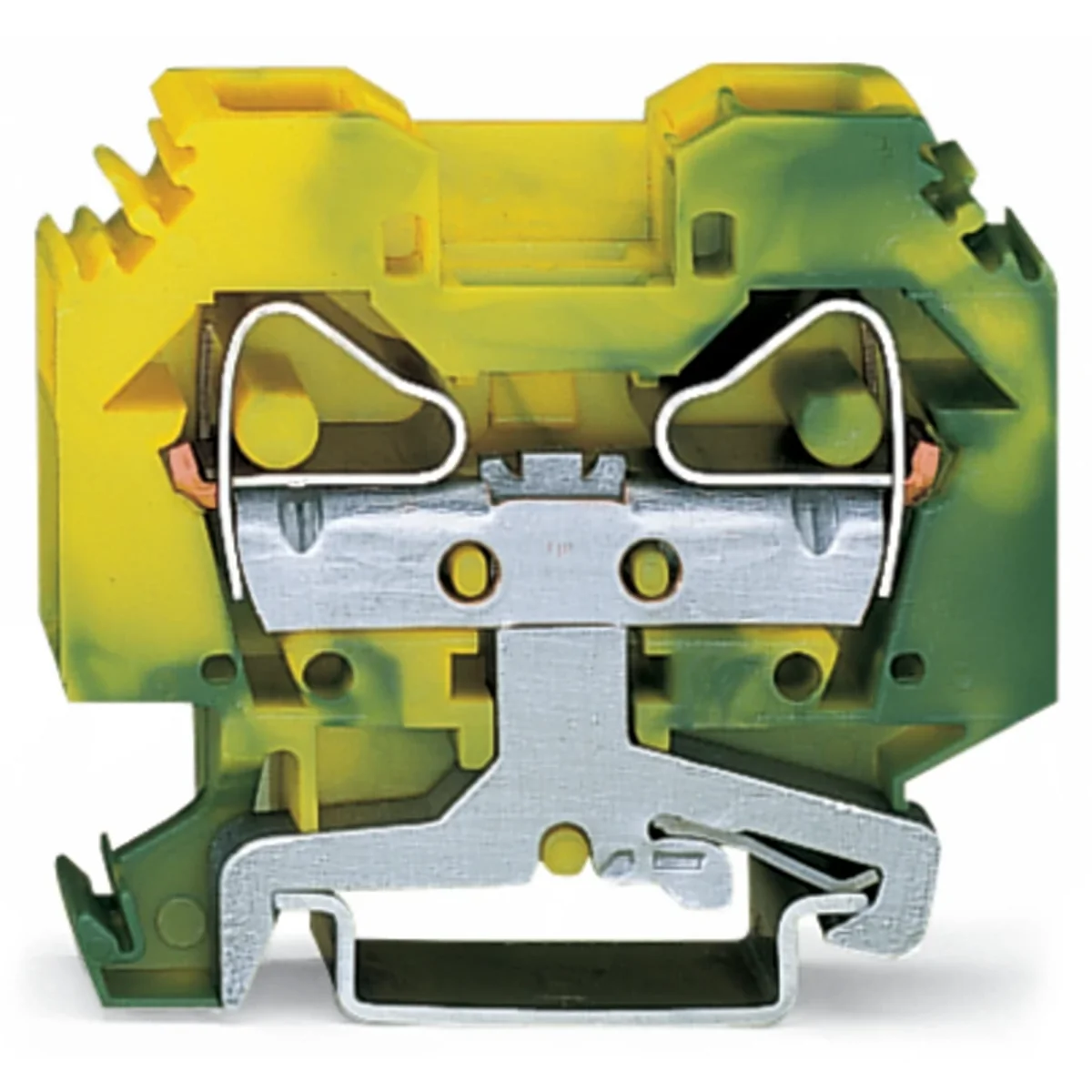

PE connector 2-wire 16mm² 283-107
local index:
TEB237WAGO
Catalog No:
283-107
EAN code:
4044918551991
Manufacturer:
WAGO ELWAG
Color: Yellow-green
Gauge [AWG]: 2014-06-24 00:00:00
Clamp type: CAGE CLAMP
Price:
2,95 €
gross / pcs.
(including VAT 23%)
70,23 € gross/kg.
Last lowest price:
9,34 € gross
Price history for this product
1. 2,95 € gross / pcs.
2. Last lowest price:
9,34 €
3. Base price:
9,70 €
-70%
1. How much does this product cost today
2. Lowest price in the last 30 days
3. The base price of the product
Base price:
9,70 € gross
-70%
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print
Ask about the product
Product description
2-wire feed-through terminal.
Technical data
-
ColorYellow-green
-
Clamp typeCAGE CLAMP
-
How to install the cableFront mounting
-
Accurate colorYellow green
-
Gauge [AWG]2014-06-24 00:00:00
-
Series283
-
Weight [g]42.004
Other technical data
-
PEN function possibleYes
-
Connectable conductor cross section solid-core0.2 ... 16 mm²
-
Type of electrical connection 1Spring clamp connection
-
Connection positionSideways
-
Number of clamp positions per level2
-
Material insulation bodyThermoplastic
-
Inflammability class of insulation material according to with UL94V0
-
Wysokość przy najniższym sposobie montażu45.5 mm
-
Closing plate requiredYes
-
Connectable conductor cross section fine-strand without cable end sleeve0.2 ... 16 mm²
-
Connectable conductor cross section multi-wired0.2 ... 16 mm²
-
Type of electrical connection 2Spring clamp connection
-
Number of levels1
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Operating temperature105 ... 105 °C
-
Width/grid dimension12 mm
-
Length58 mm
-
ColourGreen/yellow
Manufacturer details
-
ManufacturerWAGO ELWAG Sp. z o.o.
-
Address50-506 Wrocław Piękna 58A
-
E-mail
-
Tax identification number8961025689
-
GLN4017332000000
Bulk packaging
| A kind of package | Karton |
| Quantity | 50 pcs. |
| Weight (kg) | 2,125 |
| Volume (m3) | 0,003 |
| Width (m) | 0,134 |
| Length (m) | 0,285 |
| Depth (m) | 0,072 |
