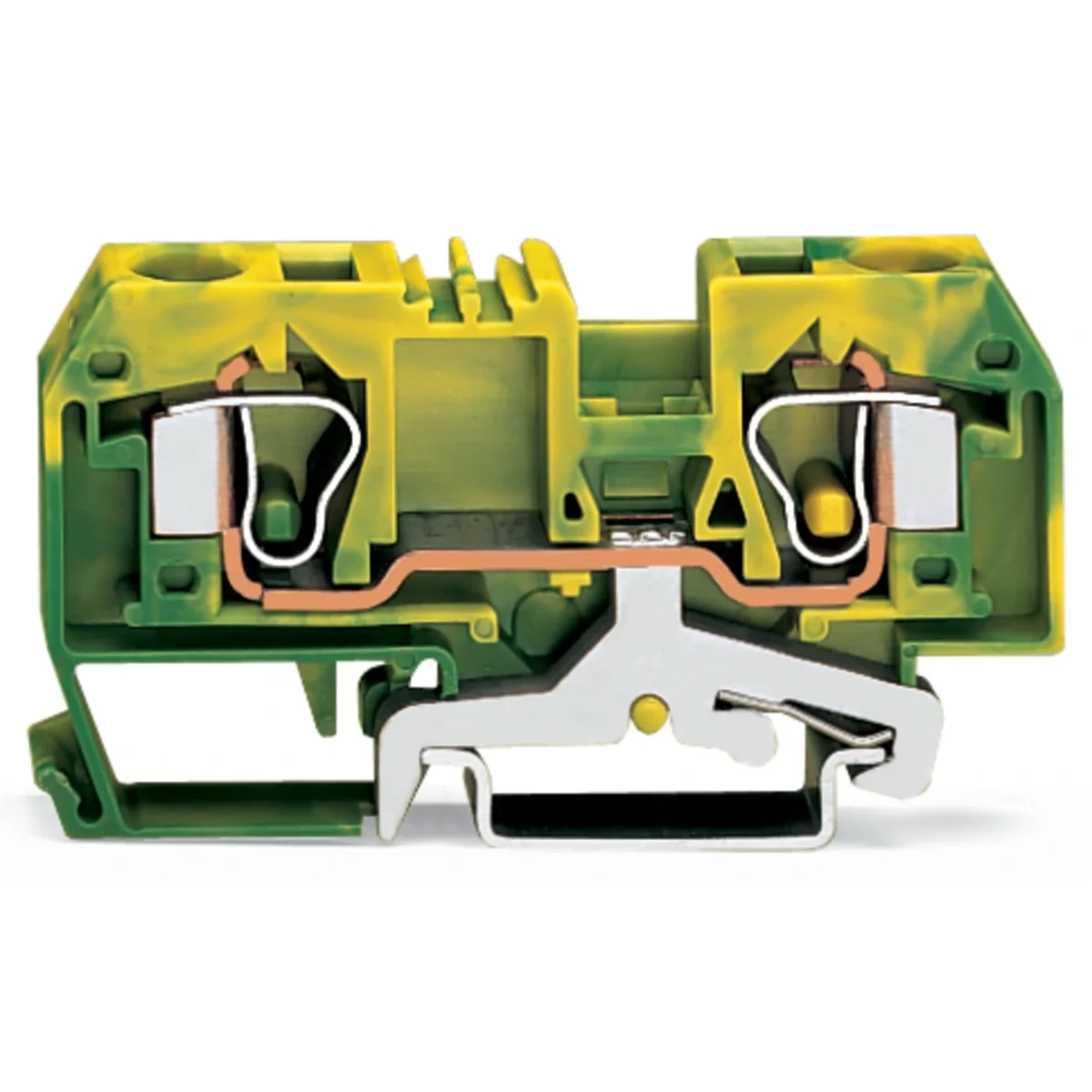

PE connector 2-wire 10mm² yellow-green 25pcs 284-907

local index:
TEB272WAGO
Catalog No:
284-907
EAN code:
4045454084646
Manufacturer: WAGO ELWAG
Color: Yellow-green
Number of potentials: 1
Gauge [AWG]: 2014-08-24 00:00:00
Price:
126,94 €
gross / pkg.
(including VAT 23%)
5,08 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

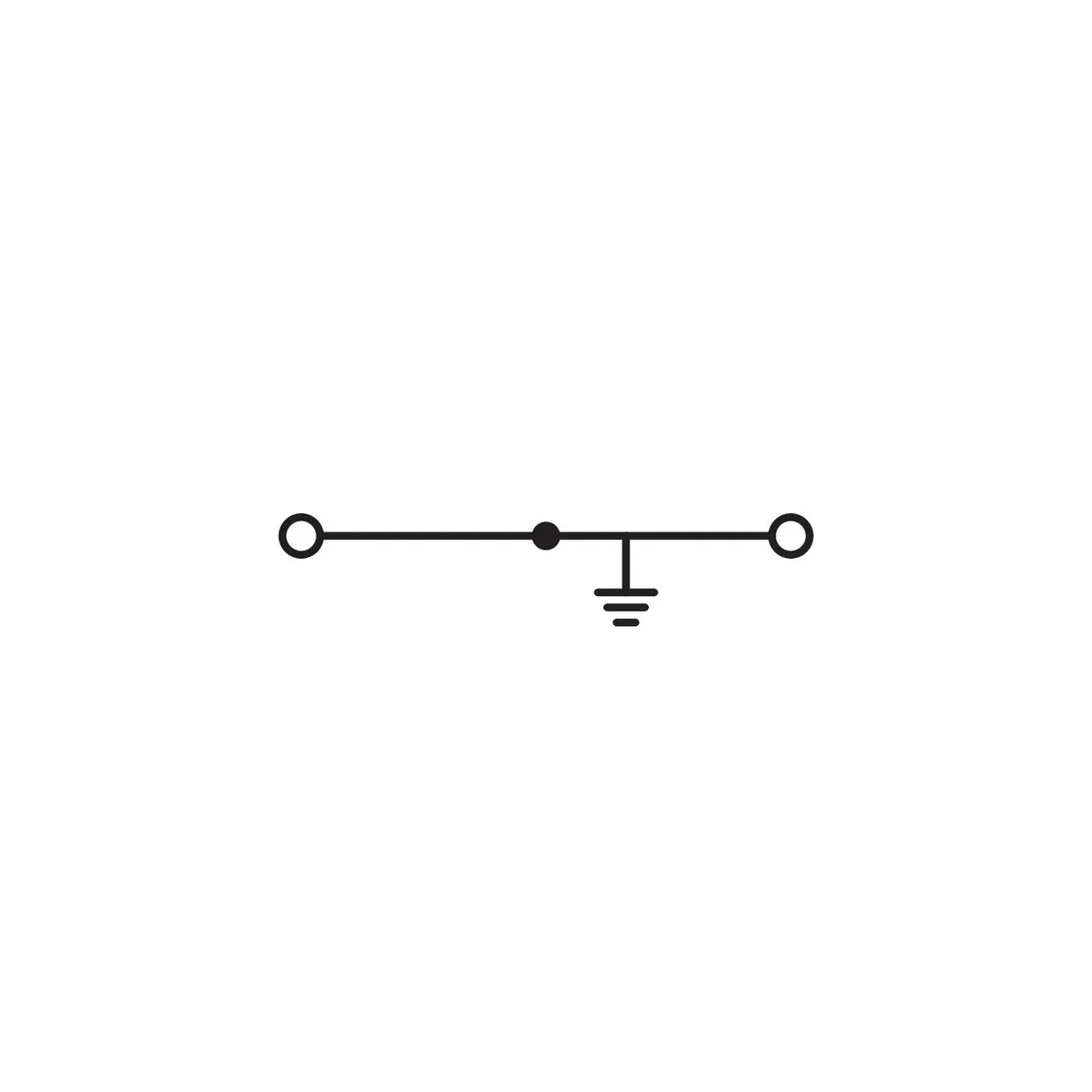

2-wire protective conductor connector

Technical data

  • Color
    Yellow-green
  • Gauge [AWG]
    2014-08-24 00:00:00
  • Series
    284
  • Pieces in the package
    25
  • Number of connectors
    2
  • Number of potentials
    1
  • Clamp type
    CAGE CLAMP
  • How to install the cable
    Front mounting
  • Accurate color
    Yellow-green

Other technical data

  • PEN function possible
    Yes
  • Connectable conductor cross section solid-core
    0.2 ... 10 mm²
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Atop
  • Number of clamp positions per level
    2
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    35 mm
  • Closing plate required
    Yes
  • Connectable conductor cross section fine-strand without cable end sleeve
    0.2 ... 10 mm²
  • Connectable conductor cross section multi-wired
    0.2 ... 10 mm²
  • Type of electrical connection 2
    Spring clamp connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    10 mm
  • Length
    78 mm
  • Colour
    Green/yellow

Bulk packaging

A kind of package Karton
Quantity 1 pkg.
Weight (kg) 0,848
Volume (m3) 0,002
Width (m) 0,114
Length (m) 0,274
Depth (m) 0,056
