OBL 25/10-4 coupling R35RW-01040000603
local index:
TEG055ERGO
Catalog No:
R35RW-01040000603
Price:
33,86 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

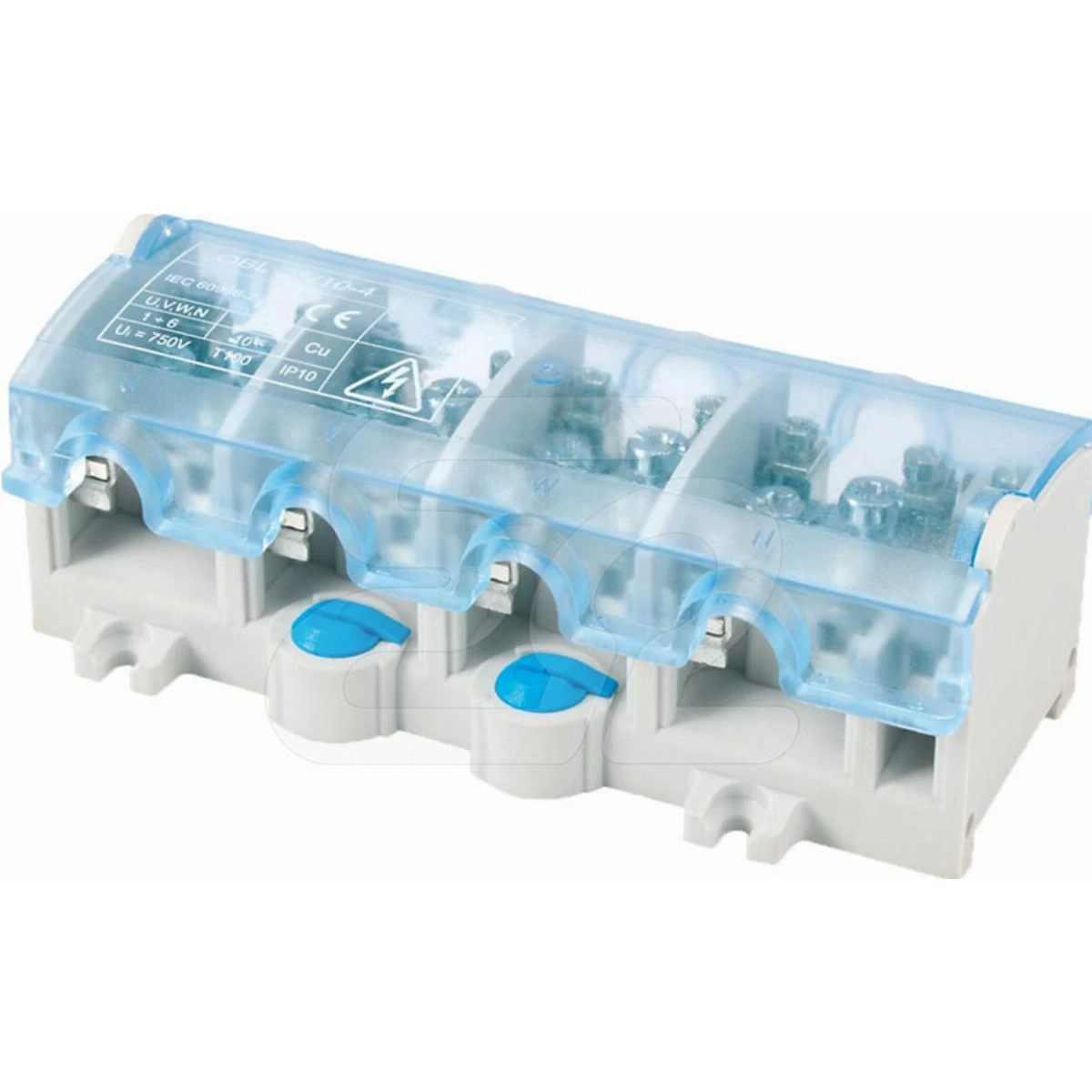

OBL 25/10-4 coupling
Technical data
-
Gross length0.06
-
Gross width0.03
-
PKWIU27.33.13.0
-
short nameOBL 25/10-4
-
Gross height0.03
Other technical data
-
Drill hole distance centrically115 mm
-
Connectable conductor cross section fine-strand without cable end sleeve6 ... 25 mm²
-
Connectable conductor cross section solid-core6 ... 25 mm²
-
Rated current In101 A
-
Type of electrical connection 1Screw connection
-
Number of poles4
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Operating temperature-25 ... 100 °C
-
Closing plate requiredNo
-
TransparentNo
-
Explosion-tested version 'Ex e'No
-
Connectable conductor cross section fine-strand with cable end sleeve6 ... 25 mm²
-
Connectable conductor cross section multi-wired6 ... 25 mm²
-
Rated voltage750 V
-
Type of electrical connection 2Screw connection
-
Number of clamp positions per pole5
-
Material insulation bodyOther
-
Inflammability class of insulation material according to with UL94Other
-
ColourMulti-coloured
Manufacturer details
-
ManufacturerERGOM Zakład Aparatury Elektrycznej Sp. z o.o.
-
Address94-102 Łódź Nowe Sady 10
-
Phone number
-
E-mail
-
Tax identification number7260129071
-
GLN5900009930221
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 10 pcs. |
| Weight (kg) | 0,280 |
