NSY connectors, 3-level 6-point screw terminal 2.5mm2 NSYTRV26T

Name: NSY connectors, 3-level 6-point screw terminal 2.5mm2
Brand: SCHNEIDER ELECTRIC
SKU: TEB001SCHN
Price: 17.63 PLN
Availability: BackOrder

local index:

TEB001SCHN

Catalog number:

NSYTRV26T

EAN code:

3606480531880

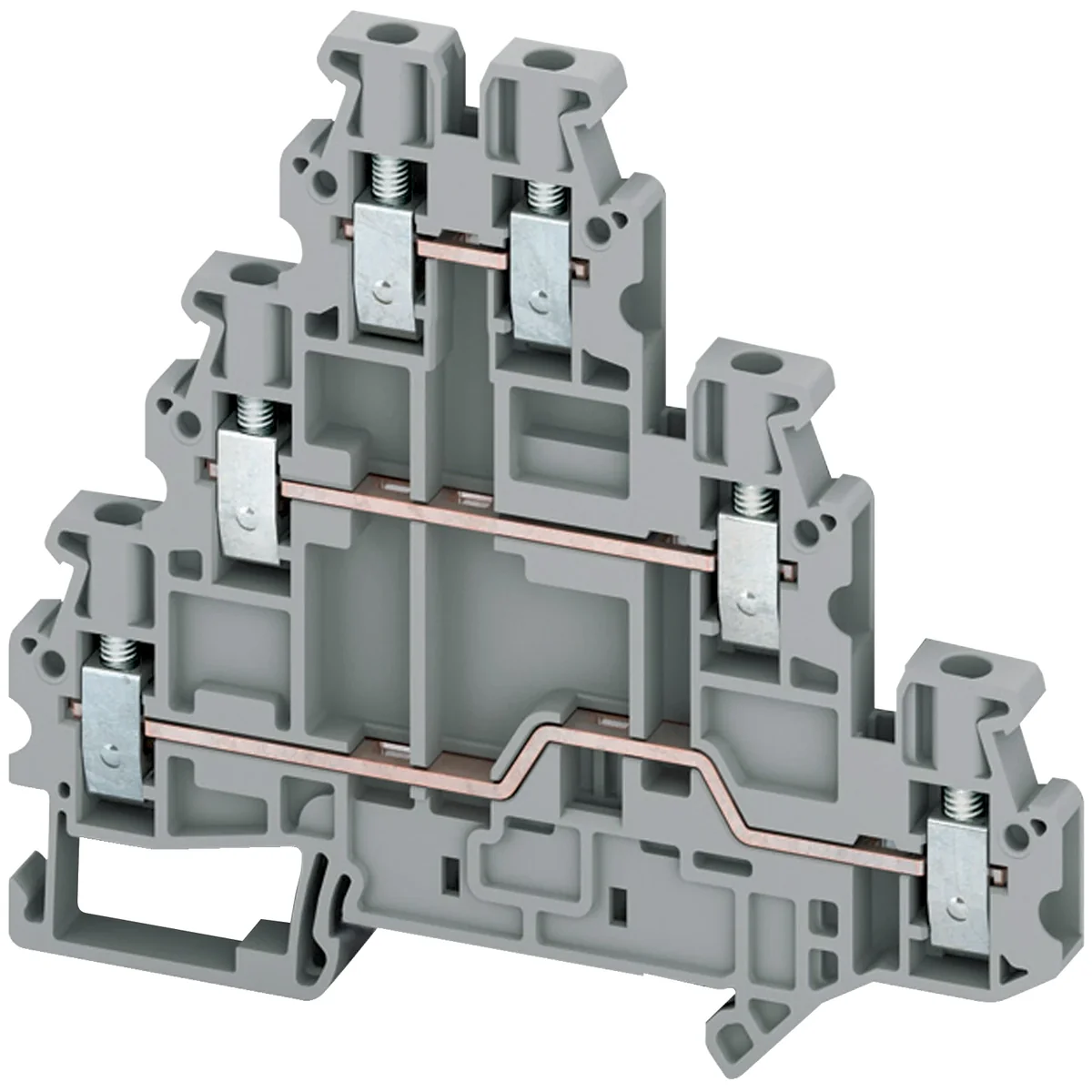

NSY connectors, 3-level 6-point screw terminal 2.5mm2

Click on the photo to enlarge

Manufacturer: SCHNEIDER ELECTRIC

Price:

17,63 zł

gross / pcs.

(including VAT 23%)

2 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Technical data Manufacturer details Files to download

Technical data

Other technical data

Connectable conductor cross section fine-strand without cable end sleeve

0.14 ... 4 mm²
Connectable conductor cross section solid-core

0.14 ... 4 mm²
Rated current In

20 A
Type of electrical connection 1

Screw connection
Number of levels

3
Mounting method

DIN rail (top hat rail) 35 mm
Operating temperature

-40 ... 130 °C
Width

5.2 mm
Depth

90 mm
Closing plate required

Yes
Internally connected stages

No

Connectable conductor cross section fine-strand with cable end sleeve

0.2 ... 2.5 mm²
Connectable conductor cross section multi-wired

0.14 ... 4 mm²
Rated voltage

500 V
Type of electrical connection 2

Screw connection
Number of clamp positions per level

2
Material insulation body

Thermoplastic
Inflammability class of insulation material according to with UL94

V0
Height

77.5 mm
Explosion-tested version 'Ex e'

No
Colour

Grey
