N+PE strip LZ-8 47.108
local index:
TEG005ELOP
Catalog No:
47.108
EAN code:
5905548287270
Manufacturer:
ELEKTRO-PLAST OPATÓWEK
Terminals [mm²]: 9x(1.5-16)
Price:
2,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

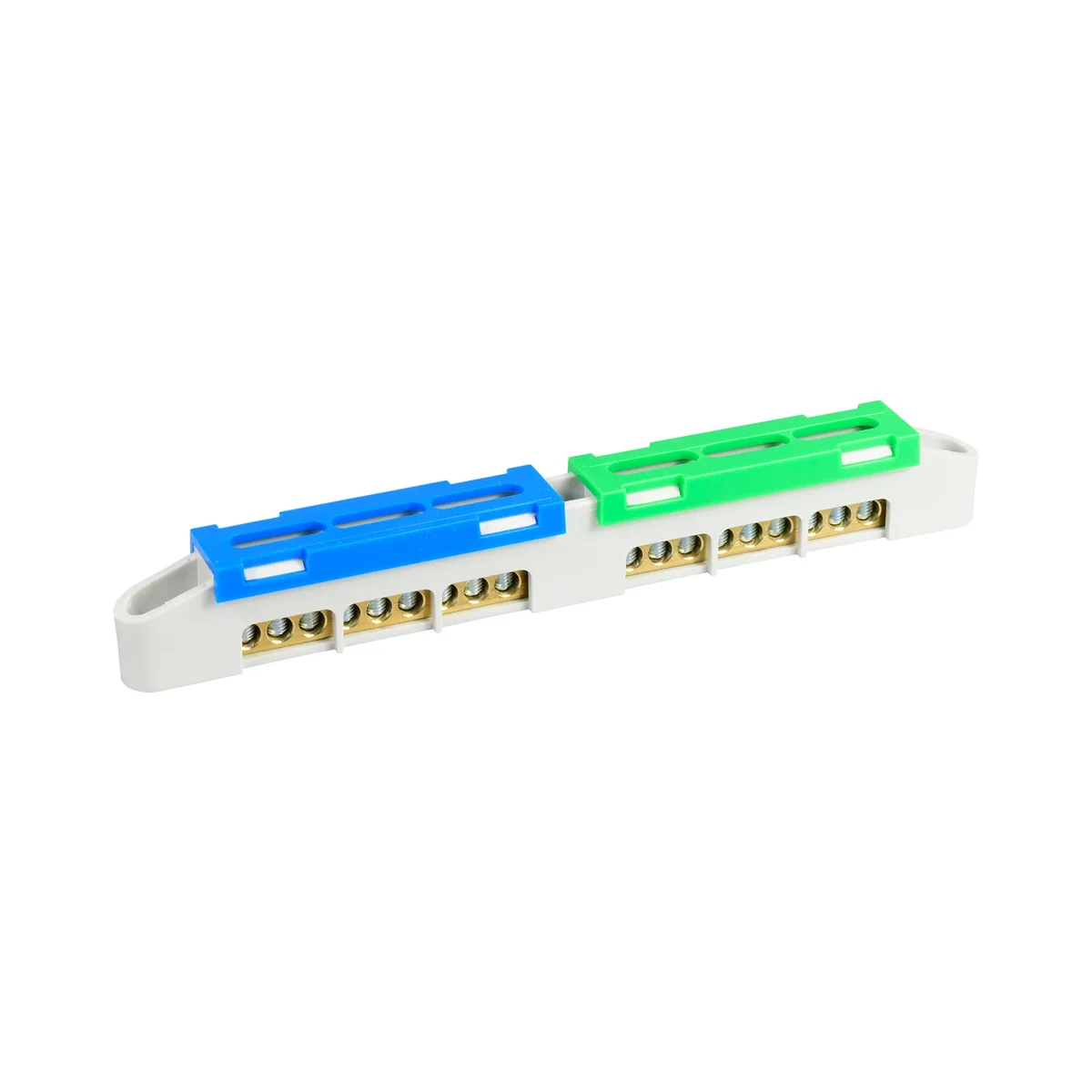

N+PE strip LZ-8
Technical data
-
Terminals [mm²]9x(1.5-16)
-
PKWIU27.12.40.0
Other technical data
-

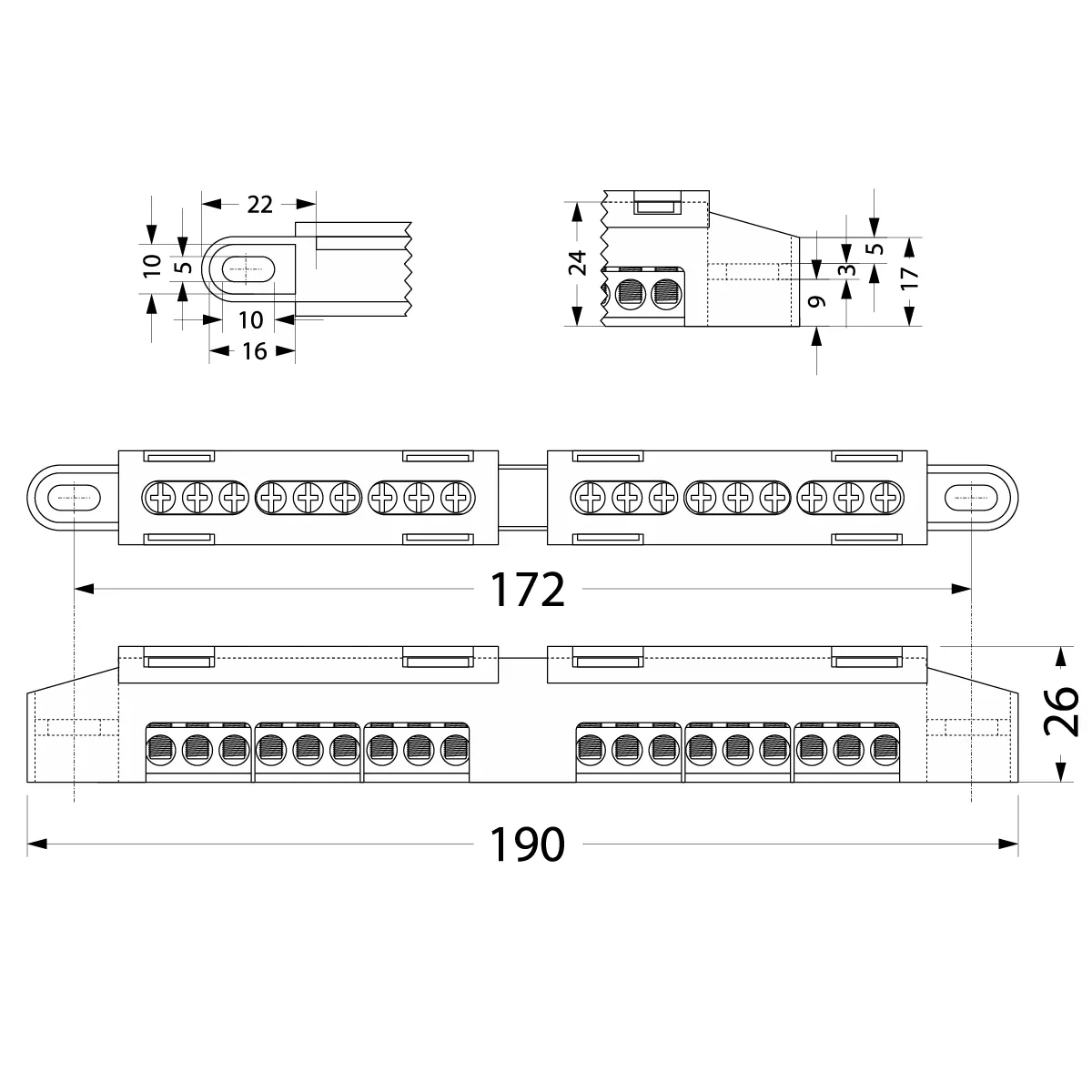

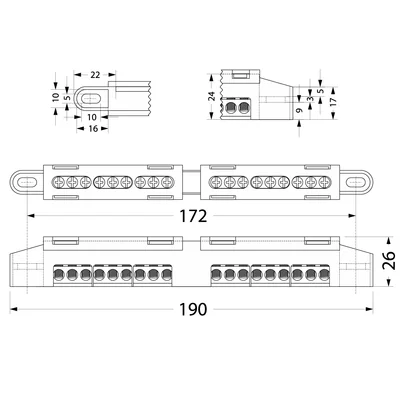

Drill hole distance centrically172 mm
-
Connectable conductor cross section fine-strand with cable end sleeve1.5 ... 16 mm²
-
Rated current In120 A
-
Type of electrical connection 1Screw connection
-
Number of poles2
-
Mounting methodDirect mounting
-
Operating temperature-20 ... 60 °C
-
Width190 mm
-
Depth18 mm
-
ColourOther
-
Explosion-tested version 'Ex e'No
-
Connectable conductor cross section solid-core1.5 ... 16 mm²
-
Rated voltage500 V
-
Type of electrical connection 2Screw connection
-
Number of clamp positions per pole9
-
Material insulation bodyThermoplastic
-
Halogen freeYes
-
Height26 mm
-
Closing plate requiredYes
-
TransparentNo
Manufacturer details
-
ManufacturerZ.P.H. ELEKTRO-PLAST Sp. z o.o.
-
Address62-860 Opatówek Rogatka 14 Polska
-
